36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure

36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Material
    PP+ GF (Glass Fiber)
  • Color
    Black
  • Ip Grade
    IP65
  • Mounting Method
    Wall Mount / Pole Mount
  • Cable Port
    2 In 2 Out, 8 Ports For Fast Connectors With Drop Cable
  • Max Fusion
    3 Splice Tray, Each 12 Cores
  • Box Type
    1x8 Splitter Closure
  • Max. Splitter
    1 To 8 Fiber Optic Splice Box
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    GJS-2008
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc / box, 4pcs / master box
  • Delivery Time
    10-15days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram

36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure

36 Cores 2in 2out Inline Fiber Optic Cable Splice Closure with 8 Port SC Fast Connector Pole Mount



GJS-2008 36CORES fiber optic splice closure is quick installed and reliable sealed closure. With engineering plastic in scientific formula, injection-molding, and excellent mechanical strength, it can prevent aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant, waterproof,anti-vibration and anti impact box, the closure could protect the optic cable joints from tensile, impact,bending,flattening, twisting, and axial compression. All the sealing accessories qualified in the viscosity and white ants resistance test. Reliable sealing performance, convenient for repeated use.



Specification

MODEL GJS-2008
Dimension 319*248*125 mm
Max capacity 36 cores
Splice tray quantity 3 pcs, each 12cores
Cable port 2in 2 out(8-12mm), 8 ports for SC standard adapters (2*3drop cable)
Material PP+GF; tray:ABS
Waterproof grade IP65
Color black
Installation method Wall mount, pole mount
Suitable for Ftth figure-8 cable or cable which can add SC connectors

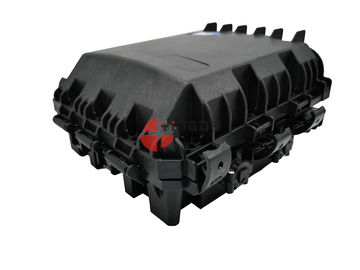

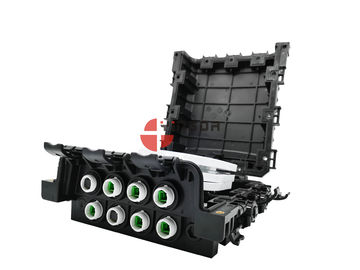

Optical Fiber Splice Closure OVERVIEW:

36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 036 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 1

36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 236 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 3
Application

1. Widely used to connect or branch the outdoor optic cable fibers in aerial/pole/wall applications.

    Fully Mechanical sealing and re-open design,
2. available for split with fast connectors without open the closure.
3. Provide optional valve and earthling rod. Simple inner structured and easy to installation,

    is the best choice for the network construction.

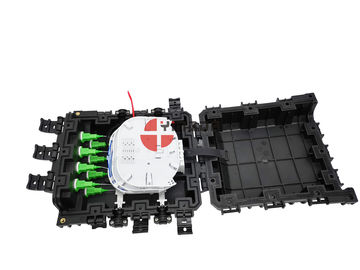

8 Port SC Splitter Cable Distribution Box in DETAILS:



36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 436 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 5

            Material mark: PP+ Glass fiber                                 Package: 1pc / cardboard box



36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 6  36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 7

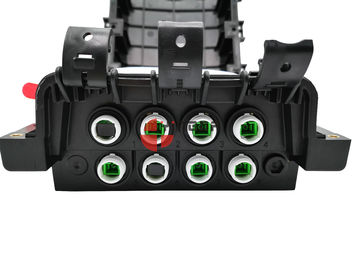

Cable port: in front 8 pcs SC adapter port, diameter:25mm; both sides each 2 round ports:8-12mm cable can meet.





36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 836 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 9

Lock: 3buckles at both sides to open and close.

SC adapter port is white and round, inside and outside is SC standard ports, bottom with enough sapce for cable wiring and storage.





36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 10       36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 11

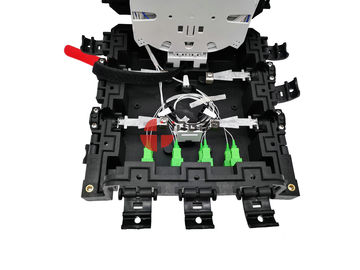

Splice tray: total 3 pcs, each 12cores to fusion single fiber, and steel tube fixtion slot and SC adapter slot.

large wiring area all around.


Technical Parameter

Working temperature -40ºC~+65ºC
Atmospheric Pressure 62-106kPa
Axial Tension > 1000N/1min
Stretching Resistance >2000N/10cm² (1min)
Flatten Pressure >2000N/100mm(1min)
Insulation Resistance >2 × 104MΩ
Voltage Strength 15KV(DC)/1min,no arcover or breakdown
Temperature Cycle -40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature.



How to use the box?



36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 12

36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 13



Standard accessories like below:

36 Cores 2 In 2out Inline Fiber Optic Cable Joint Box Pole Mount 1x8 Splitter Closure 14



We offer a series of 8 port, 16 ports SC fast connector exit, please click below for further information:

  •  mini 8 port splice closure for fast connector:



  • 16 port splice closure for fast connector:
