Fiber Cable Joint Box
Created with Pixso. PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure

PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure

Brand Name: yingda
Model Number: GJS-2018
MOQ: 100pcs
Price: negotiable
Payment Terms: Western Union, T/T
Detail Information
Place of Origin:
china
Certification:
ISO, SGS
Material:
PP
Color:
Black
Size:
600*162*81mm
Cable Port:
4in 4out, 16pcs Drop Cable 2*3mm
Cable Diameter:
8-16mm
Adapter Qty:
9pcs Or 16pcs SC SIMPLEX Coupler
Splitter Qty:
2pc 1x8 Or 1pc 1x16
Packaging Details:
1pcs / inner box, 20pcs / carton box
Supply Ability:
20k pcs per month
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

PP IP65 Aerial Mount 1*8 Mini Splitter 48 Cores Fiber Optic Splice Splitter Closure





GJS-2018 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.



Features:

  • The closure adopts horizontal mechanical sealing and advanced internal structure design.
  • It can be installed two 1:8 Blockless PLC splitter or one 1:16 Blockless PLC splitter.
  • 4 pcs 8~16mm main cable both ends in and out.
  • 16 pcs 2*3mm drop cable both ends in and out.
  • The closure is spacious enough for winding and storing fibers.
  • The patented sealing structure keep good sealing performance after re-entry and re-using.
  • Easy open and close of closure with very little tool.
  • 24cores Fusing Splice available(Max.48cores)



Applications:

  • Messenger Installation available in the Closure
  • Mid-Span Branch,Aerial mounting
  • Separated in PLC Splitter Room and Fusion Splice Room
  • It is especially applicable to FTTH optical fiber distribution



Box structure

PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 0

More product show:

PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 1PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 2

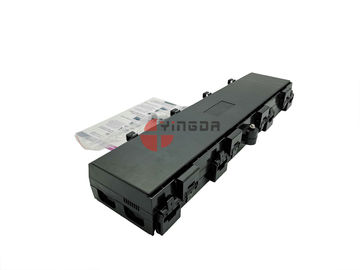

                             OVERVIEW                                                   BACK VIEW

PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 3PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 4

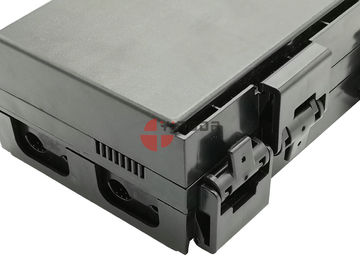

                         SIDE VIEW - LOCK                                       SIDE VIEW - UN LOCK



PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 5PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 6

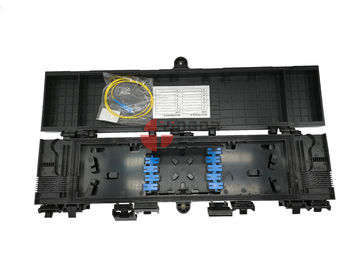

LAYER 1: BOX COVER

LAYER 2: SPLITTER AND ADAPTER, DROP CABLE PORTS

PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 7 PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 8



LAYER 2: ADAPTER CASSETTE, THIS MIDDLE LAYER CAN ROTATE

LAYER 3: FIBER FUSION SPLICE TRAY ON BOX BOTTOM, CAN MAX. SPLICE 48FIBERSS



PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 9 PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 10

BOX IS LOCK BY SCREWS NUT AND CLIPS (BRACKETS), up lock the upper layer 1, down lock the lowest layer 3



PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 11PP IP65 Aerial Mount Fiber Cable Joint Box , 48 Cores Fiber Optic Joint Enclosure 12

CABLE PORTS: CABLE PORTS WITH RUBBER SEAL (on layer 3), AND SPECIAL SLOTS FOR FTTH  DROP CABLE (on layer 2)



Specification



Model GJS-2018
Dimension 600*162*81mm
Max Capacity 48 cores
Max. Adapter 18 pcs SC
Splice tray capacity` 24 fibers or 48 fibers
Max. Splitter: 2pcs 1:8 or 1pc 1:16 mini tube
Cable port 4 in 4 out, 16 pcs for drop cable
Cable diameter 4 round:Φ8~Φ16mm; 16 ports-2*3mm drop cable or indoor cable
Material PP



Standard Accessories



Item Qty Item Qty
Heat shrinkable protective sleeve 1bag Desiccant 2bags
nylon tie 1bag Pigtail 1pc
silicon oil 1 bottle Buffer tube for bunchy fiber 1 roll
Seal tape 1 roll Abrasive cloth 1pc
Optional accessory
Aerial mount hanging hook 1set
