24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65

24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    ABS
  • Dimension
    300*186.5*59mm
  • Cable Port
    2in 2out
  • Drop Cable Port
    8 Pcs 2*3mm Ftth
  • Cable Diameter
    Φ8~Φ13mm
  • Feature
    Snap On, Clip Lock
  • Splitter Type
    1x8 PLC Splitter Slot Type
  • Max Fusion
    24 Fibers / Cores
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GJS-2021
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / box, 6 pc / master box
  • Delivery Time
    1 week
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000pcs per month

24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65

24 Cores FTTH 1*8 PLC Splitter Box, 8 Ports Fiber Optical Splice Box IP65





GJS-2021 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.



Specification

Model GJS-2021
Dimension 300*186.5*59mm
Max fusion capacity 24fibers
Max splitter 1pc 1:8 splitter module (LGX)
Cable ports 2in 2out, 8pcs drop cable for 2x3mm in and out
Max. SC adapter 9pcs
Cable diameter Round ports: 4-Φ8~Φ13mm;drop cable ports: 8-2*3mm




Feature

  1. The closure adopts horizontal mechanical sealing and advanced internal structure design.
  2. It can be installed one 1:8 Cassette PLC splitter.
  3. 8 pcs 2*3mm drop cable both ends in and out.
  4. The closure is spacious enough for winding and storing fibers.
  5. The patented sealing structure keep good sealing performance after re-entry and re-using.
  6. Easy open and close of closure without tool.
  7. 24cores Fusing Splice available

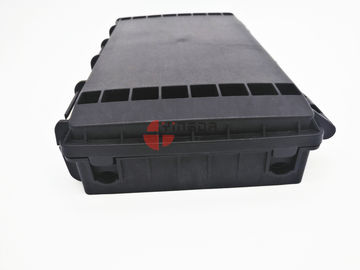

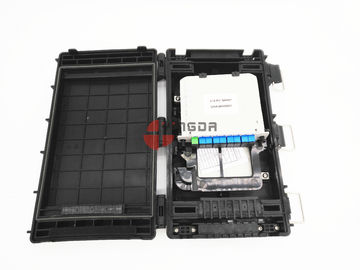

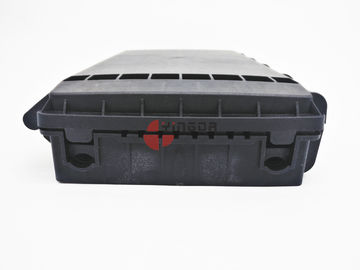

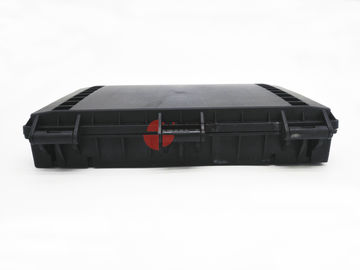

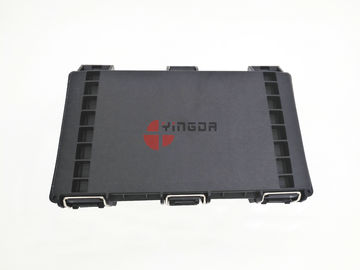

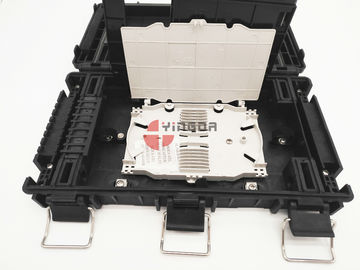

24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 0  24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 124 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 2  24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 324 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 4  24 Cores FTTH PLC Fiber Optic Splitter Box , 8 Ports Fiber Optical Splice Box IP65 5

Application

  1. Suitable for bunchy fibers
  2. Aerial, wall-mounting
  3. It’s especially applicable to FTTH optical fiber distribution

Standard accessories



seal type 1roll, labeling paper, abrasive cloth, insulation tape, nylon tie,desiccant, heat shrinkable protective sleeve, butter tube, hanging hook/1set
