Fiber Cable Joint Box
Created with Pixso. 2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini SC Connector

2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini SC Connector

Brand Name: YINGDA
Model Number: GJS-2021
MOQ: 100pcs
Price: negotiable
Delivery Time: 1 week
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS
Dimension:
300*186.5*59mm
Cable Port:
2in 2out
Drop Cable Port:
8 Pcs 2*3mm Ftth
Cable Diameter:
Φ8~Φ13mm
Feature:
Snap On, Clip Lock
Splitter Type:
1x8 PLC Splitter Slot Type
Max Fusion:
24 Fibers / Cores
Packaging Details:
1 pc / box, 6 pc / master box
Supply Ability:
100000pcs per month
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

2 in 2 out Fiber Optic Splitter Closure 8 Drops with 1*8 Mini Splitter Module SC Connector​





GJS-2021 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.





Specification

Model GJS-2021
Dimension 300*186.5*59mm
Max fusion capacity 24fibers
Max splitter 1pc 1:8 splitter module (LGX)
Cable ports 2in 2out, 8pcs drop cable for 2x3mm in and out
Max. SC adapter 9pcs
Cable diameter Round ports: 4-Φ8~Φ13mm;drop cable ports: 8-2*3mm




2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini  SC Connector 0  2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini  SC Connector 1

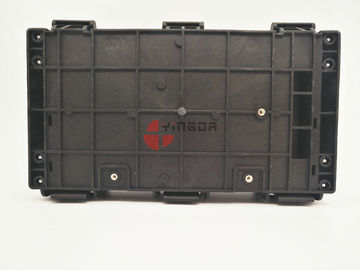

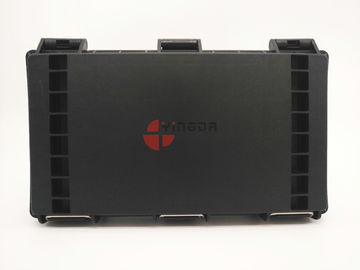

box with 3pcs stainless steel buckles                  side cable ports: 2round port, 8 pcs drop cable

2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini  SC Connector 2  2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini  SC Connector 3

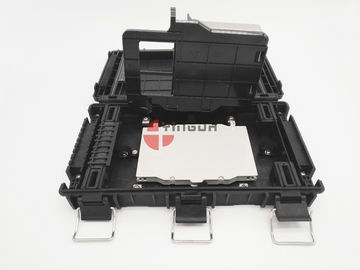

the rotate plate 75degree, layer is LGX module        bottom with 24fiber tray, white / black color



2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini  SC Connector 4  2 In 2 Out Fiber Optic Splitter Closure 8 Drops With 1 * 8 Mini  SC Connector 5

Standard accessory with user manual+aerial mount kits        plc splitter inspection report



Feature

  1. The closure adopts horizontal mechanical sealing and advanced internal structure design.
  2. It can be installed one 1:8 Cassette PLC splitter.
  3. 8 pcs 2*3mm drop cable both ends in and out.
  4. The closure is spacious enough for winding and storing fibers.
  5. The patented sealing structure keep good sealing performance after re-entry and re-using.
  6. Easy open and close of closure without tool.
  7. 24cores Fusing Splice available



Application

  1. Suitable for bunchy fibers
  2. Aerial, wall-mounting
  3. It’s especially applicable to FTTH optical fiber distribution

Standard accessories



seal type 1roll, labeling paper, abrasive cloth, insulation tape, nylon tie,desiccant, heat shrinkable protective sleeve, butter tube, hanging hook/1set
