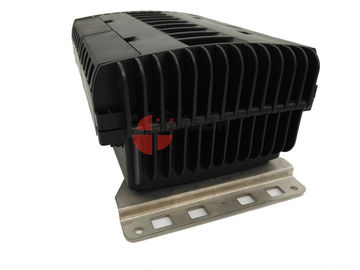

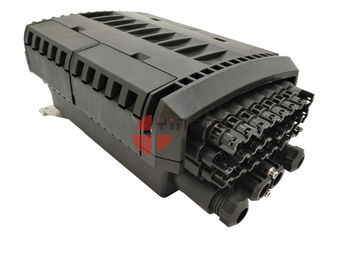

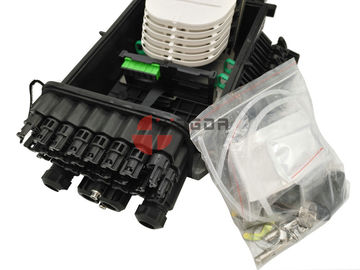

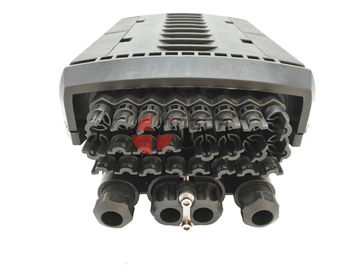

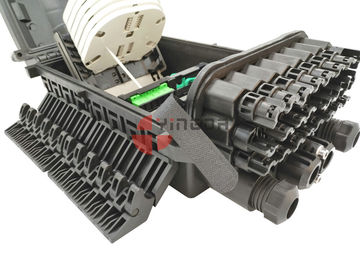

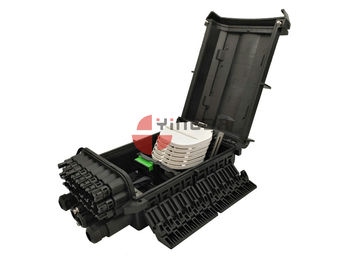

24 Ports FTTH Drop Cable Fiber Optic Splice Splitter Closure 96Cores Pass Through PP Black 3M
FTTH drop cable fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
Features
The splice closure is widely used for ftth network, 24pcs ftth figure 8 drop cable outputs, 1pc express ports support midspan termination, and 2 cable glands for feeder cable, easy operation and installation.
it is made of high compact and impact engineer plastic, waterproof with rubber seal all around the box, IP68 waterproof level, box is total enclosed with 4 buckles and screws nuts at the front place.
Rotatable and dis-mountable splice tray for easy splicing, each fiber cable joint box is configurated with 6pcs ABS material splice tray, max. 24cores/tray, and each with 1 slot for plc splitter.
Dis-mountable plastic adaptor panel 4pcs seperately, each hold 6pcs SC simplex couplers, in total 24pcs
Metal screw nut fo tix the cover on the bottom, whole box is PP+GF material, there is mark on the cover.
Specification
Model | FDB0224G | FDB0216F | FDB0224F | ||
Adapter | 24pcs of SC | 16pcs of SC | 24pcs of SC | ||
Cable ports | 1 uncut port | 1 uncut port | 2round ports | 1uncut port | 2round ports |
Applicable cable diameter | 10-17.5mm | 10-17.5mm | 8-17.5mm | 10-17.5mm | 8-17.5mm |
Drop cable ports | 24ports | 16ports | 24ports | ||
Applicable cable diameter | 2*3mm FTTH drop cable,2*5mm figure 8 FTTH drop cable | ||||
Dimension | 385*245*130mm | 385*245*130mm | 385*245*155mm | ||
Material | Modified polymer plastic | ||||
Sealing structure | Mechanical sealing | ||||
Color | Black | ||||
Maximum splicing capacity | 144fibers (6trays, 24fibers/ tray) | ||||
Applicable spliter | 1pc of 1*16 plc splitter or 2pcs 1*8 plc splitters | ||||
Sealing | Ip68 | ||||
Impact test | IK10 | ||||
Pull test | 100N | ||||
Midspan entry | Yes | ||||
Storage (tube/micro cable) | Yes | ||||
Net weight | 4kg | ||||
Gross weight | 5kg | ||||
Packing | 540*410*375mm (4pcs per carton) |
Standard parts
S/N | Description | Quantity | Note |
17 | Wall mounting kit | 1 | For wall mounting |
18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
20 | Nylon tie(3*120mm) | 12 | Fixing cable |
21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
22 | 0.2m coil tube | 1 | Protect the fiber |
23 | Insulation tape | 1 | Accessorial fixation |
24 | 0.5m EVA tube | 1 | Protect fiber |
25 | Drier | 1 | |
26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
28 | 41# grommet | 2 | For cable dia. From 8-12mm |
29 | Plastic plug | 4 | Seal the cable port |
30 | Iron spanner | 1 | Tool |
Optional parts
S/N | Description | Quantity | Note |
25 | Pole mounting kit | 1 | For pole mounting |
26 | Valve | 1 | Testing sealing performance |
