Fiber Cable Joint Box
Created with Pixso. 24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure

24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure

Brand Name: YINGDA
Model Number: FDB0224F
MOQ: 100pcs
Price: negotiable
Delivery Time: 1 week
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Features:
Uncut Port For Feeder Cable
Material:
PP
Dimension:
380*245*155mm
Max. Capacity:
144cores
Max. Splice Tray:
6pcs, 24fiber / Tray
Color:
Black
Cable Diameter:
10~17.5mm
Seal Type:
Buckle And Screw
Application:
FTTH Pole Mount Or Wall Mount
Packaging Details:
1pc/box, 4pcs/shipping box
Supply Ability:
100K per month
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure


FDB0224F is designed to seal without screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.

Specification

Dimension(mm)380*245*155Max. capacity(Single fiber)72/144cores
Weight(kg)4.5~5Sealing typeMechanical
Cable ports1 input cable port for un-cut cable from diameter from 10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
24 output cable ports for cable diameter less than 4mm.
Single splice tray capacity (Single fiber)12/24
Splice tray quantity6pcsMaterialPP


3.Structure

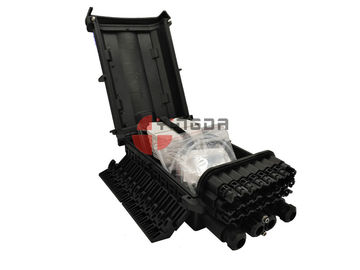

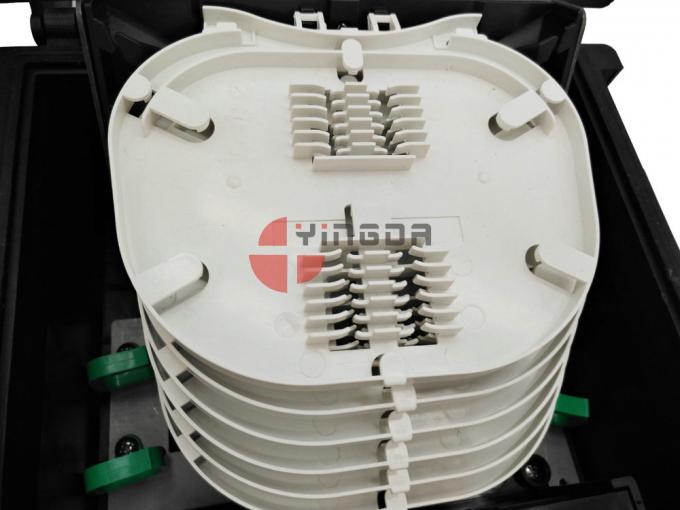

3.1 Closure and accessories(Picture 1)
24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 0
Picture 1

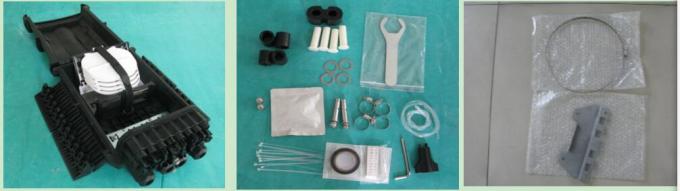

Parts list
Main kits

S/NDescriptionQuantityNote
1Lid1337(L)×242(W)×63(H)mm.
2Base1
3Sealing ring1Box sealing
48202 sealing parts16Sealing cable ports
5Splice tray4For cable splicing and storage
6Splice tray cover1
7Splice tray bandage1Fixing several splice trays
8Fastener bolt2Fixing lid and cover of closure
9Buckle4Fixing lid and cover of closure
10Tight nuts16Sealing soft cable ports
11Tight tool1Special for tight the nuts
12Cable fixing panel1Fixing un-cut cable
13Adaptor installation panel4An adaptor panel for 6 SC simplex adaptors
14Splice tray bracket1Install 6 splice trays
15Top cover stopper1Limit top cover
16Plastic nuts2Fixing cable


Features
24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 1  24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 2

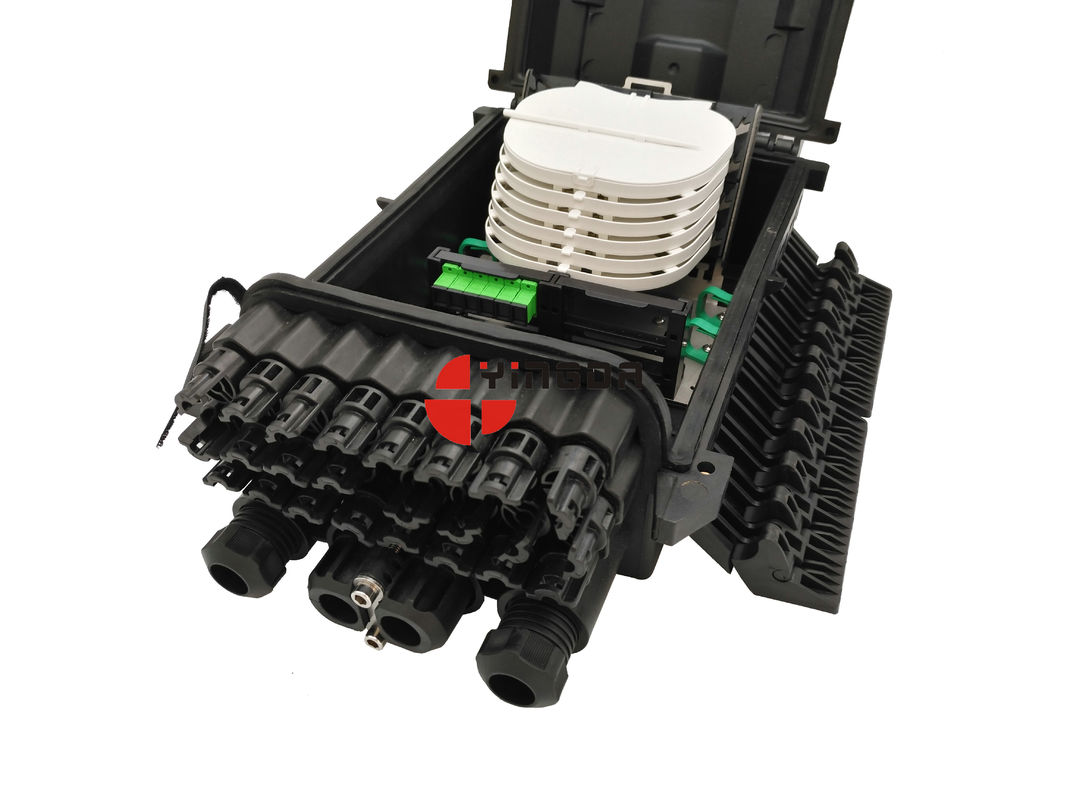

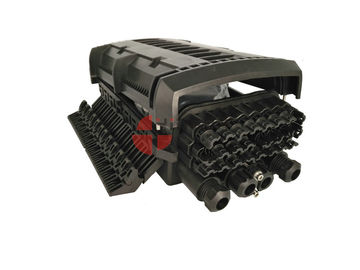

1 uncut ports,2 round ports, 24pcs drop cable ports, perfect for fiber to the work cable distribution and splitting and termiantion.

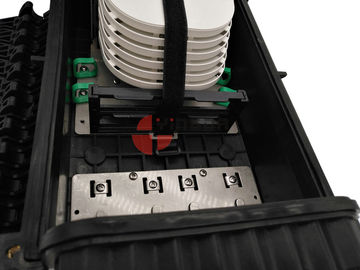

each box with 6pcs removable tray, and 24pcs SC adapter panel, and metal sheet for cable fix and routing.


24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 3  24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 4

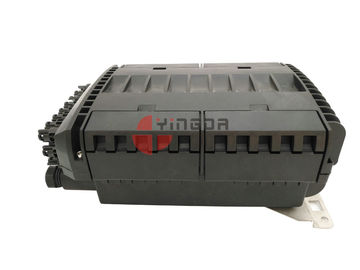

The box is strong, the buckle is unique design, high strength engineer plastic , the inside also have cable clamps.

24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 5  24 Ports 96 Cores PP Drop Cable IP68 Wall Mounted Fiber Optic Junction Box Inline Closure 6
all the metal parts is stainless steel, suitable for outdoor application, if you need small sheet, can do also.

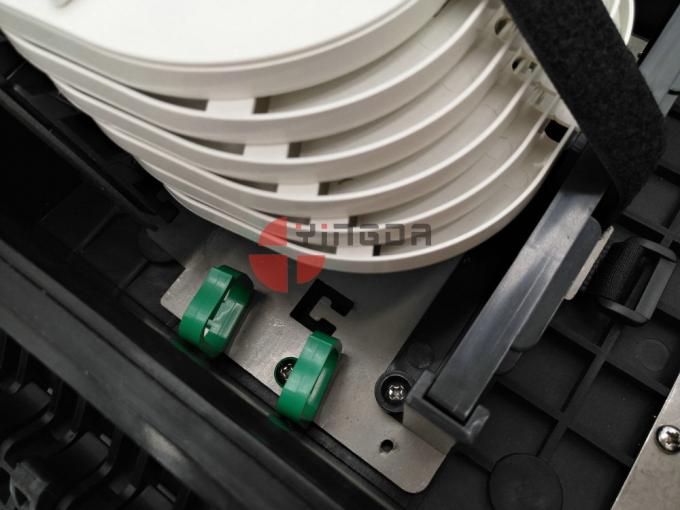

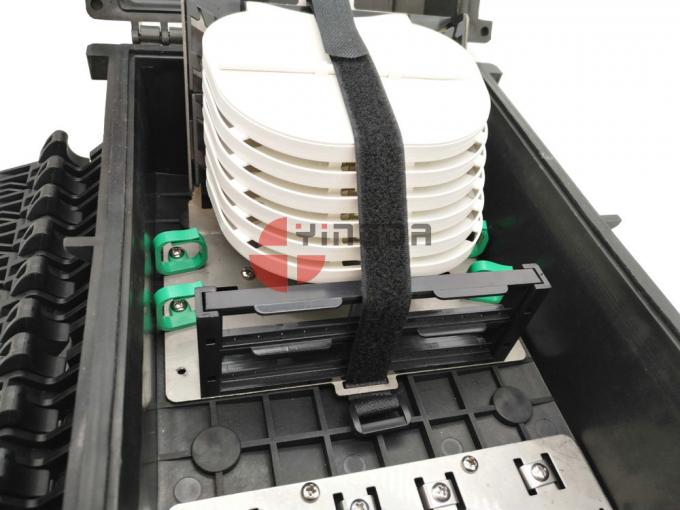

the splice tray  can fusion max. 12cores,double 24cores fiber; it can also put max. 1x, 1x4, 1x8 fiber optic plc splitter tube on the groove. it is the exact same size as the steel tube.

Standard parts

S/NDescriptionQuantityNote
17Wall mounting kit1For wall mounting
18Expansion anchor bolt2Parts of the wall mounting kit
19Hexagon bolt2Parts of the wall mounting kit
20Nylon tie(3*120mm)12Fixing cable
21Fusion sleeve(Φ1.0*60mm)According to the fiber cores.Cable splicing
220.2m coil tube1Protect the fiber
23Insulation tape1Accessorial fixation
240.5m EVA tube1Protect fiber
25Drier1
26M6 internal hexagonal wrench1Tool to open the box
2714# grommet2For cable dia. From 12-17.5mm
2841# grommet2For cable dia. From 8-12mm
29Plastic plug4Seal the cable port
30Iron spanner1Tool


Optional parts

S/NDescriptionQuantityNote
25Pole mounting kit1For pole mounting
26Valve1Testing sealing performance
