SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use

  • SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use
  • SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use
  • SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use
  • SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use
  • SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use
  • SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use
Place of Origin china
Brand Name yingda
Certification ISO
Model Number YDFIC-SU-G
Minimum Order Quantity 1000pcs
Price negotiable
Packaging Details 10pc/pack
Delivery Time 3-5days
Payment Terms T/T, Western Union
Supply Ability 1000k per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
House Color Blue Boot Type Screw
Fiber Type 0.9mm,250um,2mm,3mm Fiber Mode APC / PC
Cable Type Single Mode 9/125um Insertion Loss <0.3dB On Average
High Light

quick assembly connector

,

FTTH connector
Leave a Message
Product Description

SC Quick Connector Optical Fiber Drop Cable Termination 55mm No Need Epoxy SM TPU Repeat Use





Fast field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.



Fast connectors are compatible with 250µm and 900µm optical fibers, as well as 900µm, 2mm and 3mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.



Features

No epoxy required

Fiber can be reseated

Pre-stubbed, factory-polished ferrule

Precision mechanical alignment insures low loss

VFI can be used to confirm fiber is installed properly

Meets TIA/EIA 568A performance requirements

Meets TIA/EIA 604 (focis) connector interface requirements



Applications

Premise environments

Connections at the desk for LAN environments

Direct equipment termination

Fiber to the Subscriber (FTTx) applications

Repair and replacement requirements

Equipment test leads

Patch panels

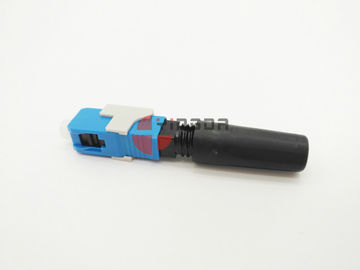

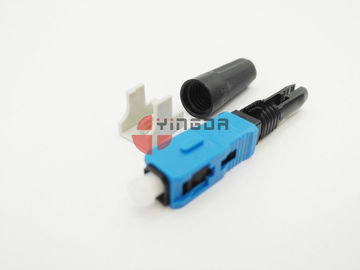

SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use 0SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use 1

 singlemode APC or PC both can do. Fiber moe:  APC green house,PC blue house.

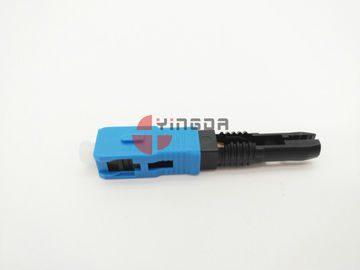

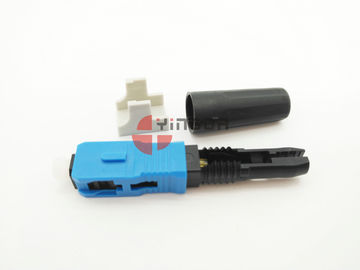

SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use 2SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use 3

gray part is clip for repeat use, it can be take off by hand, round boot is screw on and off



SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use 4SC Quick Optical Fiber Field Installable Connector No Need Epoxy SM TPU Repeat Use 5

 3mm round or 2x3mm figure-8 drop cable can insert from boot, high quality ceramic ferrule and pre-polished fiber inside.





Specification

Item Parameter
Single-Mode
Insertion Loss Max≤0.5dB , Average≤0.3dB
Return Loss APC≥50dB;UPC≥45dB
Durability (1000 Mating) 0.2dB Max.
Operating Temperature -40°C~+75°C



Mechanical performance requirements



Test name Test condition Result
Insertion loss change Return loss change Outer appearance change
Repeat assembly Repeat: 5imes ≤0.3dB ＜0.5dB Can be reassembled and test, pin surface should be no obvious scratches, if insertion loss change is large than 0.3dB, qualified; the rest shall not have mechanical damage, deformation, crack, relaxation and other anomalies
Tensile strength 0.125mm bare fiber 4N, 0.25mm fiber 4N,non-online monitoring optical performance; 0.9mm optical fiber type 10N, optical cable 20N, on-line monitoring optical performance; cable 30N, not online monitoring optical performance; Time: 2 minutes ≤0.3dB ＜0.5dB
Drop test Height: distance from the sample head 1.5m; times: 10 times ≤0.3dB ＜0.5dB
Vibration Frequency: 10 ~ 50Hz; sweep: 45 times per minute: amplitude: 0.75mm single amplitude; time: three directions, each two hours ≤0.3dB ＜0.5dB
Repeatability Mating:10times ≤0.3dB ＜0.5dB
Mechanical durability Mating:500times ≤0.3dB ＜0.5dB
Retortion Load: cable type 15N; rate: 10 times / min; times: 200 times ≤0.3dB ＜0.5dB
