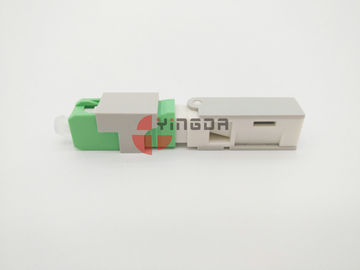

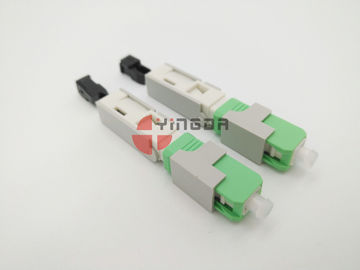

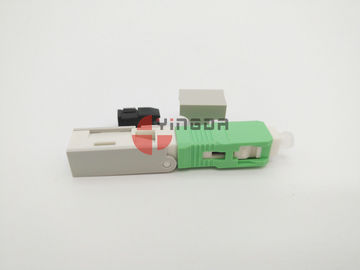

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable
  • name
  • name
  • name
  • name

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable

MOQ: 1000pcs
Price: 0.19USD-0.72USD
Standard Packaging: 10pc/pack
Delivery Period: 3-5days
Payment Method: T/T, Western Union
Supply Capacity: 1000k per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO
Model Number
YDFIC-SA-H
House Color:
Green
Boot Type:
Screw
Fiber Type:
0.9mm,250um,2mm,3mm
Fiber Mode:
APC / PC
Cable Type:
Single Mode 9/125um
Insertion Loss:
Max.0.5dB
Product Name:
Mechanical Connector
Application:
FTTH
Product Name:
Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Highlight:

quick assembly connector

,

FTTH connector

Product Description

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre-polished Fiber For Drop Cable





Fast Connector is also called Field Assembly Connector, Field Installation connector, quickly assembly connector. It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body. The assembly only requires normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.



Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode fiber and available with PC or APC ferrules.



Feature

pre-stubbed factory-polished ferrule that couples to the fiber being terminated.

Precision mechanical alignment insures low loss with a prosprietary gel.

Connector Type: SC

Fiber Application: Singlemode

Fiber Type: Simplex

Number of Fibers: 1

Maximum Cable Diameter (mm):2X3mm

Connector Ferrule: Ceramic



Specification



Item Parameter
Single-Mode
Insertion Loss Max≤0.5dB , Average≤0.3dB
Return Loss APC≥50dB;UPC≥45dB
Durability (1000 Mating) 0.2dB Max.
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.



Product details

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 0FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 1

              Boot, cable insert fromthis side                                    flip cover of the boot



FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 2FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 3

                               front view                                             side view, repeat use holes





Techanical requirements



ITEM SC/UPC SC/APC
Insertion loss

average≤0.25dB; test with standard connector and adapter≤0.5dB;

test with any connector and adapter≤0.7dB
Return loss ≥45dB ≥55dB
Cable type 3.0*2.0mm drop cable,§3.0/§2.0 round single fiber cable or other type
Fiber diameter 0.125mm bare fiber; 0.25mm cladding fiber;0.9mm tight tube fiber
Fiber mode Singlemode 1310/1550nm



Envieonmental performance

Item Test condition   Result
Insertion loss change Return loss change Outer appearance change
High temperature test + 85 ℃, 96h is not online monitoring optical performance ≤0.3dB ＜0.5dB No mechanical damage, such as deformation, cracking, relaxation and other phenomena; no deformation, blistering
Low temperature test -40 ℃, 96h is not online monitoring optical performance ≤0.3dB ＜0.5dB
Temperature cycle test -40 ℃ ~ +85 ℃, 21 cycles, 168h non-online monitoring of optical performance ≤0.3dB ＜0.5dB
Constant temperature and humidity test + 75 ℃, relative humidity 95%, 96h non-online monitoring optical performance ≤0.3dB ＜0.5dB
Soaking test Room temperature, tap water, 168h ≤0.3dB ＜0.5dB

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 4

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

A
A*e
Indonesia Feb 7.2025
Helpful (3)
Everything excellent, from the treatment in the negotiation, delivery time, and the quality of their product very good Delivery： 100% Quality： 100% Design： 100% Service： 100%
C
C*s
France Nov 19.2024
Helpful (2)
Product was exactly as in pictures with good quality and packing.
E
E*n
Chile Aug 23.2023
Helpful (9)
Good quality, IP65 waterproof. will continue to cooperate with YINGDA
Tags:

quick assembly connector,

FTTH connector,

mechanical splicer
