FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable

Products - Field Installable Connector
  • High Light

    quick assembly connector

    ,

    FTTH connector

  • House Color
    Green
  • Boot Type
    Screw
  • Fiber Type
    0.9mm,250um,2mm,3mm
  • Fiber Mode
    APC / PC
  • Cable Type
    Single Mode 9/125um
  • Insertion Loss
    Max.0.5dB
  • Product Name
    Mechanical Connector
  • Application
    FTTH
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    YDFIC-SA-H
  • Minimum Order Quantity
    1000pcs
  • Price
    negotiable
  • Packaging Details
    10pc/pack
  • Delivery Time
    3-5days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000k per month

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable

  • FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable
  • FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable
  • FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable
  • FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable
  • FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable
Get Price Contact Now

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre-polished Fiber For Drop Cable





Fast Connector is also called Field Assembly Connector, Field Installation connector, quickly assembly connector. It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body. The assembly only requires normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.



Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode fiber and available with PC or APC ferrules.



Feature

pre-stubbed factory-polished ferrule that couples to the fiber being terminated.

Precision mechanical alignment insures low loss with a prosprietary gel.

Connector Type: SC

Fiber Application: Singlemode

Fiber Type: Simplex

Number of Fibers: 1

Maximum Cable Diameter (mm):2X3mm

Connector Ferrule: Ceramic



Specification



Item Parameter
Single-Mode
Insertion Loss Max≤0.5dB , Average≤0.3dB
Return Loss APC≥50dB;UPC≥45dB
Durability (1000 Mating) 0.2dB Max.
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.



Product details

FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 0FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 1

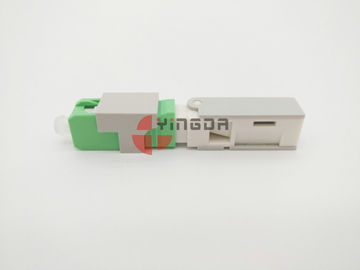

              Boot, cable insert fromthis side                                    flip cover of the boot



FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 2FTTH Fiber Optic SC APC Mechanical Connector Clamshell Pre polished Fiber For Drop Cable 3

                               front view                                             side view, repeat use holes





Techanical requirements



ITEM SC/UPC SC/APC
Insertion loss

average≤0.25dB; test with standard connector and adapter≤0.5dB;

test with any connector and adapter≤0.7dB
Return loss ≥45dB ≥55dB
Cable type 3.0*2.0mm drop cable,§3.0/§2.0 round single fiber cable or other type
Fiber diameter 0.125mm bare fiber; 0.25mm cladding fiber;0.9mm tight tube fiber
Fiber mode Singlemode 1310/1550nm



Envieonmental performance

Item Test condition   Result
Insertion loss change Return loss change Outer appearance change
High temperature test + 85 ℃, 96h is not online monitoring optical performance ≤0.3dB ＜0.5dB No mechanical damage, such as deformation, cracking, relaxation and other phenomena; no deformation, blistering
Low temperature test -40 ℃, 96h is not online monitoring optical performance ≤0.3dB ＜0.5dB
Temperature cycle test -40 ℃ ~ +85 ℃, 21 cycles, 168h non-online monitoring of optical performance ≤0.3dB ＜0.5dB
Constant temperature and humidity test + 75 ℃, relative humidity 95%, 96h non-online monitoring optical performance ≤0.3dB ＜0.5dB
Soaking test Room temperature, tap water, 168h ≤0.3dB ＜0.5dB
