96 Cores PP Material IP68 Pole Mount 24 Ports FTTH Drop Cable Fiber Cable Joint Box Splice Enclosure
FDB0224G is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.
The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

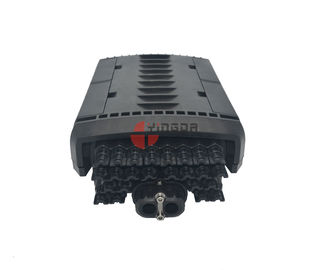

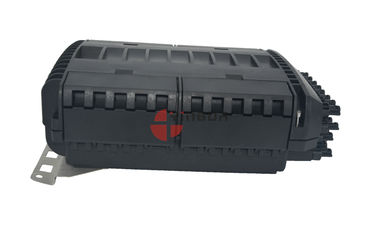

Box overview: PP+GF material, black;
Lock system: 2 buckles+2pcsscrews nuts+hinge of the bottom and cover;

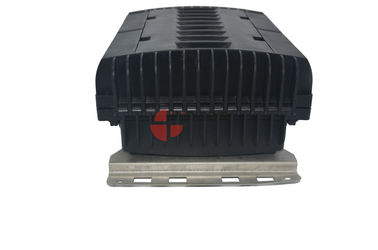

Mounting kits: metal sheet at the back, all accessory bag in the box when delivery
Internal view: cable fixtion metal sheet, 4pcs splice tray, cable clamp, 24pcs SC adapters;

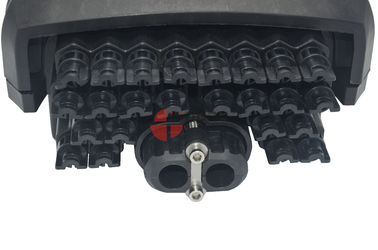

Cable port: 1 express port / uncut port for distribution cable go straight through the box, 24pcs ftth drop cable outputs for 2mm, 4mm or 7.5mm
Details: high strength and high compact buckles to for better locking, stainless steel metal mounting ktis at box bottom.
Splice tray and splitter tray: use as a splice tray, max. fusion splice single fiber 24 cores ;
use as a splitter tray, max. load 1:2, 1:4, 1:8 plc splitter steel tube.
Specification
Dimension(mm) | 380×245×130 | Max. capacity(Single fiber) | 24 |
Weight(kg) | 4.5~5 | Sealing type | Mechanical |
Cable ports | 1 input cable port for un-cut cable from diameter from10~17.5mm. 16 output cable ports for cable diameter less than 4mm or 7mm, block will be optional | Single splice tray capacity(Single fiber) | 24 |
Splice tray quantity | 2-4pcs |
Main kits
S/N | Description | Quantity | Note |
1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
2 | Base | 1 | |
3 | Sealing ring | 1 | Box sealing |
4 | 8202 sealing parts | 16 | Sealing cable ports |
5 | Splice tray | 4 | For cable splicing and storage |
6 | Splice tray cover | 1 | |
7 | Splice tray bandage | 1 | Fixing several splice trays |
8 | Fastener bolt | 2 | Fixing lid and cover of closure |
9 | Buckle | 4 | Fixing lid and cover of closure |
10 | Tight nuts | 16 | Sealing soft cable ports |
11 | Tight tool | 1 | Special for tight the nuts |
12 | Cable fixing panel | 1 | Fixing un-cut cable |
13 | Adaptor installation panel | 4 | An adaptor panel for 6 SC simplex adaptors |
14 | Splice tray bracket | 1 | Install 4 splice trays |
15 | Top cover stopper | 1 | Limit top cover |
16 | Plastic nuts | 2 | Fixing cable |
Standard parts
S/N | Description | Quantity | Note |
17 | Wall mounting kit | 1 | For wall mounting |
18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
20 | Nylon tie(3*120mm) | 12 | Fixing cable |
21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
22 | 0.2m coil tube | 1 | Protect the fiber |
23 | Insulation tape | 1 | Accessorial fixation |
24 | 0.5m EVA tube | 1 | Protect fiber |
25 | Drier | 1 | |
26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
28 | 41# grommet | 2 | For cable dia. From 8-12mm |
29 | Plastic plug | 4 | Seal the cable port |
30 | Iron spanner | 1 | Tool |
