Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount

Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    PP
  • Dimension
    385*245*130mm
  • Cable Ports
    1uncut Port(10-17.5mm)+ 2 Round Ports (8-17.5mm)
  • Drop Cable
    16ports For 4mm Or 7mm
  • Maximum Capacity
    96 Cores Single Fiber
  • Max. Splitter
    1pc 2x16 Or 1x16 Splitter,2pcs 1x8 Splitter Steel Tube
  • Max. Adapter
    24pcs SC/UPC Or SC/APC
  • Protection Grade
    IP68
  • Installation Method
    Pole Mount Or Wall Mount
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0216F
  • Minimum Order Quantity
    200PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1PC/BOX,4PCS/CARTON
  • Delivery Time
    1WEEK
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000PCS PER MONTH

Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount

IP68 PP 96Cores FTTH Fiber Optic Splice Box With SC/UPC Connecors, Fiber Access Terminal Box





FTTH drop cable type fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.



Features

Dis-mountable adaptor panel

Support midspan termination

Easy operation and installation

Rotatable and dis-mountable splice tray for easy splicing



Specification

Model FDB0216F
Adapter 16pcs of SC
Cable ports 1 uncut port, 2round ports
Applicable cable diameter Uncut port: 10-17.5mm, round ports:8-17.5mm
Drop cable ports 16ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Dimension 385*245*130mm
Material Modified polymer plastic
Sealing structure Mechanical sealing
Color Black
Maximum splicing capacity 96fibers (4trays, 24fibers/ tray)
Applicable spliter 1pc of 1*16 plc splitter or 2pcs 1*8 plc splitters
Sealing Ip68
Impact test IK10
Pull test 100N
Midspan entry Yes
Storage (tube/micro cable) Yes
Net weight 4kg
Gross weight 5kg
Packing 540*410*375mm (4pcs per carton)

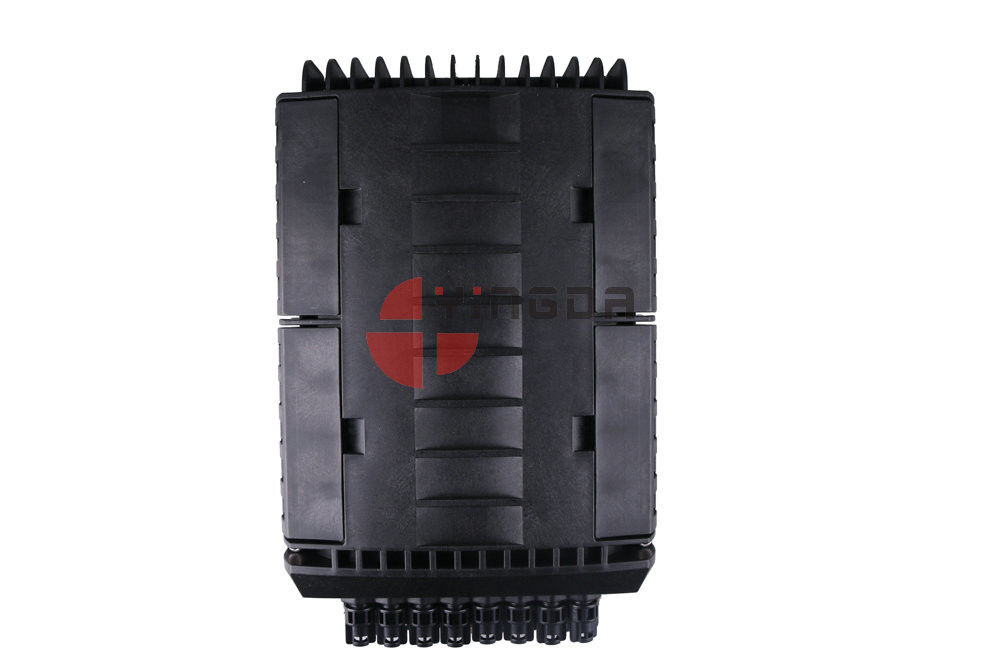

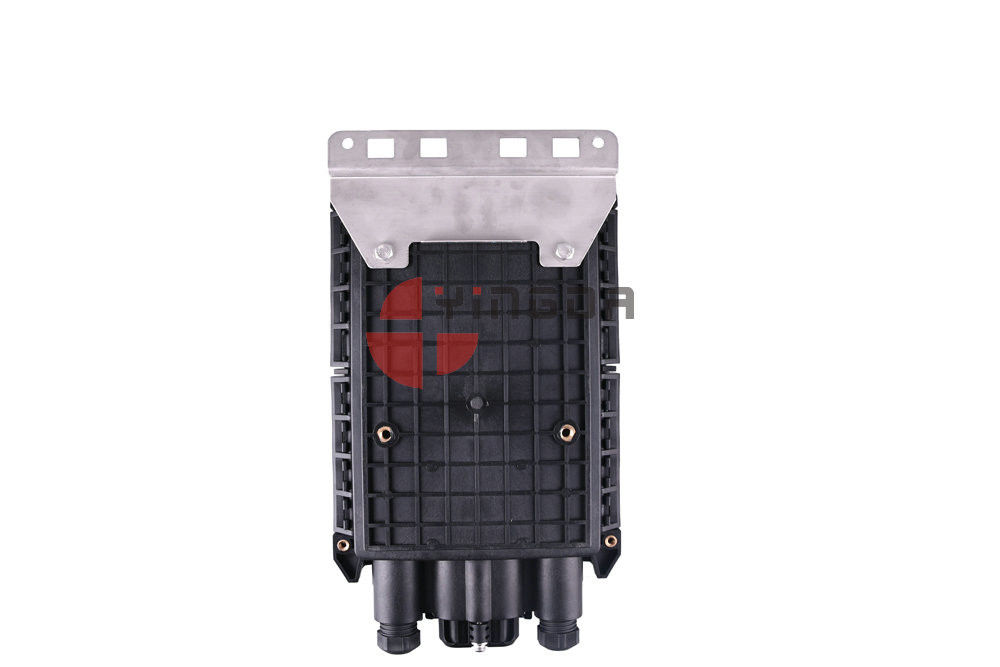

Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount 0   Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount 1

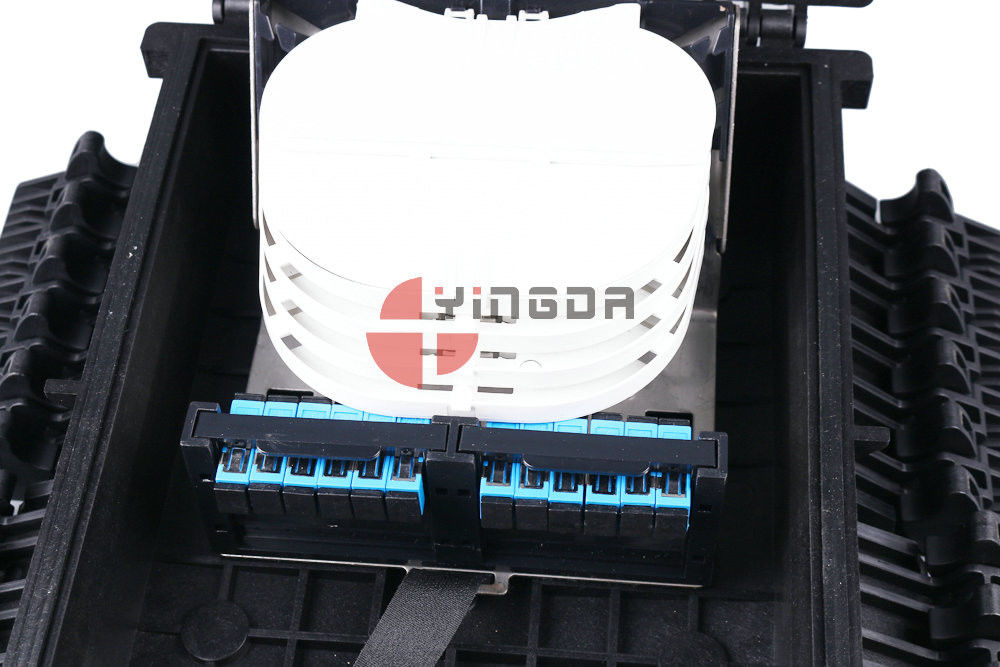

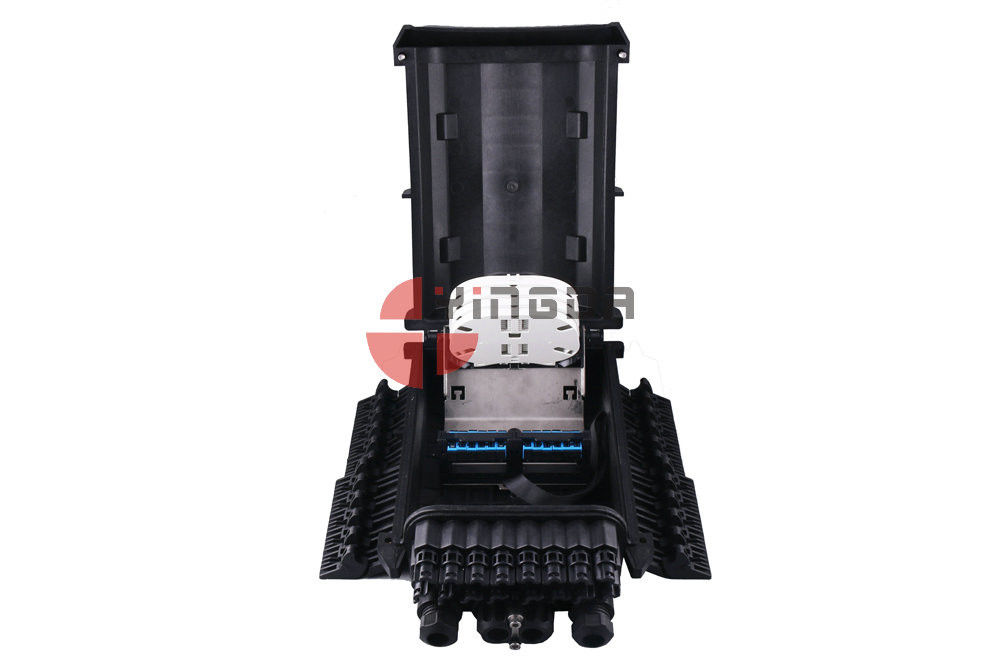

Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount 2   Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount 3
