| Brand Name: | YINGDA |
| Model Number: | FDB0216F |
| MOQ: | 200pcs |
| Price: | negotiable |
| Delivery Time: | 1week |
| Payment Terms: | T/T, Western Union |

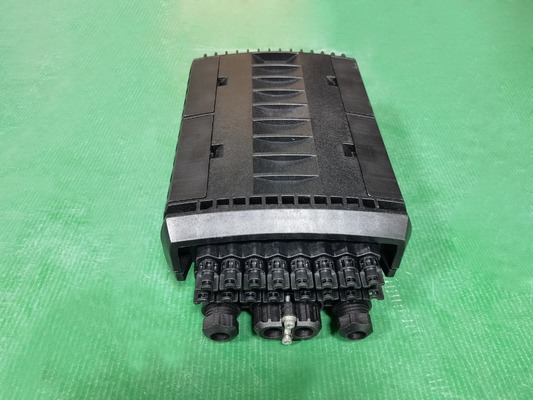

IP68 Waterproof Telecom Pole Mount FTTH 96 Cores Fiber Optic Splitter Splice Closure PP

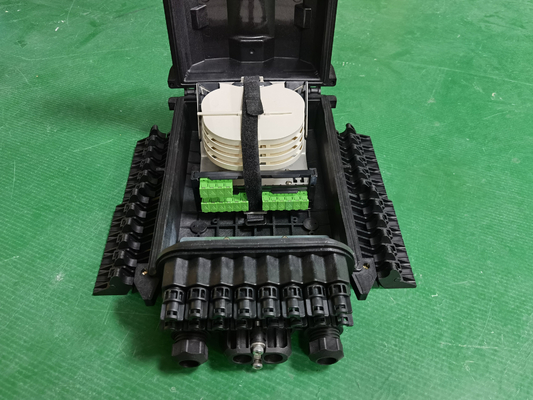

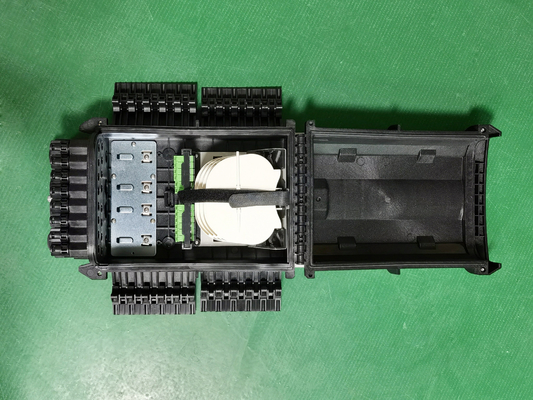

FDB0216F is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Fiber Optic Junction Box Features
Fiber Optic Distribution BoxSpecification
| Model | FDB0216F | |
| Dimension (A*B*C) | 385*245*130mm | |
| Max.Capacity | 48cores=4*12F single fiber | |
| Cable entry | 1mid span, | 2round ports |
| Cable diameter | 10-17.5mm | 8-17.5mm |

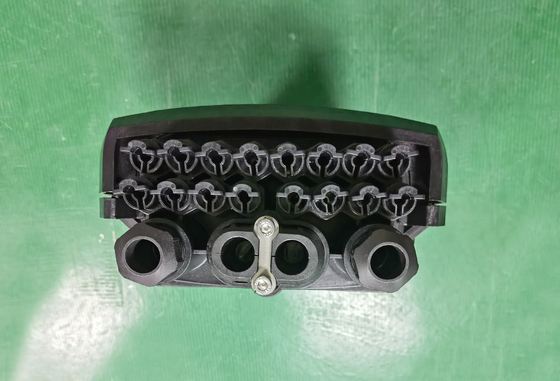

| Cable exit | 16 drop cable ports: 2mm, 4mm, 7mm | |
| Adapter quantity | 24SC | |
| Splitter quantity | 1x16 or 2pc 1x8 steel tube | |
| Material | PP+GF (Modified polymer plastic + Glass fiber) | |
Fiber Optic Splitter Box Parts list
Main kits
| S/N | Description | Quantity | Note |
| 1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
| 2 | Base | 1 | |
| 3 | Sealing ring | 1 | Box sealing |
| 4 | 8202 sealing parts | 16 | Sealing cable ports |
| 5 | Splice tray | 4 | For cable splicing and storage |
| 6 | Splice tray cover | 1 | |
| 7 | Splice tray bandage | 1 | Fixing several splice trays |
| 8 | Fastener bolt | 2 | Fixing lid and cover of closure |
| 9 | Buckle | 4 | Fixing lid and cover of closure |
| 10 | Tight nuts | 16 | Sealing soft cable ports |
| 11 | Tight tool | 1 | Special for tight the nuts |
| 12 | Cable fixing panel | 1 | Fixing un-cut cable |
| 13 | Adaptor installation panel | 4 | An adaptor panel for 6 SC simplex adaptors |
| 14 | Splice tray bracket | 1 | Install 4 splice trays |
| 15 | Top cover stopper | 1 | Limit top cover |
| 16 | Plastic nuts | 2 | Fixing cable |
Fiber Optic Joint Closure Standard parts
| S/N | Description | Quantity | Note |

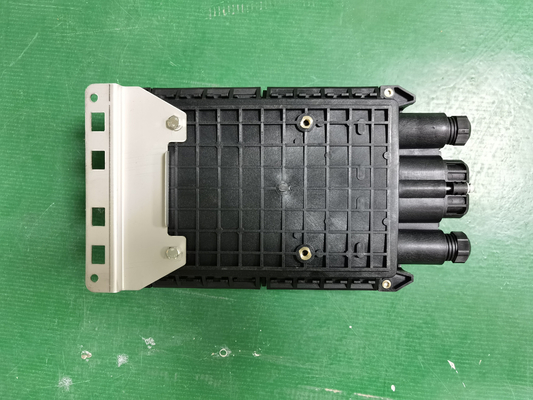

| 17 | Wall mounting kit | 1 | For wall mounting |
| 18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 20 | Nylon tie(3*120mm) | 12 | Fixing cable |
| 21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
| 22 | 0.2m coil tube | 1 | Protect the fiber |
| 23 | Insulation tape | 1 | Accessorial fixation |
| 24 | 0.5m EVA tube | 1 | Protect fiber |
| 25 | Drier | 1 | |
| 26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
| 27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
| 28 | 41# grommet | 2 | For cable dia. From 8-12mm |
| 29 | Plastic plug | 4 | Seal the cable port |
| 30 | Iron spanner | 1 | Tool |
video
|
|
