3 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors

3 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    Pc
  • Max Capacity
    72cores
  • Max. Fiber Of Tray
    24cores
  • Max. Adapter
    18pcs SC
  • Max. Splitter
    2x16 Optical Splitter Micro Type
  • Tray Quantity
    3pcs
  • Dimension
    340x220x100mm
  • Cable Port
    3in 3out
  • Cable Diameter
    9-16mm
  • Type
    Inline Splice Closure
  • Customer Logo Or Label
    Ok
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GJS-2020
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 8pcs/carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000pcs per month

3 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors

3in 3out Inline Splice Closure for Fiber Optic PLC Splitter 1X16 1X8 2X16 with SC/APC connectors





GJS-2020 Optical Distribution Box (ODB)is high-density 2in 2out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16pcs 3mm cables.



Features

  • Box is made of high impact engineering plastic PC material, longer life
  • Small size, large capacity, fusion can up to 144fibers
  • Each tray is made of brand new ABS material, high quality and performance
  • Full list of accessories, more convenient and fast for operation
  • Snap with brackets unique design, humanity design
  • Suitable for outdoor harsh environments like aermial mount, pole mount a nd wall mount
  • Can use as a splitter box for FTTH drop cable or only splice closure for fusion splice.
  • Uncut cable pass through 2in 2out, drop cable outputs have rubber blocks with holes for branching
  • IP65 protetion class

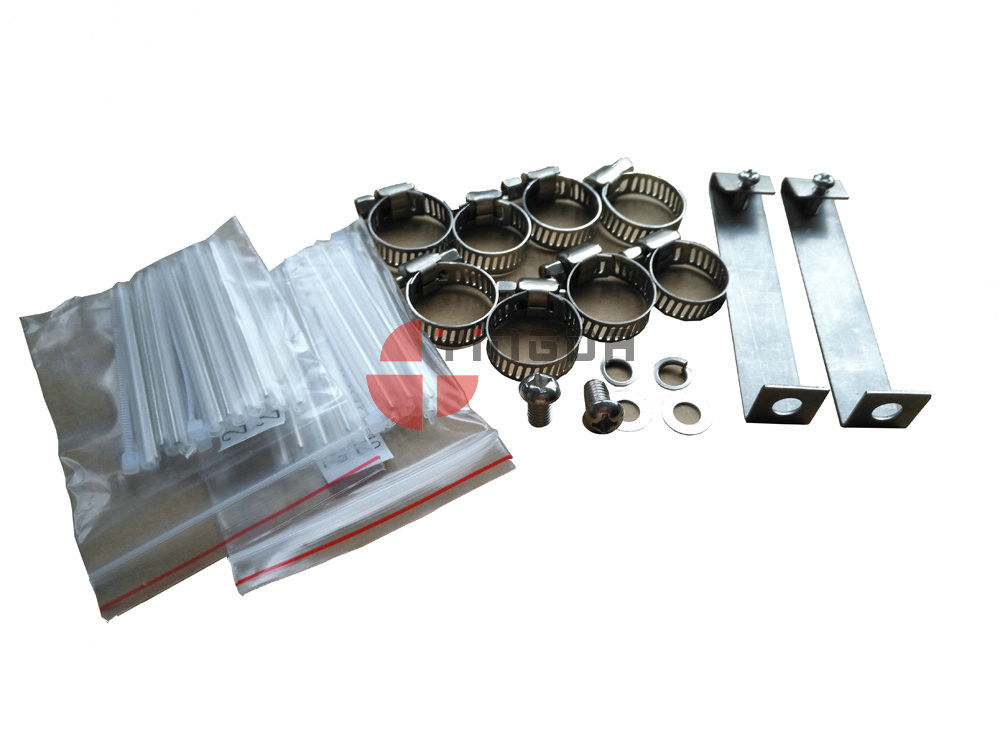

Accessory Kits:

3 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors 0

Accessory Quantity Accessory Quantity
Cleaning tissues 1bag Number labels 2pcs
Hose clamp 8pcs Drop cable sleas 2sets
Main Cable Seals 3pcs Aerial mount kits(bracket)with M5x12 stainless bolts) 1set
Nylon Tie-wrap 8pcs M6x10 Stainless Bolts 2pcs
Shrinkable sleeves on actual fiber cores Fiber Melting Protection Tube 3pcs



Specification

Model GJS-2020
Dimension 340x220x100mm
Max fusion capacity 72cores, with3pcs 24fiber tray
Cable ports 2in 2out
Drop cable ports Each 1round ports at both ends which can hold 16pcs 2x3mm drop cable
Max. Cable dimaeter 9-16mm
Max. Splitter 1x2,1x4,1x8,1x18,2x2, ... 2x16 plc splitter steel tube type
Max. Adaper 18pcs SC simplex adapter
Material PC



More Product Details

 3 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors 13 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors 2

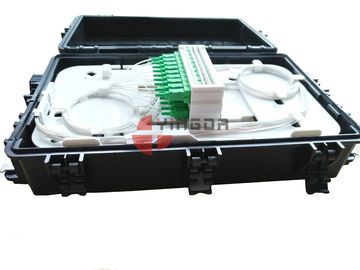

                Splice tray for fusion view                 Splitter plate with 1x16 plc splitter and17pcs SC/apc                                                                                    adapters, enough spce for fiber ditribution and storage



3 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors 33 In 3 Out Inline Fiber Cable Joint Box 2 x 16 With SC / APC Connectors 4

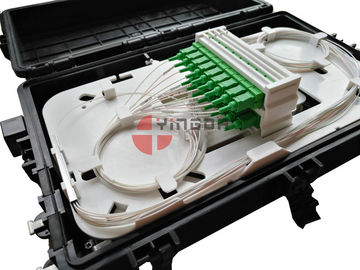

                 Inside fiber route                                                      aerial mount
