FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter

FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    Pc
  • Max Capacity
    72cores
  • Max. Fiber Of Tray
    24cores
  • Max. Adapter
    18pcs SC
  • Max. Splitter
    2x16 Plc Splitter, 1x16 Plc Splitter,2pcs 1x8 Plc Splitter
  • Tray Quantity
    3pcs
  • Dimension
    340x220x100mm
  • Cable Port
    2in 2out
  • Cable Diameter
    9-16mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GJS-2020
  • Minimum Order Quantity
    100pc
  • Price
    negotiable
  • Packaging Details
    1pc/box, 8pcs/carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000pcs per month

FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter

FTTH Drop Cable Termination Box,1x8 PLC splitter Distribution Box IP65 PC ABS 6 Ports Inline Closure





GJS-2020 Optical Distribution Box (ODB)is high-density 2in 2out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16pcs 3mm cables.





Features

Box is made of high impact engineering plastic PC material, longer life

Small size, large capacity, fusion can up to 144fibers

Each tray is made of brand new ABS material, high quality and performance

Full list of accessories, more convenient and fast for operation

Snap with brackets unique design, humanity design

Suitable for outdoor harsh environments like aermial mount, pole mount a nd wall mount

Can use as a splitter box for FTTH drop cable or only splice closure for fusion splice.

Uncut cable pass through 2in 2out, drop cable outputs have rubber blocks with holes for branching

IP65 protetion class



Accessory Kits:

FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 0

Accessory Quantity Accessory Quantity
Cleaning tissues 1bag Number labels 2pcs
Hose clamp 8pcs Drop cable sleas 2sets
Main Cable Seals 3pcs Aerial mount kits(bracket)with M5x12 stainless bolts) 1set
Nylon Tie-wrap 8pcs M6x10 Stainless Bolts 2pcs
Shrinkable sleeves on actual fiber cores Fiber Melting Protection Tube 3pcs



Specification

Model GJS-2020
Dimension 340x220x100mm
Max fusion capacity 72cores, with3pcs 24fiber tray
Cable ports 2in 2out
Drop cable ports Each 1round ports at both ends which can hold 16pcs 2x3mm drop cable
Max. Cable dimaeter 9-16mm
Max. Splitter 1x2,1x4,1x8,1x18,2x2, ... 2x16 plc splitter steel tube type
Max. Adaper 18pcs SC simplex adapter
Material PC

FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 1FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 2

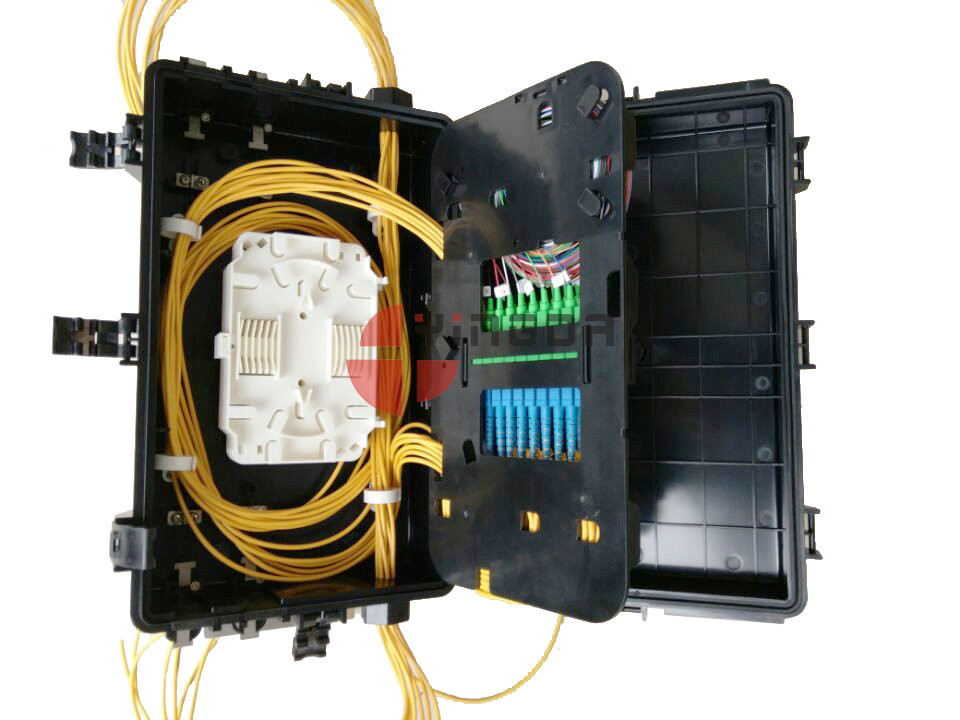

   PC material, plastic adatper holder                         flip design of splitter plate, 180degree rotate

bracket design, no need screws to lock                       normally 3pcs 24fiber tray up to 72fibers,

                                                                                  if only fusion,  can do 144cores singlfe fiber





FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 3FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 4

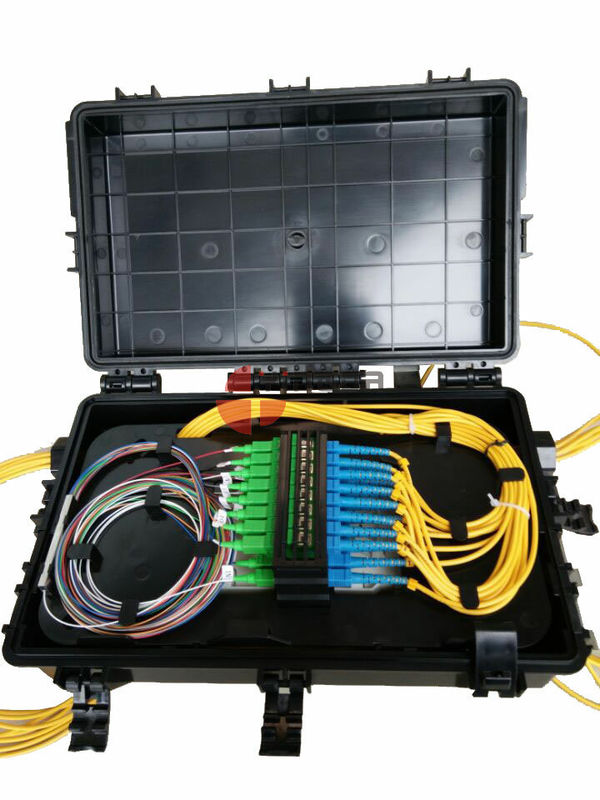

adapters in 2raws, no need screws to fix                            3ports at both sides, 2uncut ports for feeder

18pcs SC maximum, can use 1pc 2x16 splitter                   cable entry, 1round for cable out or drop cable

or 1x16spliter or 2pcs 1x8 splitter                                        protection class IP65 outdoor use



FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 5FTTH Drop Cable Splitter Distribution Box 24cores 18pcs SC Adapter 6



          abs material for splice tray,                                      all metal part is stainless steel

          each 24cores fusion splice                             there is cable fix rods for better protection
