18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable

18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    Pc
  • Max Capacity
    144cores
  • Max. Fiber Of Tray
    24cores
  • Max. Adapter
    18pcs SC
  • Max. Splitter
    2x16 Plc Splitter, 1x16 Plc Splitter,2pcs 1x8 Plc Splitter
  • Max. Quantity Of Tray
    6pcs
  • Dimension
    340x220x100mm
  • Cable Port
    2in 2out
  • Cable Diameter
    9-16mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GJS-2020
  • Minimum Order Quantity
    100pc
  • Price
    negotiable
  • Packaging Details
    1pc/box, 8pcs/carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000pcs per month

18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable

Optical Distribution Box 72 Fibers 2in 2out For FTTH Drop Cable 18pcs SC Adapter Splitter Box





GJS-2020 Optical Distribution Box (ODB)is high-density 2in 2out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16pcs 3mm cables.





Features

Box is made of high impact engineering plastic PC material, longer life

Small size, large capacity, fusion can up to 144fibers

Each tray is made of brand new ABS material, high quality and performance

Full list of accessories, more convenient and fast for operation

Snap with brackets unique design, humanity design

Suitable for outdoor harsh environments like aermial mount, pole mount a nd wall mount

Can use as a splitter box for FTTH drop cable or only splice closure for fusion splice.

Uncut cable pass through 2in 2out, drop cable outputs have rubber blocks with holes for branching

IP65 protetion class



Accessory Kits:

18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 0

Accessory Quantity Accessory Quantity
Cleaning tissues 1bag Number labels 2pcs
Hose clamp 8pcs Drop cable sleas 2sets
Main Cable Seals 3pcs Aerial mount kits(bracket)with M5x12 stainless bolts) 1set
Nylon Tie-wrap 8pcs M6x10 Stainless Bolts 2pcs
Shrinkable sleeves on actual fiber cores Fiber Melting Protection Tube 3pcs



Specification

Model GJS-2020
Dimension 340x220x100mm
Max fusion capacity 144cores, max. 6pcs 24fiber tray
Cable ports 2in 2out
Drop cable ports Each 1round ports at both ends which can hold 16pcs 2x3mm drop cable
Max. Cable dimaeter 9-16mm
Max. Splitter 1x2,1x4,1x8,1x18, ... 2x16 plc splitter steel tube type
Max. Adaper 18pcs SC simplex adapter
Material PC



18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 118pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 2

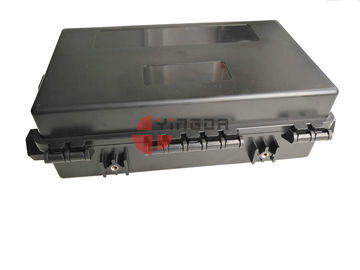

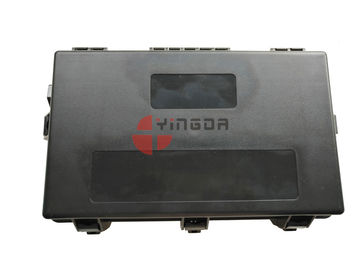

                      Box overview                                           Adaper holer plate (white or black)



18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 318pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 4

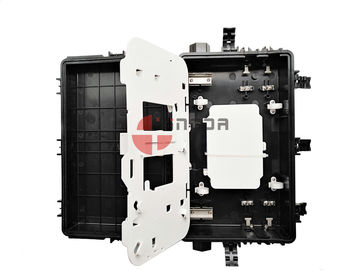

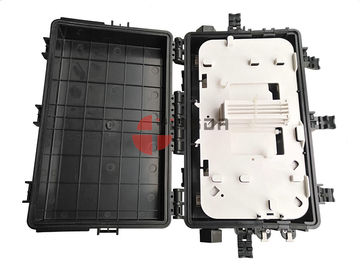

           24fiber splice tray,                                              2in 2out for uncut feeder cable,

     ABS brand new material                                     round port for FTTH drop cable 2x3mm



18pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 518pcs SC Adapter Optical Distribution Box 72 Fibers 2 In 2 Out For FTTH Drop Cable 6

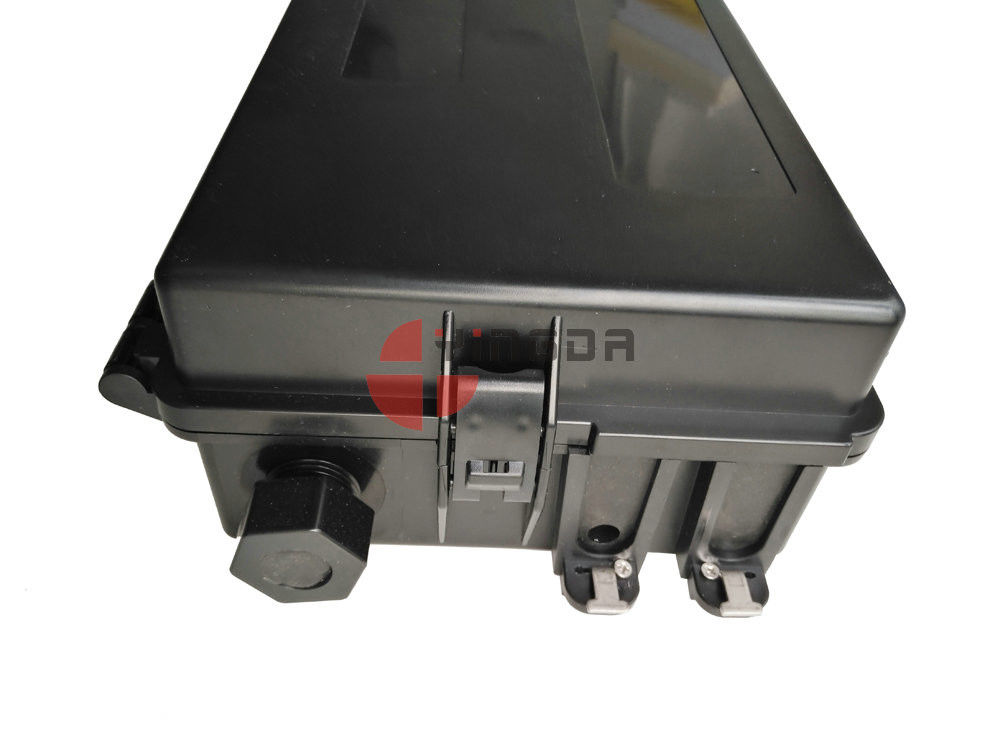

snap bracket design at front and sides,                        cable ports at both sides, PC material,

better profromance and protection                                 high impact and high strength last for

                                                                                                         more than 20years
