Fiber Optic Attenuator
Created with Pixso. LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier

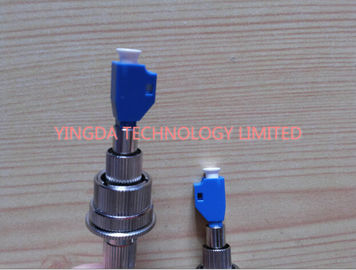

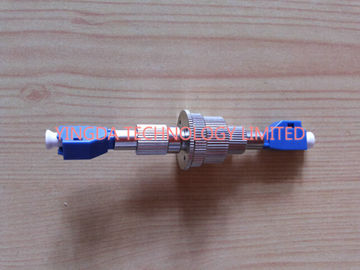

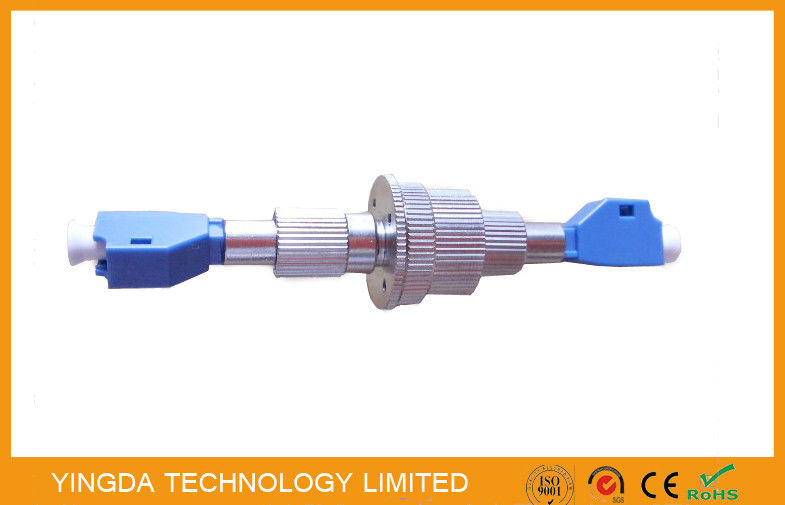

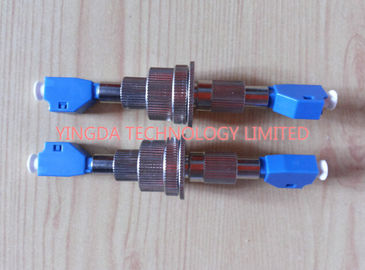

LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier
  • Name
  • Name
  • Name
  • Name

LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier

Brand Name: YINGDA
Model Number: ATTN-LCS-MVOA-01
MOQ: 100PCS
Price: Negotiable
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Attenuation:
0-30dB Adjustable
Test Wavelength:
1310nm, 1550nm
Body Material:
Metal
Additional Loss:
0.1dB
Working Temperature::
-40～+85 (℃)
Fiber Optic Type:
Single-mode
Connector Type:
LC/PC
Dust Cap:
Plastic White
House Color:
Plastic Blue
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Packaging Details:
1 pc / plastoc bag
Supply Ability:
50,000pcs per month
Highlight:

optical fiber attenuator

,

inline optical attenuator

Product Description

LC Mechanical VOA Attenuator, LC MVOA Attenuator, Fiber Optic Attenuator





LC Mechanical variable optical attenuator is generally used in optical measurement. In the when

measure optical receiver sensitivity, usually place in the optical receiver input to adjust receiving

light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic connector with

all high performance of connectors.





When use optical attenuator, please keep the environment clean and dry, put on the dust cap

when not in use, handle with care, strictly forbid collision.





Feature:

  1. Low PDL
  2. Attenuation 1dB to 30dB
  3. Compact size, light weight
  4. Low reflection loss
  5. High power tolerance,long-term stability
  6. Independent of the wavelength effect
  7. Precisely control attenuation range
  8. Simple operation
  9. Meet the GR910



Application:

  1. EDFA power amplifier
  2. The power balance in the system
  3. CATV
  4. Optical add-drop multiplexer in the optical power regulator



Specification:



Parameter

Condition

Value

Attenuation(dB)

UPC

1~30

APC

Return loss(dB)

UPC

>50

APC

>60

Operating wavelength(nm)

1310, 1550, 1240, 1600

Attenuation accuracy

1~4dB

≤0.5dB

5~30dB

<10%

Operating temperature()

-

-40 ~ +75

Storage temperature()

-

-40 ~ +85

Polarization Dependent Loss(dB)

-

<0.2

Relative humidity (%)

75

95

Vibration(dB)

10 ~55,2Hrs

∆IL≤0.2

Impact(dB)

1.5m,5 drops

∆IL≤0.2

LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier 0LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier 1
