Fiber Optic Attenuator 1dB 2dB 3dB
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Attenuation | 1dB - 20dB Fix | Test Wavelength | 1310nm, 1550nm |
|---|---|---|---|
| Body Material | Metal | Additional Loss | 0.1dB |
| Working Temperature | -40～+85 (℃) | Fiber Optic Type | Single-mode, Multimode |
| Industry Standard | Telcordia TA-NWT-001209 | Connector Type | SC/APC |
| Dust Cap Color | Green | Connector Shape | Female To Male Attenuator |
| High Light | build out attenuator,optical fiber attenuator |
||
Product Description

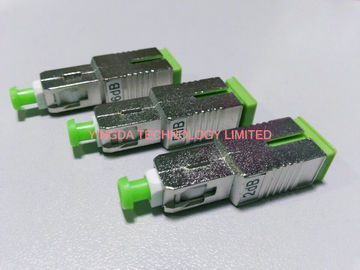

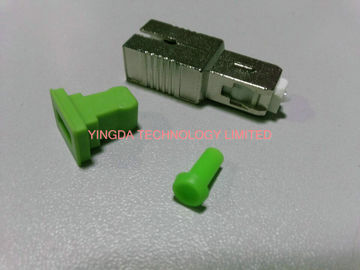

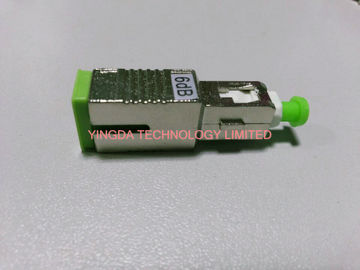

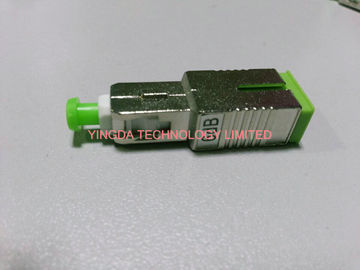

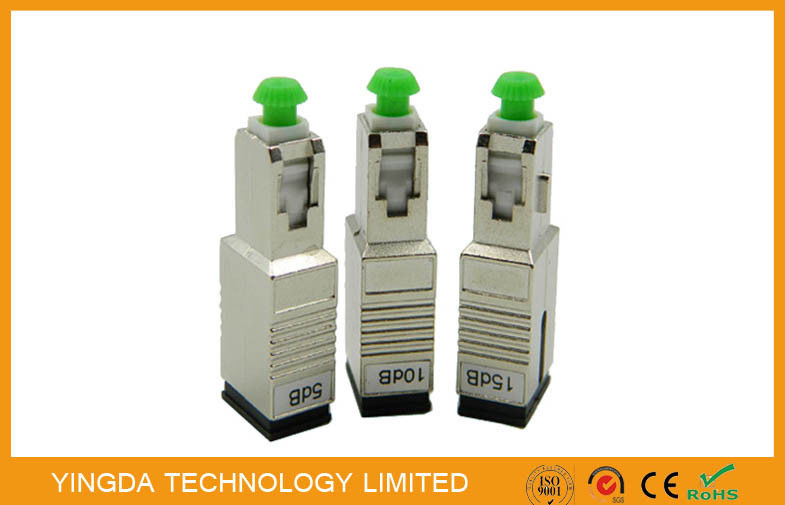

Build Out Fiber Optic Attenuator SC APC 1dB, 2dB, 3dB, SC Attenuator Optic Fiber
Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable
attenuator which one end is connector type, the other end is adapter type (known as male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in
order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,
5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.
Features:
- High precision attenuation value
- Low additional loss
- High durability
- High reliability and stability
- Connector type: FC, SC, LC, ST, FC/SC or other type
Material:
- metal Housing
- Ceramic Zirconium Sleeve
- dust cap color; green for APC, black for UPC
Specification:
|
Return Loss: |
Less than 50 dB (SPC) |
|
|
Less than 55 dB (UPC) |
|
|
Less than 65 dB (APC) |
|
Attenuation Accuracy: |
+/-0.5 (1-10) |
|
|
+/-1.0 (11-30) |
|
Polarization Dependent Loss: |
Less than 0.2dB |
|
Maximum Optical Input Power: |
200mW |
|
Operating Temp. Range: |
-40 ~ 80°C |
