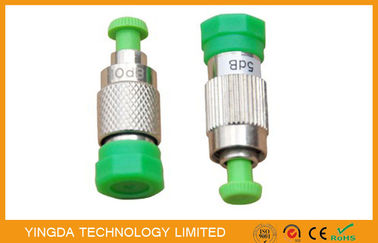

SC, LC , FC , ST, MU Female To Male Fiber Optic Attenuator Plug - in Type (FC APC F-M )

SC, LC , FC , ST, MU Female To Male Fiber Optic Attenuator Plug - in Type (FC APC F-M )

  • High Light

    build out attenuator

    ,

    inline optical attenuator

  • Attenuation
    7dB
  • Test Wavelength
    1310nm, 1550nm
  • Body Material
    Metal
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single-mode,multimode
  • Industry Standard
    Telcordia TA-NWT-001209
  • Connector Type
    FC/APC, SC/APC, LC/APC
  • Dust Cap Color
    White
  • Connector Shape
    Male To Female
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-FCA-01-B01
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / plastoc bag
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

SC, LC , FC , ST, MU Female To Male Fiber Optic Attenuator Plug - in Type (FC APC F-M )

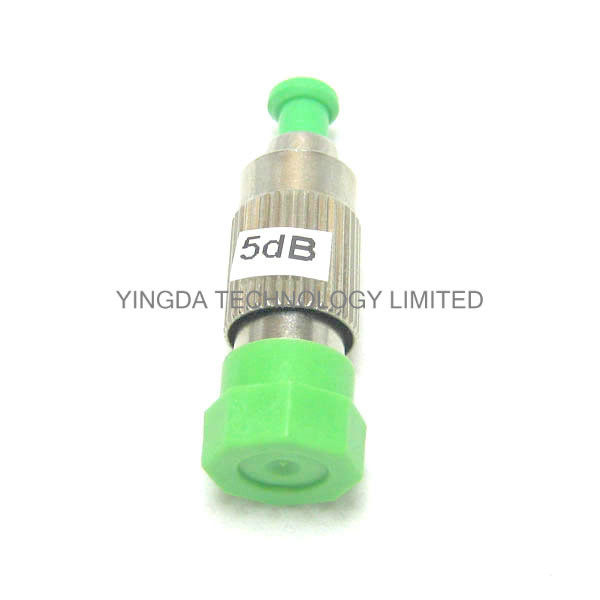

FC/APC Female To Male Attenuator (FC APC F-M ), Plug-in Type Optical Attenautor





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.





Features

  1. Single mode and Multimode
  2. Zirconia sleeves or Phosphor bronze sleeves
  3. NTT standard compatible
  4. Increases panel density and quick plug in installation
  5. New SC footprint for duplex and 4 way design, more compact for most patch
  6. Compliant with Bellcore GR-910-CORE
  7. All parts compliant with ROHS



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃
