|Type:||Fiber Optic Splitter Box||Application:||Ftth Box|
|Mounting:||Pole Mount, Wall Mount||Feature:||2pcs 1x8 Or 1x16 Splitter With 18SC Holder|
|Max Fusion:||16 Cores Single Fiber||Cable Port:||1 Oval +16 Round Ports With Rubber Seal|
fiber optic cable junction box,
fiber optic cable joint box

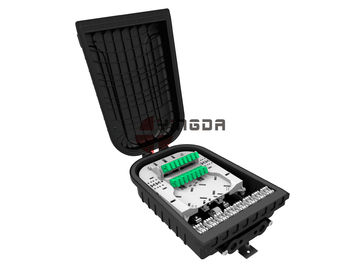

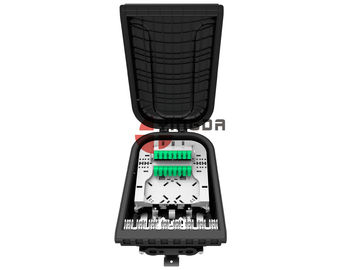

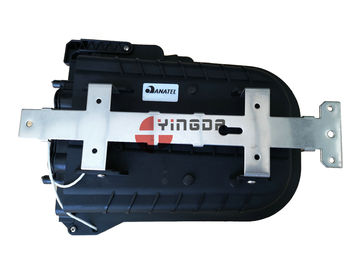

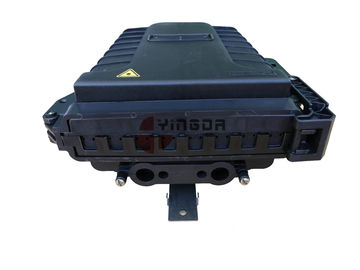

16 Port FTTH Fiber Access Point Splice Distribution SLIM BOX for 1X8 1X16 Splitter
Network access point FDB0216B is an external use product for installation in overhead networking (pole/wall/steel wire).
|Cable port||1 oval + 16pcs drop cable or round cable|
Oval: 2 main cable (φ8-15mm) or 2 derivation cables (φ6-8mm)
16pcs: Drop Cable Low Friction 3x2mm or round 4.5-5.3mm
|Fusion capacity||16 cores single fiber|
|Max. Adapter||16 SC +2SC|
|Max. Tray||2splice tray (16cores) + 1 adapter tray (16SC) or 4 splice trays (16cores).|
Plastic bracket, metal wall/pole mount kits, heat shrink protection sleeve, nylon tie, cable tie, label mark, buffer tube, etc.
How to open the box?
Care and safety
Be careful when handing cables and optical cords, especially in the management of bare optical fibers.
During accommodation of the basic units within the product, check the bending radius and nay other interference with other components while opening and closing the product.
Optical connectors must be clean before each connection and every re-connection.
Stay alert for laser radiation warnings, do not manipulate connectors when lasers are on and do not turn the connectors towards the eyes.
