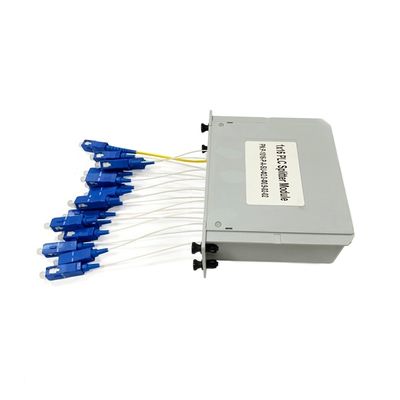

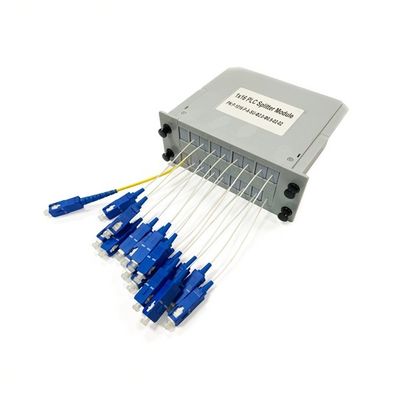

New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems

MOQ: 1pc
Price: 1.1USD-4.58USD
Standard Packaging: 1PC/PLASTIC BAG, 40pcs/carton box
Delivery Period: 5DAYS
Payment Method: T/T,Western Union,MoneyGram,L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO
Model Number
YDPLC-LGX-208LU
Box Size:
130×100×50mm
Material:
Flame-retardant ABS
Color:
Gray
Cable Port:
8ports For Outlet Cable
Splitter Type:
1x16 2x16 Fiber Potic Splitter
Fiber Type:
Single Mode 9/125um
Loose Tube:
0.9mm Diameter White
Connector:
SC LC
Highlight:

1x16 Fiber Optic PLC Splitter

,

1x16 Module Fiber Optic PLC Splitter

,

Fiber Optic PLC Splitter Module

Product Description

Plug-in Type PLC Splitter 1X8 with SC UPC Connector, 2.0mm cable for inlet port 0.9mm cable for outlet port



Plug-in type PLC splictter also called LGX PLC splitter used to distribute or combine optical signals in FTTH deployment. It’s usually installed in the wall mount Fiber optic distribution box to save time & space and provides reliable protection for the fiber optic cores.


YINGDA offers a variety of 1xN and 2xN PLC splitters in plug-in type. Their compact structure and small volume make them convenient for use in various places, such as 19-inch racks, cross-connect cabinets, and other devices. Our fiber splitters offer outstanding optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.


LGX Box Dimension:


Splitting ratio Dimension (H×W×D)mm
1x2 / 2x2 (Inserts) 130×100×25
1x4 / 2x4 (inserts)
1x8 / 2x8(Inserts)
1x16 / 2x16 (Inserts) 130×100×50
1x32 / 2x32 (Inserts) 267×100×50


Product details:

New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 0New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 1

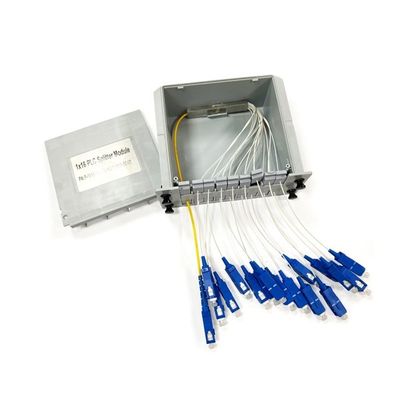

Box overview:

box size:130×100×50mm, small size, large capacity, can use maximum 2x32LC SC plc splitter with connectors lid and bottom is connected with 2screws on the top, we can make OEM logo on the label to make better marketing.


Integrated design

The LGX box type of PLC splitter integrates the light splitter, which greatly facilitates
the construction of the project and reduces the damage caused by the improper construction or storage of the conventional box splitter.

New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 2New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 3

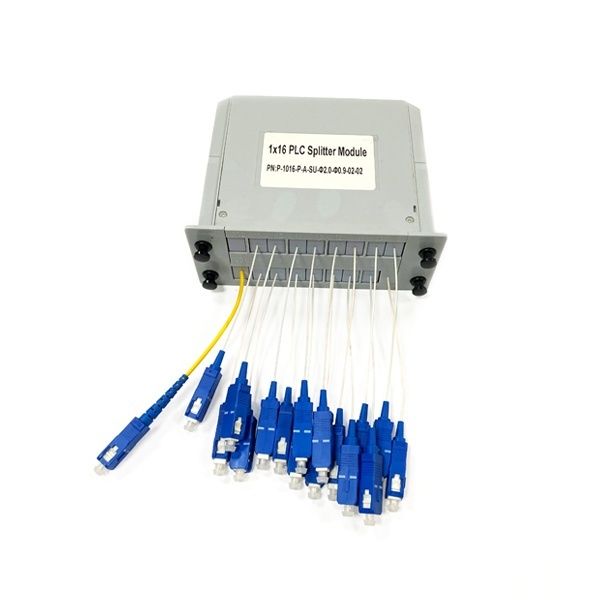

Details:

front adapter panel:  there is 123456... 16 and IN1 IN2 mark for better construction and fiber count. steel tube fix place is specially deisgn, with glue to make it more stable during transporation.enough fiber storage and wiring space, reasonable fiber bend radius.

Inlet and outlet port  with connector and cable, direct connecting to your device, no need aother adapter, save your cost and  reduce losses during connection.

New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 4New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 5



Package:

suggest to use 1piece / cardboard box, but if u need cost effective, plastic bag will be ok, then about 10 or 20pcs will be in a small cardboard, it will be ok to protect the item in good condition.

welcome OEM or ODM.


Application:

CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband

New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 6




Order information:

PLC-LGX-XXX/XXX

- 1 / 2

PLC 1 Split ratio 2 connector in/out port
LGX Modular

102=1*2

104=1*4

...

SA=SC/APC

SU=SC/UPC

ST=ST

...


YINGDA 'S  PLC Splitter production line

New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 7New Fiber Optic PLC Splitter Plug-in type 1x16 LGX box card insert with SC/UPC Connector module in Telecommunication systems 8

1.Advanced production and testing equipment

2.Professional manufacturer. 100% tested
3. Full compliance with IS0 9001:2008 quality managemen system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions
7.Can provide your specific inquiry within 24 hours Advanced production and testing equipment.
