Fiber Optic Splitter Box
Created with Pixso. Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters

Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters

Brand Name: YINGDA
Model Number: FDB0216
MOQ: 100PCS
Price: NEGOTIABLE
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO
Adapter:
SC/APC
Capacity:
16 Fibers
Output:
16 FTTH Drop Cable Figure-8 Or Self-supporting Type.
Cable Inport:
2 PCS
PLC Splitter:
1:16 Mini Splitter
Dimension:
260*320*90mm
Material:
PC
Color:
White
Application:
FTTH
Adapter Quantity:
16 Pieces
Customer Logo:
Ok
Customer Label:
Ok
Packaging Details:
1 pc per box, 10 pcs per carton shipping box
Highlight:

fiber optic closure

,

optical distribution box

Product Description

FTTH Outdoor 16Core Fiber Optic Termination Box With SC/APC Adapters, 1x16 PLC Splitter Plastic





This fiber optic distribution box is adopted the latest design, no special tool for the locking, easy installation and opening. Flip-open cover design to avoid removing other splice tray, it also can be equipped with PLC splitter.

It is with the functions of mechanical splice,fusion splice,light splitting,wiring distribution.





Applications



1.Applicable in FTTH project
2. Suitable for corridor,basement,room and building's outer walls application
3. With the function of mechanical splice,fusion splice,light splitting,wiring distributions



Features:



1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.





More clear pictures



Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 0Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 1

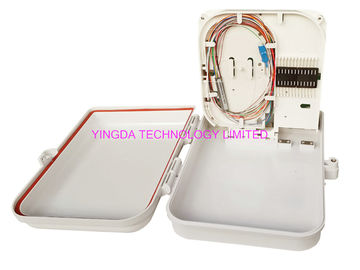

  • there is rubber seal all around the box in red color, which prevents the box from water, humidity and harsh environment outside.
  • it has double layer tray, upper layer for adapter panel and fiber routing or storage, down layer is for distribution, splitting or heatsrhink protection storage.



Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 2Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 3

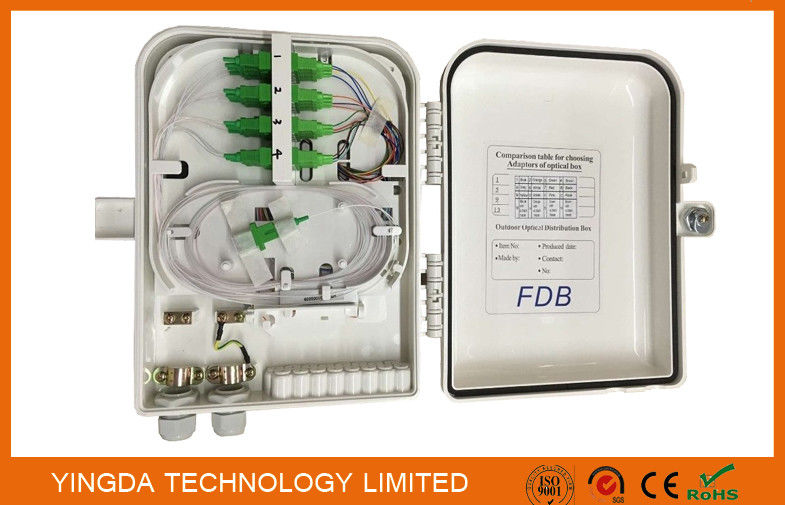

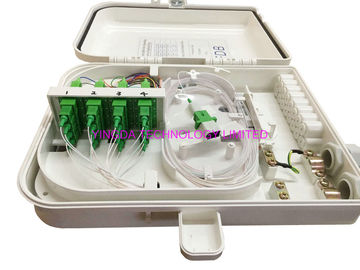

  • the adapter panel is plastic, and fix by screws, it maximum can install 16pcs SC adapters simplex, or LC duplex.
  • there is a speical fixation place for PLC splitter steel tube, maximum hold 1x16 plc splitters and there is 24pcs heat shrink tube protection tray.
  • the whole tray can be 90° angel rorate to ease on-site construction, during transporation,tighten the screws with box. Then it will be in place, not moving and break fiber, humanity design.

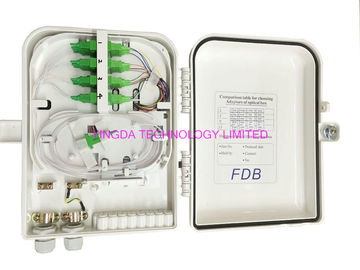

  • for better identification, the splitter input connectors can be blue color, then it will not confused with outputs connectors like below right pictures.

Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 4Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 5



empty box can install plc splitter mini module 0.9mm, steel tube, it has enough space for fiber storage, the cable length better to be 1meter or maximum 1.5meters.



Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 6Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters 7



Specification



Model FDB-0216
Capacity 16 port
Material PC
Dimension 260mm(W)x320mm(D)x115mm(D)
Color White
Cable ports 2inlet, 16outlets
Adapter SC, LC
Splitter Mini splitter 1x8,1x16
Working temperature -40~+85°C



Packing information



Model N.W (kg/pcs) Dimension of outer carton (mm) G.W of outer Carton (kg/carton) No of Products (pcs/carton)
FDB-0216 1.80 550*355*620 19.8 10
