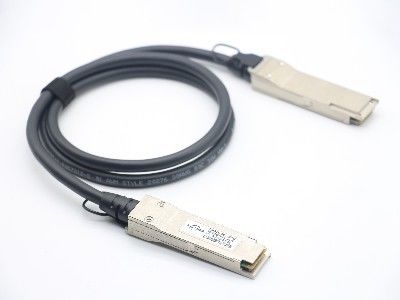

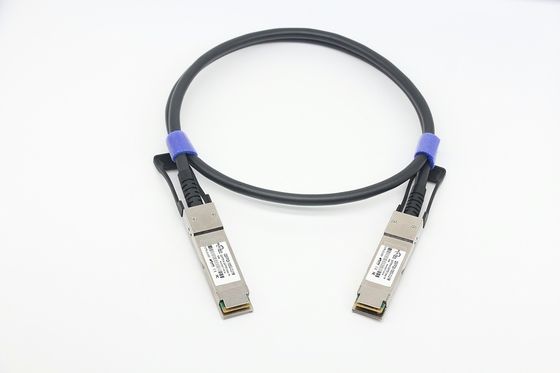

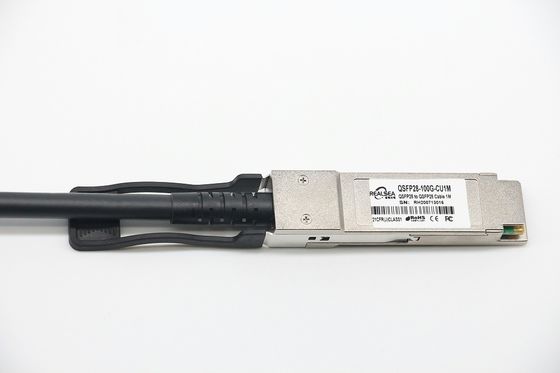

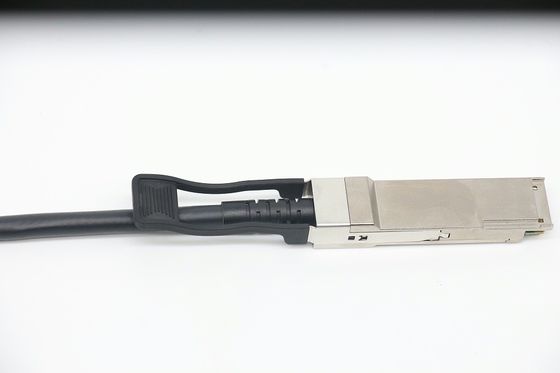

Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission

Name: Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Brand: YINGDA TECHNOLOGY LIMITED
SKU: QSFP28 100g cu1m
Price: 13.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	QSFP28 100g cu1m
MOQ:	1
Price:	US$7-20
Delivery Time:	3-7 working days
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Connector:

QSFP28 To QSFP28

Operating Temperature:

0°C To 70°C

Cable Type:

30/24AWG

Compliance Standards:

RoHS/CE/FCC

Product Type:

Fiber Optic Transceivers

Type:

QSFP+ To QSFP+

Data Transfer Rate:

40 Gbps

Distance:

1m 2m 3m 5m

Temp:

0~70

Supply Ability:

1000000per month

Highlight:

1M DAC Cable

QSFP28 to QSFP28 DAC Cable

40 Gbps DAC Cable

Product Description

Description

The QSFP28 high-speed cable is applied in data center interconnection scenarios such as 100G Ethernet and InfiniBand. It is 100% compatible with all series of brand servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other full series of devices. The QSFP28 high-speed cable has advantages such as extremely high reliability, low cost and low power consumption.

Technical Parameter

Product Model	QSFP28-100G-DAC
Transmission rate	100G
Transmission distance	1-5M (optional)
Packaging form	QSFP28 to QSFP28
Cable Type	30AWG/24AWG
Brand	YINGDA
Compatible with brand	Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature	0~70℃
Warranty	3Years
Cable material	PVC
Power supply voltage	3.3V

Features

Supports hot-swappable QSFP+ form factor
4-channel full-duplex active copper transceiver
Maximum rate up to 100Gbps
Compliant with QSFP28 MSA and IEEE 802.3ba 40GBASE-CR4 standards
Compatible with Ethernet Fibre Channel and InfiniBand SDR/DDR/QDR standards
Connection length up to 5 meters via passive copper cable
Enhanced EMI/EMC performance
Available cable sizes from 30AWG to 24AWG
I2C-based two-wire serial interface with customizable EEPROM signature
Operating temperature: 0~70℃
RoHS 6.0 compliant

Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission 0

Widely Compatibility

To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco, Intel...

Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission 2

Wide Application

25G Ethernet

Data storage and communications industry switches/routers/hba

Enterprise Networking SAN

High Performance Computing Clusters

High-end servers

InfiniBand QDR and Base Station/ BBU/ RRU

More DAC cable for optional

			Item#
			Transmission rate
			Transmission distance
			Cable Type
			Packaging form

			SFP-10G-CUxM
			10G
			1-10M
			30/24AWG
			SFP+ to SFP+

			SFP28-25G-CUxM
			25G
			1-5M
			30/26AWG
			SFP28 to SFP28

			QSFP-40G-CUxM
			40G
			1-7M
			30/24AWG
			QSFP+ to QSFP+

			QSFP28-100G-CUxM
			100G
			1-5M
			30/26AWG
			QSFP28 to QSFP28

			QSFP-4x10G-CUxM
			40G
			1-7M
			30/24AWG
			QSFP+ to 4SFP+

			QSFP28-4x25G-CUxM
			100G
			1-5M
			30/26AWG
			QSFP28 to 4SFP28
