Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km
  • name
  • name
  • name

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km

MOQ: 1 pc
Price: negotiable
Standard Packaging: 1pcs / set
Delivery Period: 5 days after payment
Payment Method: Western Union, T/T
Supply Capacity: 5,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
AUA800U
Use:
FTTH Fiber Tester
Product Name:
MINI OTDR
Application:
Fiber Cable Test
Wavelength:
850/1300/1310/1550/1625
Interface:
SC/FC/ST
Connector Type:
UPC And APC Option
Color:
Orange/Black/White/Blue
Test Distance:
60-80KM
Highlight:

500m-100Km Fiber Optic Tester

,

1310/1550nm Fiber Optic Tester

,

Fiber Tool Kits OTDR

Product Description

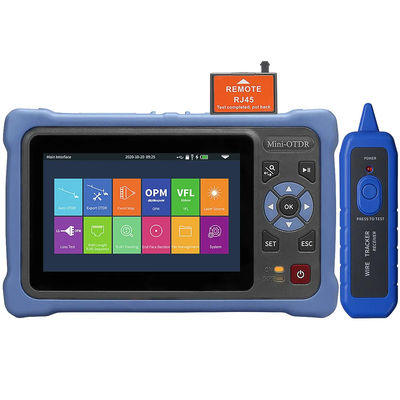

Touch screen type OTDR optical time domain reflectometer 100KM fiber length breakpoint inspection optical power red light integrated stable light source network cable test network cable length measurement line hunting 12 functions in one

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 0

The multifunctional Single Mode OTDR is used for FTTX, optical network engineering construction, fiber optic cable manufacturer. OTDR function support test wavelength 1310/1550nm, Dynamic Range 26dB/24dB. Measurement distance is 5m~100km. Build in others measuring tools, such as Event map, OPM, VFL, OLS, Optical Loss Test, RJ45 cable sequence/length test and tracking, analysis software. 8G TF card memory. Equipped with 3.7V/4000mAh high-density polymer lithium battery. Using this OTDR optical fiber Tester makes working conditions easy and increasing productivity.



Applications
It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.



Detail information

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 1

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 2

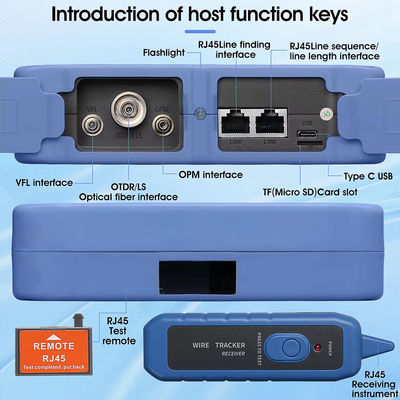

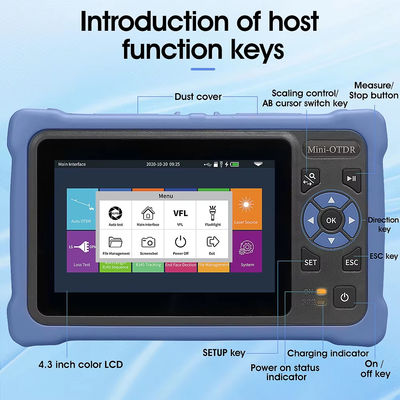

1. VFL red light source interface(2.5mm currency SC/FC/ST)

2.OTDR/Stable light source interface( can be replaced at will SC/UPC, FC/UPC)

3.OPM Optical power meter interface(2.5mm currency SC/FC/ST)

4. LED Lamo Flashlight



Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 3

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 4

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 5

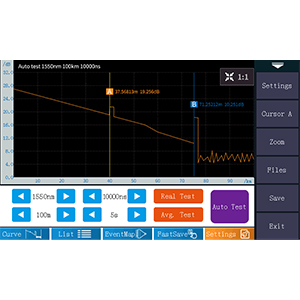

Auto OTDR

It only needs to set the wavelength and measurement time, other parameters are automatically selected by the instrument to complete the test. No complex setting, one key operation

Expert OTDR

Testing after setting parameters such as wavelength, test range and pulse width etc.

By selecting the appropriate measurement parameters in expert mode, the test results will be more accurate. After the test is completed, information includes length, total loss and number of events. You can zoom in on the curve to see the details of each event.

The curve obtained by manual test more satisfies your actual requirements.

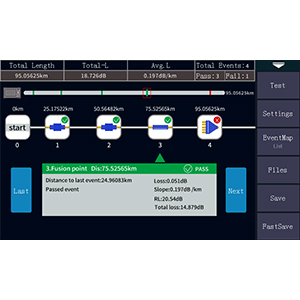

Event Map(ILOM)

One key automatic test, information such as the length of the optical fiber link to be measured, the type of the joint and the position of the breakpoint are displayed graphically. The result is easy is clear and easy to understand.





Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 6



  • What's in the package?

1x OTDR Host 1x Adapter 1x Wire tracker 1x USB cable 1xFC/APC-FC/UPC

1x FC adapter (install on the OTDR)

1xSC adapter

1x 8G TF card

1x User Manual in English

1x Calibration Certificate

10x Clean Cotton Slices

1x Shoulder strap 1x Backpack

Fiber Tool Kits OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 7
