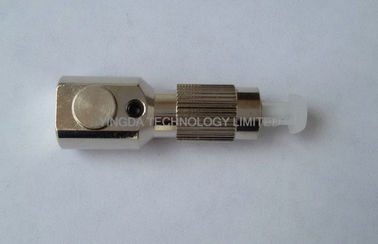

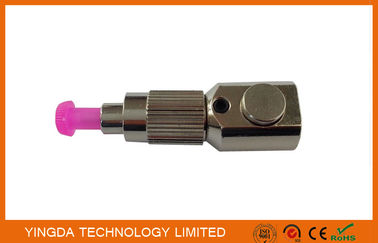

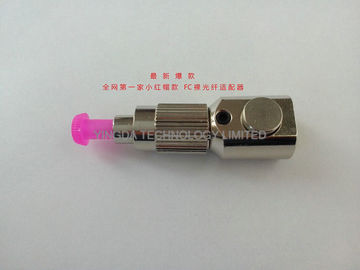

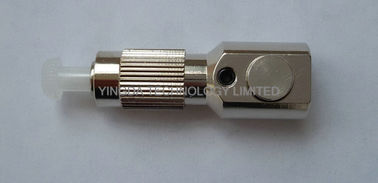

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

Name: FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FC bare fibre adapter
Price: 1.04 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FC bare fibre adapter
MOQ:	10PCS
Price:	0.04USD-2.15USD

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

iso

MATERIAL:

Metal

Dust Cap Color:

Green

Type:

Fiber Adaptor

Shape:

Bare Fiber 250um Adapter

Fiber Mode:

Single Mode

Insertion Loss:

<1dB

Repeatability:

< 0.2db

Warranty:

2 Years

Temperature:

-40 To +85 Degree

Product Name:

Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette

Packaging Details:

1PCS / BOX

Highlight:

fiber optic coupler

fiber optic adaptor

Product Description

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

Bare fiber adapters provide a simple and effective way to use un-terminated fibers

with commercial receptacles.

Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily

removed with piano wire, allowing hundreds of insertions. They are recommended for power meter

hook-ups, temporary system repairs or wherever a quick fiber connections is required.

1. Application:

Bare fiber connection.
Optical fiber through connection test.
Two-way communication during optical-fiber cable installation and maintenance.

2. Feature:

Simple to use
Suitable for fibers with coating diameters of 250um & 900um.
Optical fiber with hole dia. between 123-127um can be used.
Multimode or Singlemode connectors.

3. Specification:

Item		LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
Type		Multi-Mode	Single-Mode
Light Characteristic	OperatingWavelength	850nm&1300nm	1310nm & 1550nm
	Typical Insertion Loss	0.2dB & 0.2dB	0.2dB & 0.2dB
Mechanical Testing	Repeatability	≤0.2dB
	Exchange	≤0.2dB
	Durability	>1000 (Times)
Temperature	Storage Temperature	25 ~+85
	OperatingTemperature	25 ~+85
Length,Color,Out-Diameter,Fiber counts		According to the customers' requirement

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter 0
