Single Mdoe Network Bare Fiber Adaptor Metal Round Boot ST To LC Fiber Adapter

Single Mdoe Network Bare Fiber Adaptor Metal Round Boot ST To LC Fiber Adapter

  • High Light

    fiber optic coupler

    ,

    fiber optic adaptor

  • MATERIAL
    Metal
  • Dust Cap Color
    Green
  • Type
    Fiber Adaptor
  • Shape
    Bare Fiber 250um Adapter
  • Fiber Mode
    Single Mode
  • Insertion Loss
    <1dB
  • Repeatability
    < 0.2db
  • Warranty
    2 Years
  • Temperature
    -40 To +85 Degree
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    iso
  • Model Number
    FC bare fibre adapter
  • Minimum Order Quantity
    10PCS
  • Packaging Details
    1PCS / BOX

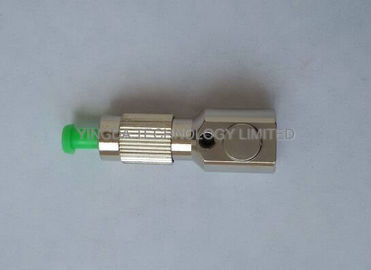

Single Mdoe Network Bare Fiber Adaptor Metal Round Boot ST To LC Fiber Adapter

Single Mdoe Network Bare Fiber Adaptor Metal Round Boot ST To LC Fiber Adapter





Description



Bare fiber adaptoris a mechanical device designed to align fiber-optic connectors. It contains the

interconnect sleeve, that holds the two ferrules together.



Application



  • WANs, LANs, CATV
  • Testing equipment
  • Communication system
  • Telecommunication networks
  • Temporarily connect bare fiber



Features



  1. Various receptacle type
  2. High Stability
  3. Easy to operate
  4. Repeated use

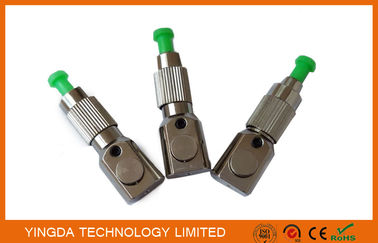

Single Mdoe Network Bare Fiber Adaptor Metal Round Boot ST To LC Fiber Adapter 0

Availability



1) SC

2) ST

3) LC

4) FC

5) SMA



Specification



Ferrule ID

125.5u, 126um,

Insertion loss

< 1db

Repeat ability

< 0.2db

Life time

>= 1000 times

Operating Temp

-40 to +85 degree





Product list

bare fiber adaptor



Item

Specification

Item

Specification

Adapter
Singlemdoe

(Ceramic Sleeve)

ST (metal body)

Adapter
Multimode

(Bronze Sleeve)

ST (metal body)

SC/PC

SC/PC

SC/PC/duplex

SC/PC/duplex

SC/APC

SC/APC

SC/APC/duplex

SC/APC/duplex

FC/PC

FC/PC

FC (D-type metal )

FC (D-type metal )

LC/PC

LC/PC

LC/PC/duplex

LC/PC/duplex

LC/APC

LC/APC

LC/APC/duplex

LC/APC/duplex

DIN/PC/APC

DIN/PC/APC

E2000/PC

E2000/PC

E2000/APC

E2000/APC

MTRJ plastic

MTRJ plastic

Hybrid Adaptor
Singlemdoe

(Ceramic Sleeve)

FC-SC

Hybrid Adaptor
Multimode

(Bronze Sleeve)

FC-SC

FC-ST

FC-ST

SC-ST

SC-ST

DIN-SC

DIN-SC

DIN-ST

DIN-ST

DIN-FC

DIN-FC



Product and test insturments:

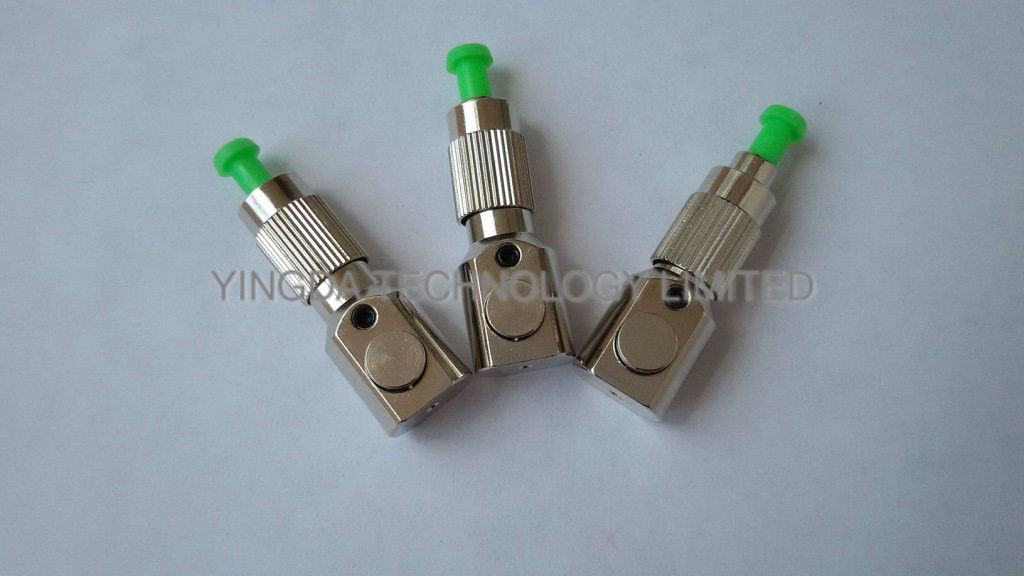

Single Mdoe Network Bare Fiber Adaptor Metal Round Boot ST To LC Fiber Adapter 1
