ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable
  • name
  • name
  • name
  • name

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable

MOQ: 100PCS
Price: Negotiable
Standard Packaging: 1pc/ box, 200 pcs/ carton box
Delivery Period: 2-5days
Payment Method: Western Union, T/T, MoneyGram
Supply Capacity: 500000PCS a month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO CE ROHS
Model Number
YDCS-CT23
Color:
Drak Greem+black
Outer Dimension:
65mm(W)x120mm(D)x20mm(H)
Suitable For:
2*3mm ,2mm,3mm Drop Cable
Applicable Fiber:
1core,2cores
Use Time:
1000+times
Fiber Coating Diameter:
Φ250um & φ900um
Package:
1pcs In A Box
Material:
Carbon Steel
Strength Member Wire:
FRP / Steel Wire
Highlight:

ROHS Fiber Tool Kits

,

2.0*3.0mm Drop Cable Stripper

,

FTTH Drop Cable Stripper

Product Description



2*3mm FTTH Drop Cable Stripper



The stripper is a professional FTTH Optical Fiber to the home tool, which is specially used for the stripper optical cable. It has an improved structure, simple operation, flat incision and no damage to the optical fiber,



It is an indispensable tool for stripping sheath and strength member. It has the characteristics of small volume, light weight and easy to carry.

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 0ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 1



Technical information:

ITEM Drop cable stripper
Model YDCS-23
Fiber count 1core, 2core
Applicable cable 2.0*3.0mm drop cable, 2mm / 3mm indoor cable
Fiber coating diameter Φ250um & φ900um
Fiber cladding diameter 125um
Strength member wire FRP / steel wire
Body Material carbon steel
Net weight 0.17kg



Features



l It does not damage the optical fiber, can cut horizontally or longitudinally.

l Light weight, small volume and simple operation and carry with.

l There are two straight blades in the transverse direction and one circular blade in the longitudinal direction.

l It is customized to strip1-core,2-core drop cable to ensure that the optical fiber is not damaged.

l Ergonomic anti-skid handle, made of PVC, is comfortable to grasp and labor-saving in crimping.

l It can not only cut off the out sheath, but also the plastic or metal reinforced core at the same time.

l Carbon steel body, good hardness, not easy to rust, firm and deformation free, durable and long service life.

l Sharp jaws, fast cutting speed.

l The latest upgraded return spring makes fiber stripping easier.

l Clear stripping scale, fast to fix length and cut, save time and material.

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 2



ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 3

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 4

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 5

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 6

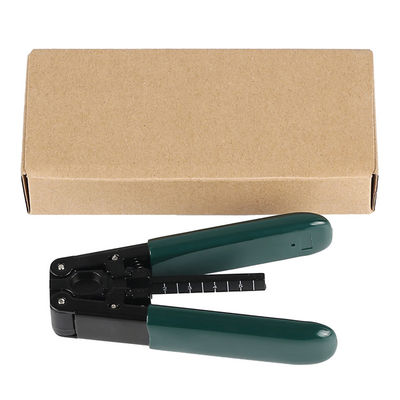

Pack information:

Individual package, 1pc in box.

ROHS Fiber Tool Kits Drop Cable Stripper For 2.0*3.0mm FTTH Drop Cable 7
