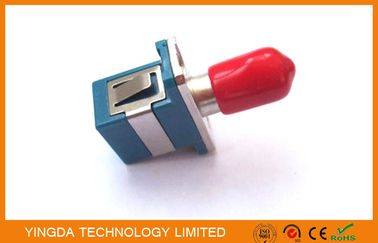

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve
  • name
  • name
  • name
  • name

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve

MOQ: 100 PCS
Price: 0.04USD-2.15USD
Standard Packaging: 1 pc / bag or 10 pc/ blister box
Delivery Period: 3 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
AD-SC-ST-SX-M
Material:
Metal, Plastic
Dust Cap Color:
Red. Black
Type:
Hybrid Adapter
Weight:
12g
Fiber Type:
Single-mode, Multimode
Sleeve Material:
Ceramic
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

fiber optic coupler

,

bare fiber adapter

Product Description

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve





Description:



ST/SC Hybrid adapter can connect SC and ST both connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Features

  1. Easy to use
  2. Can be embedded in any termination box, splicing tray and etc.
  3. Both simplex and duplex type is available
  4. Both UPC and APC polishing mode is available
  5. FC to ST adaptor
  6. Using metal material makes it firm and durable
  7. Zirconia internal tube ensures a low insertion loss



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C





SPECIFICATIONS



Insertion Loss

<0.20 dB

Plug and unplug force

200-600(g/f)

Durability

plug and unplug 1000times

Operating Temperature

-40+85°C





Order information



Housing Material

Sleeve Material

Channel

zinc alloy

Ceramic

Simplex

 Plastic

 Phosphor bronze

duplex



Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve 0Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve 1



We can offer all kinds of fiber optic adapters,100% test before delivery:



Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve 2

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve 3Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve 4







Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

E
E*n
Chile Aug 23.2023
Helpful (9)
Good quality, IP65 waterproof. will continue to cooperate with YINGDA
C
c*t
Czech Republic Jun 6.2023
Helpful (20)
Fiber cleaners were sent on time and delivered very quickly. Price is great and their SC cleaners do their job very well. Will continue cooperation further.
H
H*d
Morocco Sep 6.2022
Helpful (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
Tags:

fiber optic coupler,

bare fiber adapter,

fiber optic adaptor
