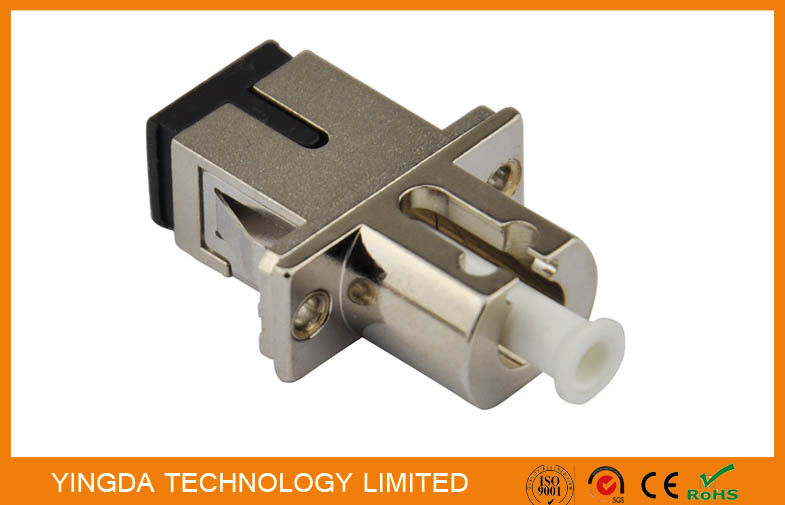

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter
  • Name
  • Name
  • Name
  • Name
  • Name

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter

MOQ: 100 PCS
Price: 0.04USD-2.15USD
Standard Packaging: 1 pc / bag or 10 pc/ blister box
Delivery Period: 3 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
AD-LC M/SC F-SX-M
Material:
Metal, Plastic
Dust Cap Color:
Red
Type:
Hybrid Adapter
Weight:
12g
Fiber Type:
Single-mode, Multimode
Sleeve Material:
Ceramic
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

fiber optic coupler

,

bare fiber adapter

Product Description

CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter





Description:



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.





Features

  1. Low insertion loss <0.2dB
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Order information



Housing Material

Sleeve Material

Channel

zinc alloy

Ceramic

Simplex

 Plastic

 Phosphor bronze

duplex



CATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple AdapterCATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple AdapterCATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple AdapterCATV Simplex Fiber Optic Adapter SC / LC , Zinc Alloy UPC and APC Multiple Adapter
