Fiber optic Tool Kits Cable Stripper
  • name
  • name
  • name
  • name

Fiber optic Tool Kits Cable Stripper

MOQ: 1 pc
Price: negotiable
Standard Packaging: 1pcs / set
Delivery Period: 5 days after payment
Payment Method: Western Union, T/T
Supply Capacity: 5,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
CT-30A
Product Name:
Fiber Optic Cleaver
Application:
Fiber Optic Splicing Tools
Package:

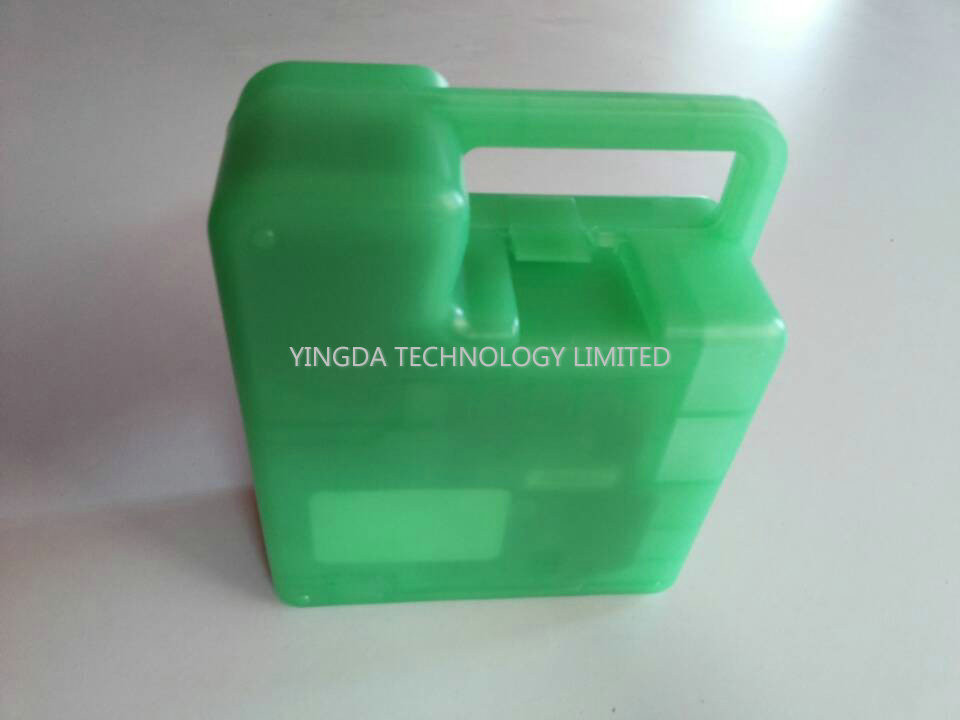

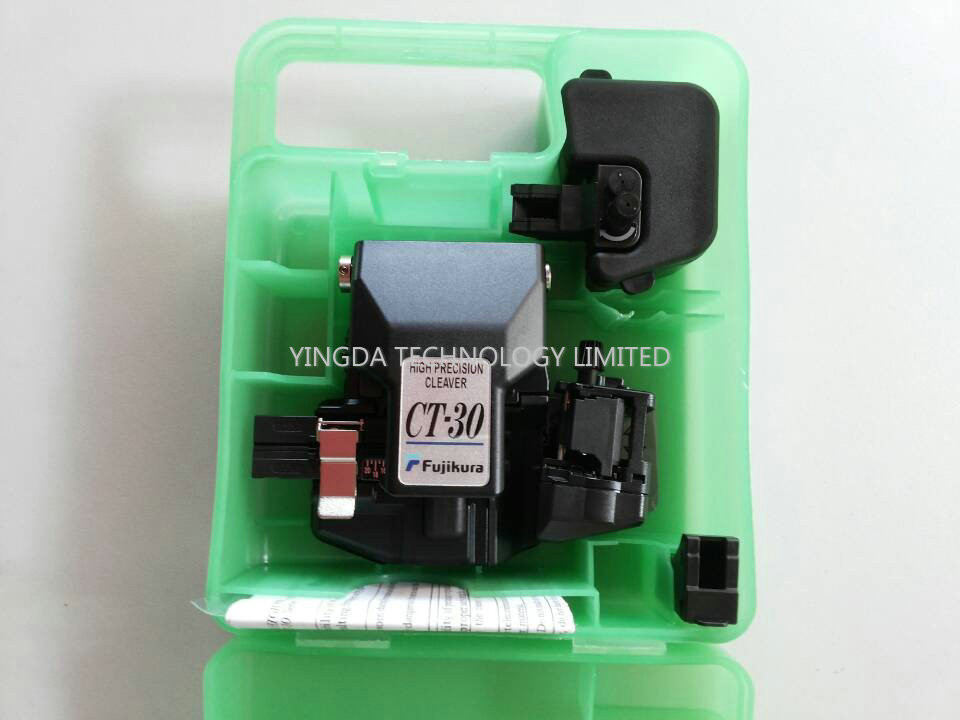

Green Plastic Box
Color:
Black
Highlight:

fiber optic tool kits

,

fiber polishing film

Product Description

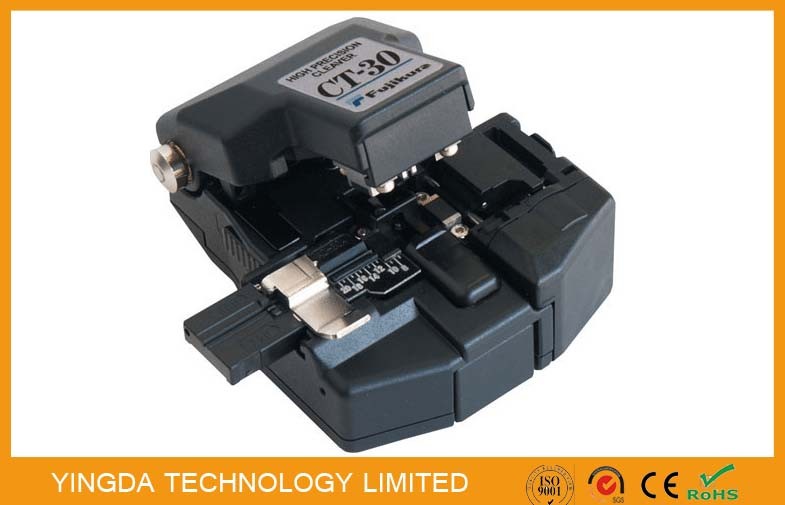

Fiber Tool Kits Fujikura CT-30 CT-30A High Precision Fiber Cleaver Cable Stripper





The CT-30 Cleaver sets the standard for portable, reliable and ease of use. Available
for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30

Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for

excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck

and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,

or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap

collector conveniently stores fiber shards until they can be safely discarded.





Cable Jointing Kit Technical specifications:

  1. Fiber: silicon optical fiber, optical fiber
  2. Cutting naked fiber diameter: 125 m
  3. Optical fiber coating diameter: 250~900 M
  4. Cutting angle: 0.5 degrees (single core fiber)
  5. Cutting blade life: 48000 times (1000 times* 16 times rotate the blade* 3 height)
  6. Size / weight: 102W * 82D * 46H (mm) / 210g (contain large capacity optical fiber residue collector)



Cable Jointing Kit Application

  • Telecommunications Engineering and repair
  • CATV engineering and maintenance
  • Optical cable manufacturers



Fiber Optic tools kits Specification



Applicable fibers

Silica optical fiber

Bare fiber diameter

125mm

Cleaving angle

0.5 degrees with single fiber

Blade life

48,000 fibers (1,000 fibers x 3 height x 16 positions)

Blade positions

3 height and 16 rotating positions

Dimensions

102W x 82D x 46H (mm) with FC-02 and FDB-03

Weight

210g with FC-02 and FDB-03



Order information



Model

Cladding diameter

Fiber count

Cleaving length

Fiber placing

CT-30

125mm

Up to 12 fiber

10mm

Fiber holder

CT-30A

125mm

Single fiber

6 to 20mm

Fiber plate (AD-30A)

CT-30B

125mm

Single fiber

16mm

Fiber plat
