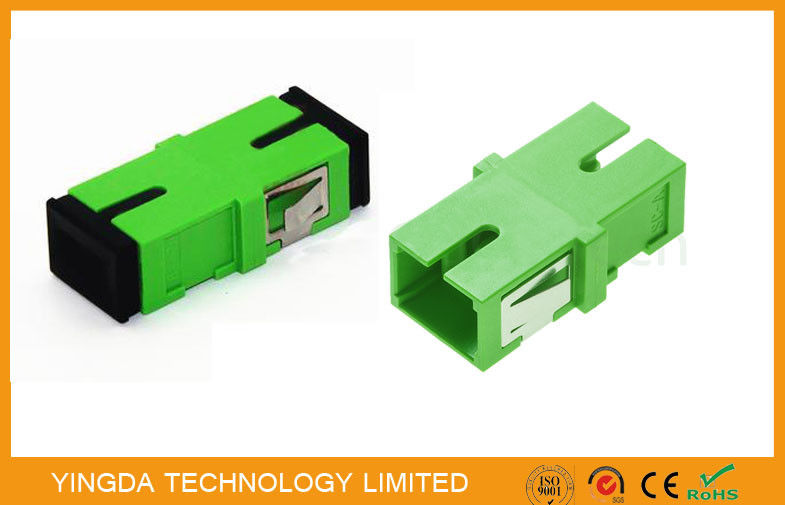

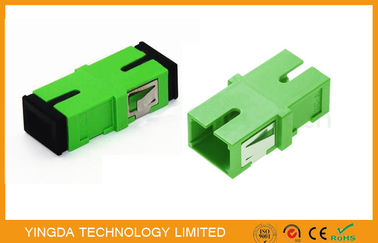

Fiber Optic Flange Adapter SC APC

MOQ: 1000pcs
Price: 0.04USD-2.15USD
Standard Packaging: 50cs / box
Delivery Period: 5 working days
Payment Method: T/T or western Union
Supply Capacity: 200km/ month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
AD-SCA-02/W
Fiber Count:
Duplex 2 Fibers
Connector Material:
Plastic
Adapter Color:
Green
Sleeve Material:
Ceramic
Fiber Type:
Single-mode 9/125UM
Polish Mode:
APC
Insetion Loss:
< 0.2dB
Wavelength:
1310nm, 1550nm
House Material:
PBT / ABS
Connector:
SC
Flange:
No Have
Application:
Adapter Panel, ODF Frame, Rack, Cabinet, Closure Etc
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

fiber optic adaptor

,

bare fiber adapter

Product Description

Fiber Optic Adapter SC APC Short Flange Singlemode No Flange Fiber Adapter





Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.

 This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.

 Additionally, these couplers can be used with PC, APC, UPC style fiber connectors.



Simplex, duplex and quad adapters are available in plastic, without flanges, and in horizontal and

vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options

available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:

blue, beige, aqua, green,etc.





Features

  1. Insertion loss <0.2dB
  2. 100% test in factory
  3. Durability >1000 times
  4. Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
  5. Plastic ABS/PBT body, light weight, durable
  6. Stainless steel mounting clips allow for easy snap in installation
  7. Ceramic alignment sleeve supports Single mode applications



Specification



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





Order information



  1. SC Quad Singlemode Adapter w/o flange (blue)
  2. SC/APC Quad Singlemode Adapter w/o flange (green)
  3. SC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
  4. SC Quad Multimode Adapter w/o flange (beige)



More product show

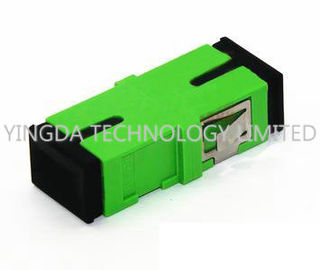

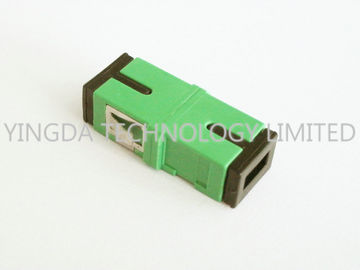

Fiber Optic Flange Adapter SC APC 0Fiber Optic Flange Adapter SC APC 1Fiber Optic Flange Adapter SC APC 2Fiber Optic Flange Adapter SC APC 3
