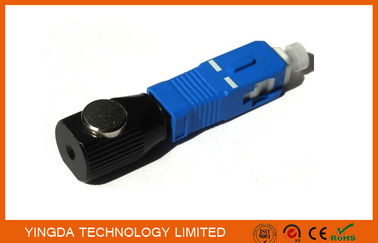

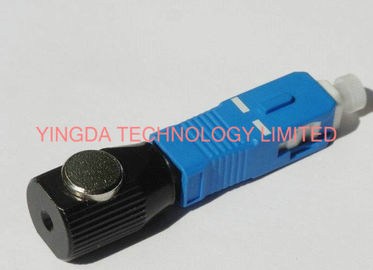

Length 40mm Single - mode Bare Fiber Optic Adapter SC FC LC ST Metal Round

Length 40mm Single - mode Bare Fiber Optic Adapter SC FC LC ST Metal Round

  • High Light

    fiber optic coupler

    ,

    bare fiber adapter

  • Material
    Metal, Plastic
  • House Color
    Blue
  • Shape
    Round
  • Type
    Bare Fiber Optic Adapter
  • Weight
    12g
  • Fiber Type
    Single-mode
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    ADB-SC-RD
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / bag or 10 pc/ blister box
  • Delivery Time
    3 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

Length 40mm Single - mode Bare Fiber Optic Adapter SC FC LC ST Metal Round

SC Bare Fiber Adapter, Bare Fiber Optic Adapter SC FC LC ST Metal Round





Description





FC SC LC ST Round Bare Fiber Adapter can link bared optic and light source ,testing equipment,

light appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,

the other side is a connector that can plug into the equipment.



The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.



Feature

  1. Simplex and quickly interconnect
  2. Low insertion loss
  3. Good repeatability and exchangeability good
  4. Stabilize the credibility
  5. Interchangeable connector heads available
  6. SC FC LC ST connectors available
  7. Cutomer package OK
  8. 10PCS/ blister box, save shipping cost



Application

  • Testing fiber on the reel
  • Optical fiber through connection test
  • Two-way communication during optical-fiber cable installation and maintenance
  • First-aid repair,temporary connection and testing on optical fiber project.



Specification



Shape

Square / Round

Connector

FC/PC, SC/PC, ST/PC, LC/PC

Applicable fiber

SM & MM

Ferrule diameter

123-127 um

Ferrule outder diameter

2.499mm 1.249mm

Cable diameter

250um & 900um

Insertion Loss

≤0.20dB

Repeat ability

<0.2dB

Tensile strength

100g

Plug time

 >1000 times

Operating Temperature

-40 ~+85℃

Size

Length:40mm, diameter:30mm
