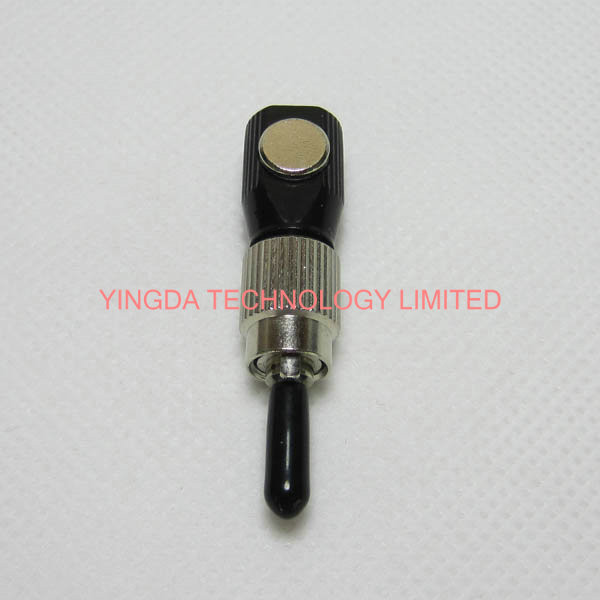

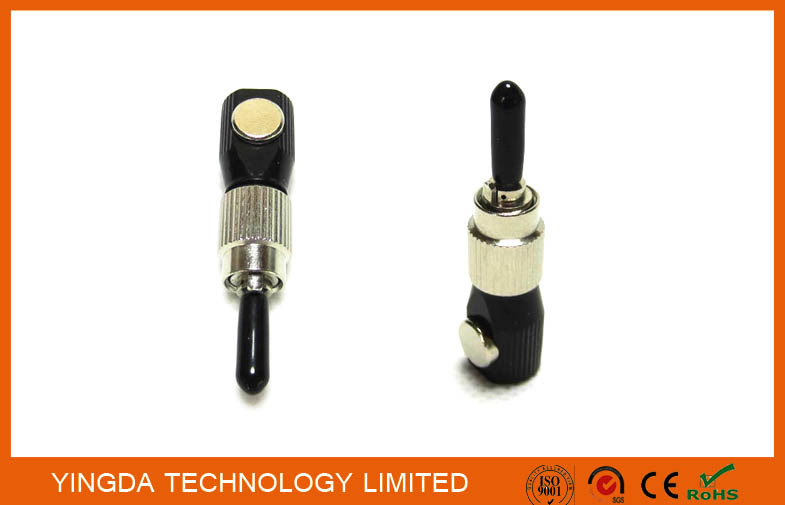

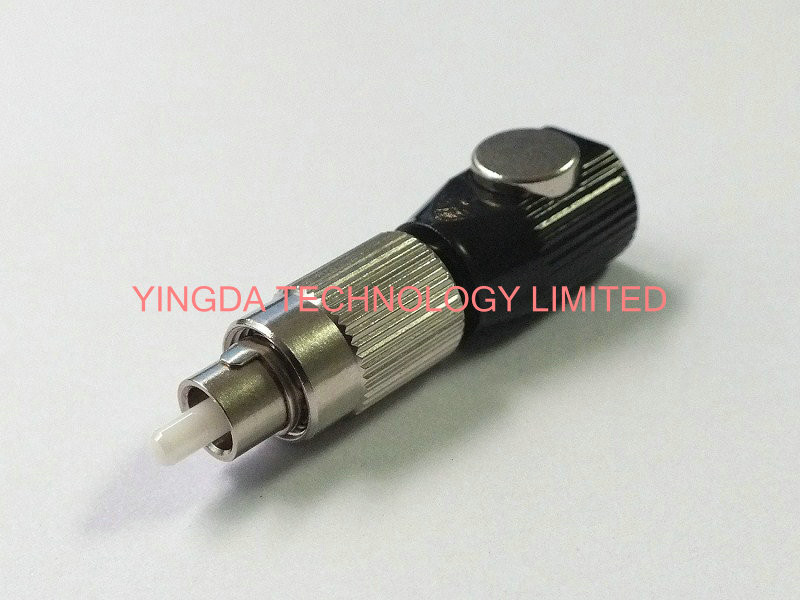

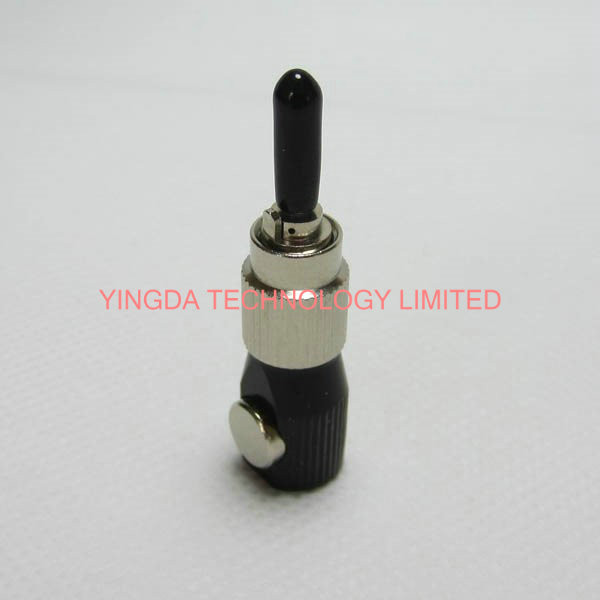

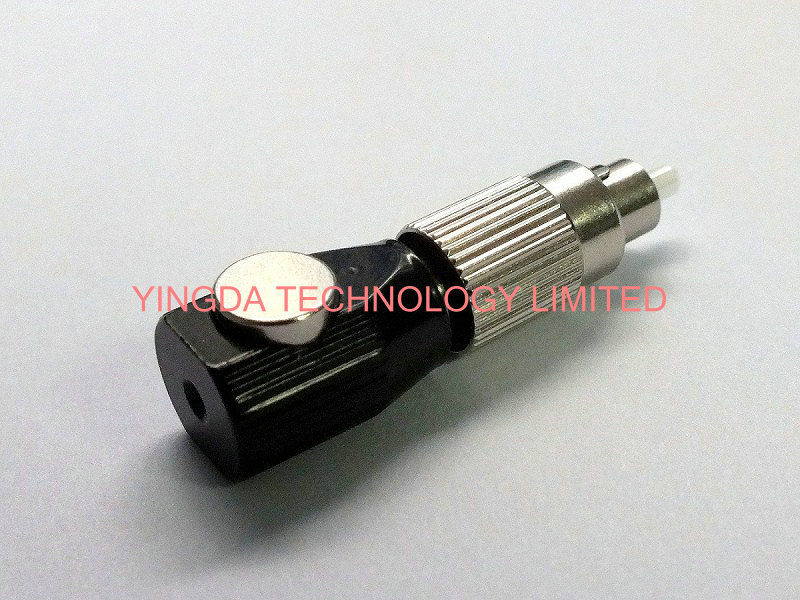

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Color | Blue, Gray, Black |
|---|---|---|---|
| Shape | Round | Type | Fiber Optic Bare Adapter |
| Weight | 12g | Fiber Type | Single-mode |
| High Light | fiber optic coupler,bare fiber adapter |
||
Product Description
FC Bare Fiber Adapter, Bare Fiber Optic Adapter Coupler FC / PC Round
Description
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
FC Round Bare Fiber Adapter can link bared optic and light source ,testing equipment, light
appearance etc,and the products used for test appearance and temporary conjunction between
fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one
side, the other side is a connector that can plug into the equipment.
Feature
- Simplex and quickly interconnect
- Low insertion loss
- Repeatability and exchangeability good
- Stabilize the credibility
- Interchangeable connector heads available
Application
- Testing fiber on the reel
- Optical fiber through connection test
- Two-way communication during optical-fiber cable installation and maintenance
- First-aid repair,temporary connection and testing on optical fiber project.
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
