LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type

Products

SFP Module

sales@yingdapc.cn

+86 18688982406

Contact Now

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type

MOQ:	5 PCS
Price:	Negotiable
Standard Packaging:	1 pc / plastoc blister box or customized
Delivery Period:	3-5 days
Payment Method:	T/T or western Union
Supply Capacity:	50,000pcs per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

YINGDA

Certification

Model Number

ATTN-MVOA-LCS-02

Attenuation:

0- -40 DB Variable

Test Wavelength:

1260~1620 Nm

Type:

Mechanical Adjustable Attenuator

Working Temperature::

-40～+85 (℃)

Fiber Optic Type:

Single-mode,multimode

Connector Type:

SC ST FC LC MU All Ok

Polish:

UPC APC PC

Connector Plug Time:

1000 Times

Package:

1pc In A Blister Box

Connector Color:

Green,blue,beige

Cable Diameter:

0.9mm, 2.0mm

Product Name:

Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator

Highlight:

build out attenuator

inline optical attenuator

Product Description

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type Singlemode

Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined

attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its

Impedance. Attenuators are widely used in the cable television system in order to meet the

requirements of multi port for electric level such as the amplifier input, output level control,

branch attenuation control.

Product features:

Ultra high resolution
Environment protection, perfect stability and reliability
Can be used in different wavelength (1260-1620nm)

Application:

Telecommunication Network
CATV Network
Data communication
Instrumentation
Local Area Network
Fiber Optic Access Network

Technical Performance

Item	value
Operating Wavelength (nm)	1310±30&1550±30
Insertion Loss (dB)	<0.9 (With connectors)
Max. Attenuation Range (dB)	0.9-50
Insertion Loss Temperature Sensitivity (dB/°C )	<0.005
PDL (dB)	<0.15 (<15dBattenuation) <0.25 (16~50dBattenuation)
Return Loss (dB)	>45 (UPC)
Maximum Power Handling (mW)	300
Operating Temperature (°C)	-5~+70
Storage Temperature (°C)	-40 ~+85
Connector type	LC / UPC
Pigtail	SMF-28e(Φ2.0mmcable)
Cable Length (m)	1.0~1.1
Dimension (mm)	26.0 x 16.0 x 16.0

Note: under normal conditions, not including connectors, welding device and end face loss

Order information

Item

Wavelength

working/nm

Fiber type

Pigtail length

/meter

Connector

Mechanical Variable

Attenuator (MVOA)

F=1260~1620
C=customized

SM=single mode
MM=multimode

1=1.0m
2=2.0m
3=3.0m
C=customized

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC

FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm

connectors: SC FC LC ST ,etc

Package: blister box individual package

Polish method: UPC APC PC

Cable type: singlemode, multimode

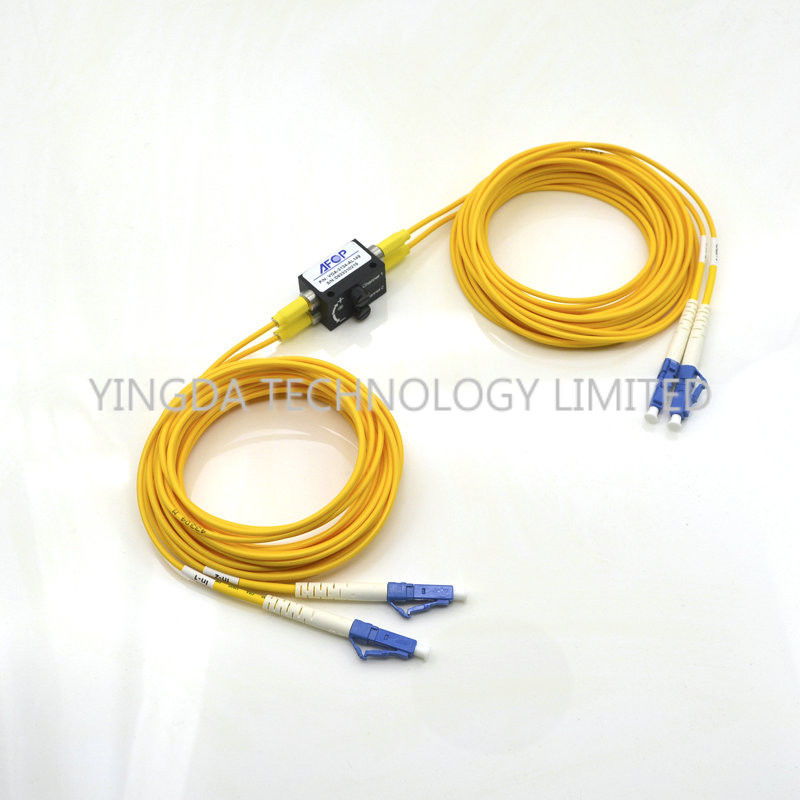

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type 0

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type 1

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

4 stars

3 stars

2 stars

1 stars

All Reviews

1*A

Canada Apr 28.2025

Helpful (3)

Excellent product, complete Items as specified. Special thanks to ms. Milla for such Great service.

L*m

South Korea Jan 31.2025

Helpful (5)

It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB

F*k

Ecuador Feb 26.2021

Helpful (3)

Excellent quality, as always! Fantastic product and service!
