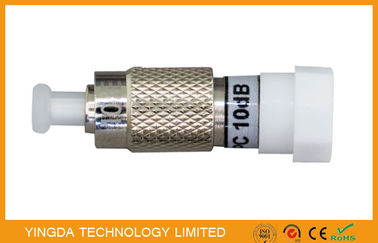

FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU

FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU

  • High Light

    optical fiber attenuator

    ,

    inline optical attenuator

  • Attenuation
    1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc
  • Test Wavelength
    1310nm /1550nm
  • Body Material
    Metal
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+75 (℃)
  • Fiber Optic Type
    Single-mode,multimode
  • Industry Standard
    Telcordia TA-NWT-001209
  • Connector Type
    SC FC LC ST E2000 MU
  • Dust Cap Color
    White
  • Connector Shape
    Plug-in Type
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-FCS-01-B03
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / plastoc bag
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU

FC Plug-in Attenuator 10dB, Build Out Attenuator FC/PC 10dB Female to Male





Optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety of

optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the

adapter and attenuator both functions.





YINGDA TECHNOLOGY LIMITED provide high quality of Male to Female Plug-in type fixed optical

attenuator, attenuation value 1dB ~ 20dB,use imported fiber with light absorbing metal ion, with

superior environmental stability and low reflectivity. The front end of attenuator is the male head,

can directly insert into the adapter of the receiving equipment or distribution panel. Its back-end

is female connector, connect with the jumper .



Male and female type (M-F) optical fiber attenuator has SC, FC, ST, LC, MU,etc.





Features:

  1. Bellcore Compliant
  2. Wavelength Independent (DWDM)
  3. Durability (well over 100mw)
  4. Simple and Reliable Structure
  5. Applications:
  6. Telecommunication Networks
  7. Data Networks
  8. Video & CATV



Application



1.Optic-fiber Communication Systems

2.Optical Fiber Sensor

3.Optical Fiber Test Equipment

4.Optic-fiber CATV


Specification



Item

Standard

Wavelength Flattened

Broadband

Operating Wavelength(nm)

1310 or 1550

1310/1550

Bandwidth(nm)

±20

±40

Attenuation value (dB)

1~30

Return Loss (dB)

≥40

Operating Temperature oC

-40~+85

Storage Temperature oC

-40~+85

Industry Standard

Telcordia TA-NWT-001209
