SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB
  • name
  • name
  • name
  • name
  • name

SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB

MOQ: 5 PCS
Price: Negotiable
Standard Packaging: 1 pc / plastoc blister box or customized
Delivery Period: 3-5 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
ATTN-Inline-VOA-01PC
Attenuation:
0- -40 DB Fixed
Test Wavelength:
1310nm, 1550nm ,850nm
Type:
Inline Fixed Attenuator
Working Temperature::
-40～+85 (℃)
Fiber Optic Type:
Single-mode,multimode
Connector Type:
SC ST FC LC MU All Ok
Polish:
UPC APC PC
Return Loss:
55dB
Connector Plug Time:
1000 Times
Package:
1pc In A Blister Box
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Highlight:

build out attenuator

,

inline optical attenuator

Product Description

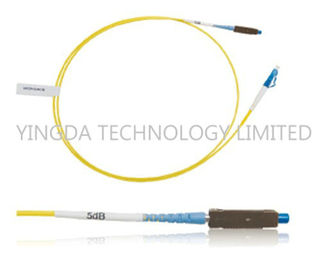

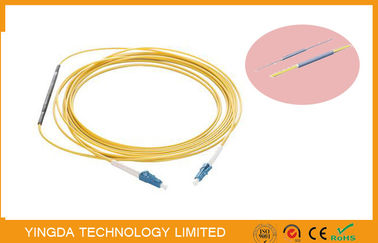

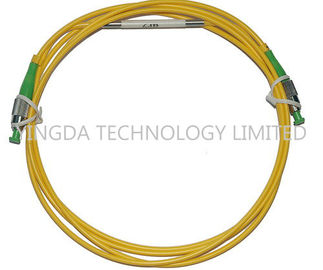

SC FC LC MU Inline Attenuator, Fixed In-line Attenuator SM 1Meter Range:1~40dB





InLine patchcord attenuators are applied when standard plug attenuators cannot be used (e.g. not

enough space in a closure) or when it is needed to attenuate an optical link by using not standard

connector type. Protection of a special attenuation part is made by rugged protection sleeve, which

ensures high durability and stability. InLine patchcord attenuators offered by Sylex are available from

cable with outer diameter of 2,8 mm  for better identification we can offer InLine patchcord attenuators

in 4 different colours: black, white, green and red.



Features

  • Optimized ion doped fiber technology
  • Various fixed attenuation available
  • Superior durability
  • Low polarization dependence
  • Superior spectral flatness and very low ripples
  • Withstands high optical power up to 1W
  • Telecordia std(GR-910-CORE) conformed



Application:

  1. Telecommunication Network
  2. CATV Network
  3. Data communication
  4. Instrumentation
  5. Local Area Network
  6. Fiber Optic Access Network





Specifications

Fiber Type

  Items

Single Mode

(9/125µm)

Multi Mode(50/125µm,

62.5/125µm)

Attenuation Value(dB)

1 to30

1 to 25

Operating Wavelength

1260 to1620

850 /1300

Return Loss(dB)

UPC

≥55

－

APC

≥65

－

Attenuation Tolerance(dB)

±0.5

Maximum power capability(W)

1

Operating Temperature

-10℃～+75℃

Storage Temperature

-40℃～+85℃



SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB 0SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB 1

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

S
Steven
Peru Mar 16.2023
Helpful (12)
YINGDA is always very fast to manufacture custom cables with high quality and reliability.
Review Image
Review Image
H
H*d
Morocco Sep 6.2022
Helpful (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
R
Rajeeb Lalchan
Turkey Jan 28.2022
Helpful (2)
The team helped me from start to finish with this special order. Always updated on the status. With so many bad issues in the past, i was worried when buying items from alibaba, but for this one it went 100% ok. The order arrived as discussed and all perfect. Thank you.
Tags:

build out attenuator,

inline optical attenuator,

optical fiber attenuator
