Fiber Optic Attenuator
Created with Pixso. Metal Fiber Optic Attenuator SC / PC SC FC ST 10 dB Male to Female High Power

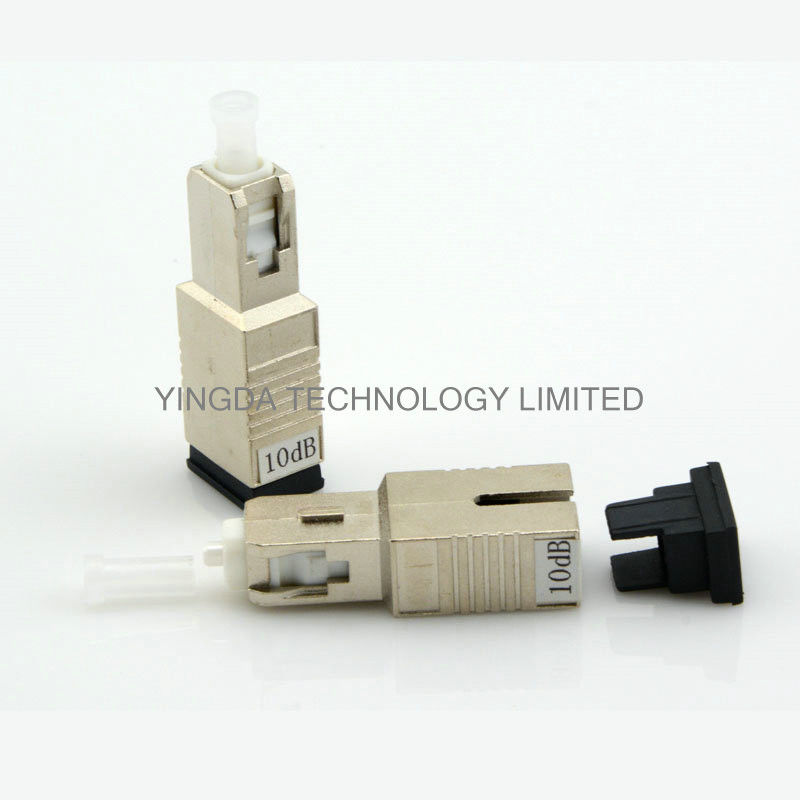

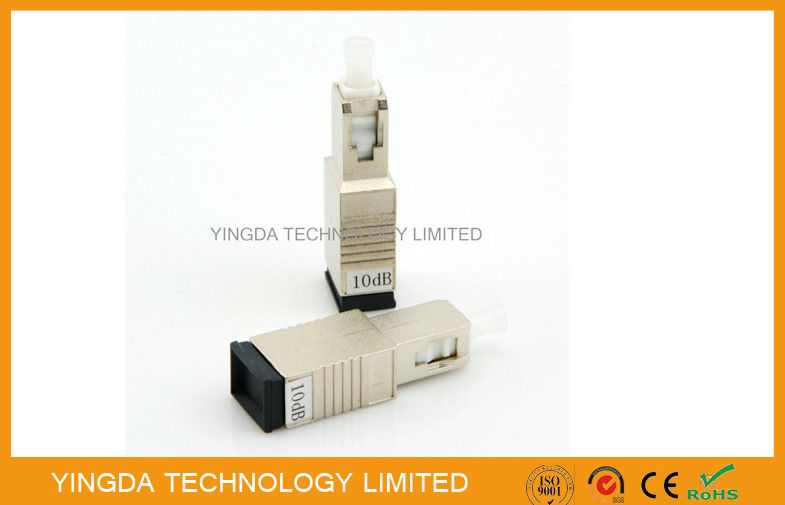

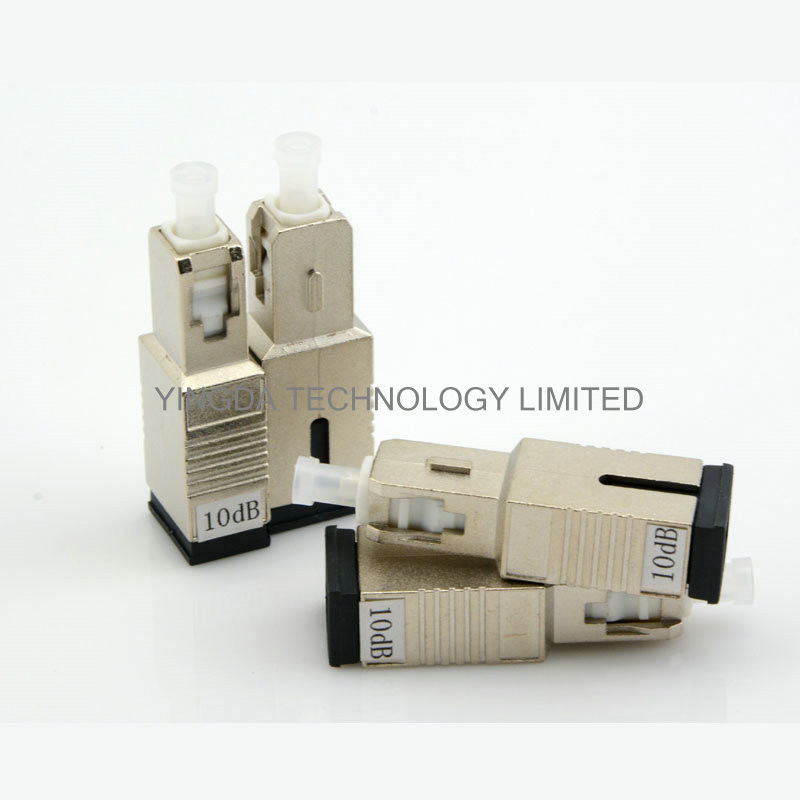

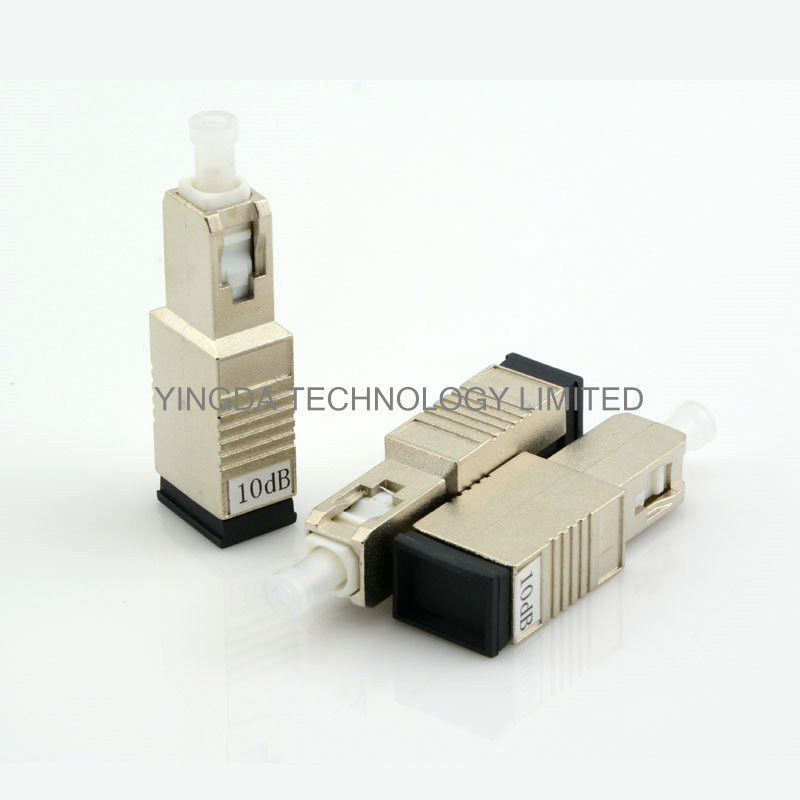

Metal Fiber Optic Attenuator SC / PC SC FC ST 10 dB Male to Female High Power

Brand Name: YINGDA
Model Number: ATTN-SCF-01M-B10
MOQ: 100PCS
Price: Negotiable
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Attenuation:
10 DB
Test Wavelength:
1310nm, 1550nm
Body Material:
Metal
Additional Loss:
0.1dB
Working Temperature::
-40~+85 (℃)
Fiber Optic Type:
Single-mode
Industry Standard:
Telcordia TA-NWT-001209
Connector Type:
SC/PC
Dust Cap:
Plastic Black
Connector Shape:
Male To Female Sc Attenuator
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Packaging Details:
1 pc / plastoc bag
Supply Ability:
50,000pcs per month
Highlight:

build out attenuator

,

optical fiber attenuator

Product Description

Metal Fiber Optic Attenuator SC/PC SC FC ST 10 dB Male to Female Blue





Fiber optic attenuator, as a kind of optical passive components, used in optical communication

system to debug the optical power performance,optical instrument calibration correction and fiber

optic signal attenuation. Products use attenation fiber which mixed with metal ions, it can adjust

the light power to the required level.



Features

  • Conforms to GR910
  • Simple use,low PD,High RL
  • Withsttand high power


Application

  • EDFA power amplifier
  • Power balance in the system
  • CATV
  • WDM power regulation



Specification



Item

standard

flat

broadband

Wavelength(nm)

1310 or 1550

1310 or 1550

1310 and 1550

Bandwidth(nm)

±20

±40

±40

Attenuation(dB)

1 ~ 30dB can be specified

Attenuation accuracy(dB)

0.5

Return loss(dB)

≥40

Working temperature(℃)

-40~+70

Storage temperature(℃)

-40~+85





Order information



Attenuator

Item

Adapter type



FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

SC/PC fixed attenuator 1/2/3/4/5/10/15dB

SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

Female to male

type (F-M)

FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB

FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB

LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

Variable(VOA) type

FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator

(MVOA attenuator)









Other types female to male attenuator



Metal Fiber Optic Attenuator SC / PC SC FC ST 10 dB Male to Female High Power 0
