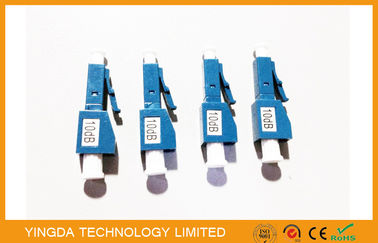

Fixed Type 10dB , 1 - 20dB Multimode Fiber Attenuator LC/PC For CATV FTTH
  • name
  • name
  • name

Fixed Type 10dB , 1 - 20dB Multimode Fiber Attenuator LC/PC For CATV FTTH

MOQ: 100PCS
Price: Negotiable
Standard Packaging: 1 pc / plastoc bag
Delivery Period: 3-5 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
ATTN-LCS-01-B10
Attenuation:
10dB
Test Wavelength:
1310nm, 1550nm
Body Material:
Plastic
Additional Loss:
0.1dB
Working Temperature::
-40～+85 (℃)
Fiber Optic Type:
Single-mode, Multimode
Industry Standard:
Telcordia TA-NWT-001209
Connector Type:
SC/APC
Color:
Dust Cap: White, Connector Body: Blue
Connector Shape:
Plug In Fixed 10dB
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Highlight:

optical fiber attenuator

,

inline optical attenuator

Product Description

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH





Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter type (known as

male to female) . According to the ferrule end face it can be divided into PC and APC inclined

eight degrees,attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.

Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.





Features

  1. Single mode and Multimode
  2. Zirconia sleeves or Phosphor bronze sleeves
  3. NTT standard compatible
  4. Increases panel density and quick plug in installation
  5. New SC footprint for duplex and 4 way design, more compact for most patch
  6. Compliant with Bellcore GR-910-CORE
  7. All parts compliant with ROHS



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP network



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB＜±0.5 dB

5-10dB＜±10%

11-25dB＜±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃～+75℃



Fixed Type 10dB , 1 - 20dB Multimode Fiber Attenuator LC/PC For CATV FTTH 0
