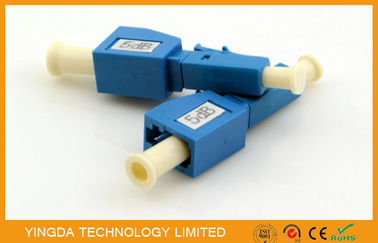

NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator

NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator

  • High Light

    build out attenuator

    ,

    inline optical attenuator

  • Attenuation
    1dB - 20dB Fix
  • Test Wavelength
    1310nm, 1550nm
  • Body Material
    Plastic
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single-mode, Multimode
  • Industry Standard
    Telcordia TA-NWT-001209
  • Connector Type
    SC/APC
  • Color
    Dust Cap: White, Connector Body: Blue
  • Connector Shape
    Female To Male Attenuator
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-LCS-01-B03
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / plastoc bag
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator

LC/UPC Build Out Attenuator, LC F-M Attenuator, LC Fixed Plug In Attenuator



Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter type (known as

male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.





Features

  1. Single mode and Multimode
  2. Zirconia sleeves or Phosphor bronze sleeves
  3. NTT standard compatible
  4. Increases panel density and quick plug in installation
  5. New SC footprint for duplex and 4 way design, more compact for most patch
  6. Compliant with Bellcore GR-910-CORE
  7. All parts compliant with ROHS



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP

According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

 attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃
