Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB

Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB

  • High Light

    build out attenuator

    ,

    optical fiber attenuator

  • Attenuation
    7dB, 10dB
  • Test Wavelength
    1310nm, 1550nm
  • Body Material
    Plastic
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single-mode, Multimode
  • Industry Standard
    Telcordia TA-NWT-001209
  • Connector Type
    MU
  • Dust Cap Color
    Black
  • Connector Shape
    Female To Male Attenuator
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-MU-01-B07
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / plastoc bag
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB

FC/APC Female To Male Attenuator (FC APC F-M ), Plug-in Type Optical Attenautor





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.





Features



  1. Zirconia sleeve
  2. Increases panel density and quick plug in installation
  3. New SC footprint for duplex and 4 way design, more compact for most patch
  4. Compliant with Bellcore GR-910-CORE
  5. Compliant with ROHS and IEC
  6. High precision attenuation value

  7. Low additional loss

  8. High durability

  9. High reliability and stability

  10. Connector type: FC, SC, LC, ST, FC/SC or other type



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃

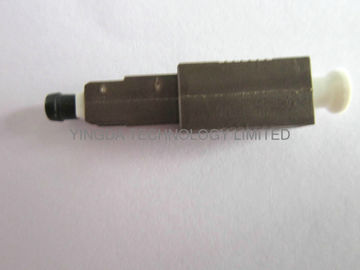

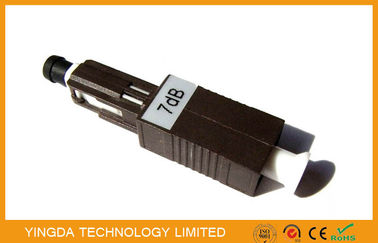

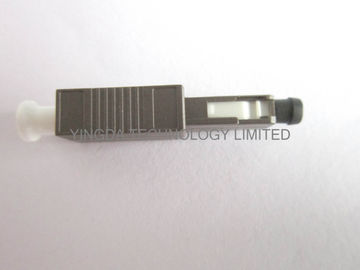

Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB 0Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB 1Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB 2Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB 3
