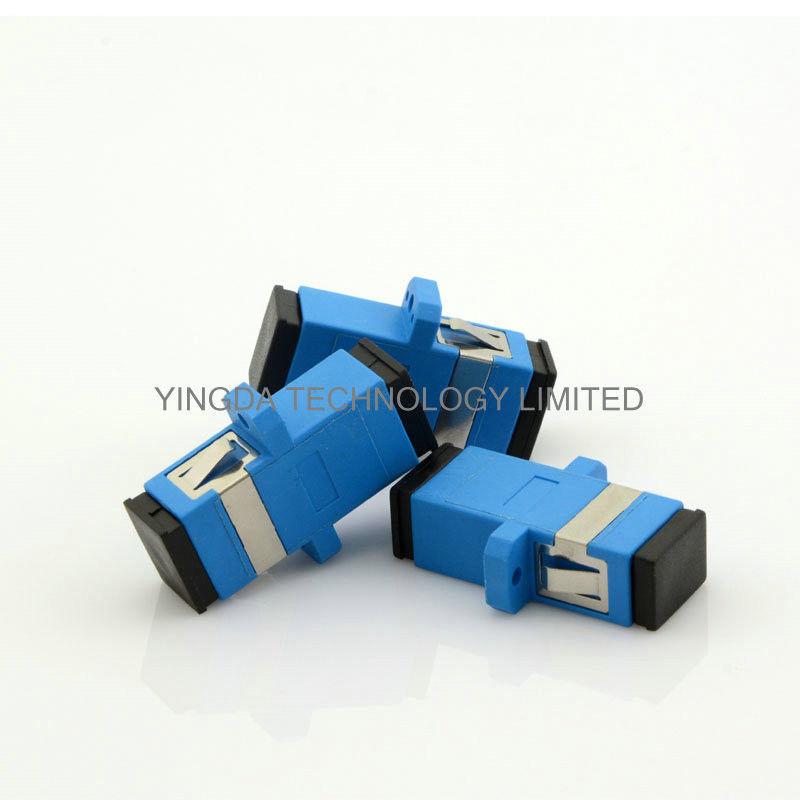

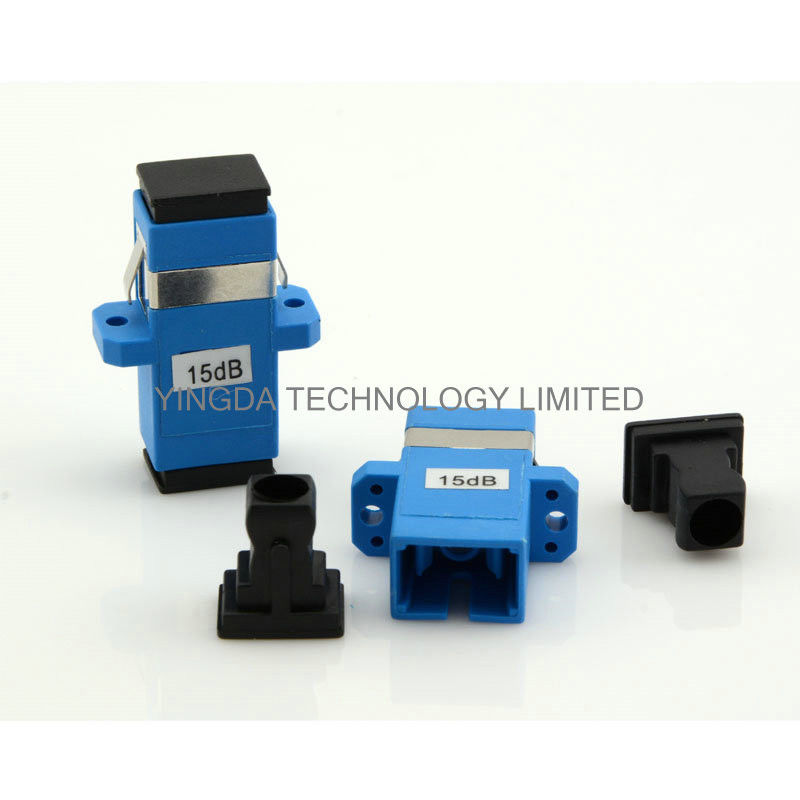

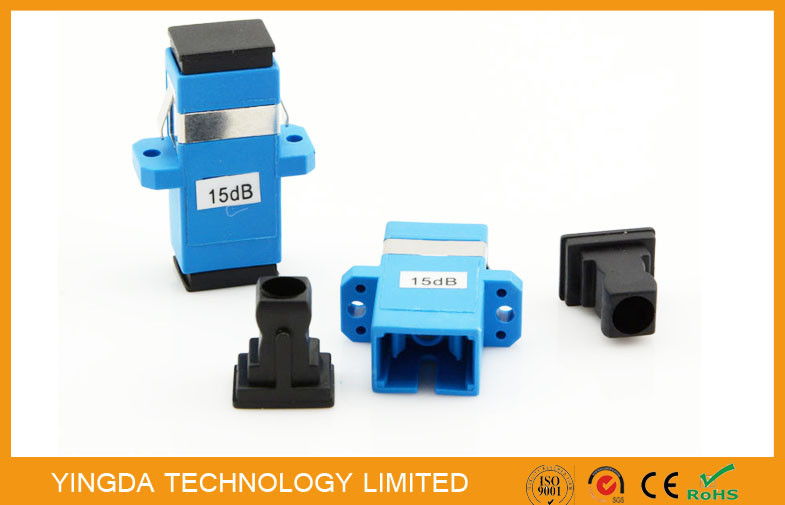

SC Fiber Optic Attenuator 15dB For PON Network 1200 - 1650nm

SC Fiber Optic Attenuator 15dB For PON Network 1200 - 1650nm

  • High Light

    build out attenuator

    ,

    inline optical attenuator

  • Attenuation
    15 DB
  • Wavelength Range
    1200-1650nm
  • Test Wavelength
    1310nm /1550nm
  • Material
    Plastic
  • Additional Loss
    0.2dB
  • Working Temperature
    -40~+75 (℃)
  • Fiber Optic Type
    Single-mode
  • Standard
    GR910, IEC
  • Connector
    SC FC LC ST E2000 MU For Choose
  • Connector Color
    Blue
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-SCS-01-B15
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    50 pc / plastic blister box or
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

SC Fiber Optic Attenuator 15dB For PON Network 1200 - 1650nm

CATV SC Attenuator 10 dB Optical Fiber Single Mode SM, SC FC LC ST MU





Fixed optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety

of optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the adapter

and attenuator both functions.



 Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical

fiber network system, the low speed optical fiber transmission system.



Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable

(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..



From the microwave network point of view, attenuator is a two port lossy microwave networks.

It belongs to pass type microwave components.





FEATURES

  • Wavelength Independent
  • Low ripple
  • Excellent environmental stability
  • Design certified to more than 200mW continuous
  • Power handling capacity with no degradation in performances
  • Backreflection performance to < -55dB available
  • for UPC and < -60dB available for APC
  • Polarization insensitive



APPLICATIONS

  1. Long Haul Telecommunication
  2. Fiber in the Loop (FITL)
  3. Local Area Networks (LAN)
  4. Cable TV & Video distribution
  5. Passive Optical Networks
  6. Network Testing



Specification



Parameter

Condition

Value [dB]

Min

Typical

Max

Attenuation





1 ~ 10







15, 20



Return Loss

SPC

> 40

> 45



UPC

> 50

> 55



APC

> 60

> 65



Attenuation Accuracy

1 ~ 10



±0.5



15 ~ 20



±1.0



Operating Wavelength [nm]

1310 / 1550

Operating Temperature

-40℃ ~ +85℃

Humidity

75℃, RH 95%
