FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing

FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing

  • High Light

    build out attenuator

    ,

    optical fiber attenuator

  • Attenuation
    5 DB
  • Wavelength Range
    1260-16500nm
  • Test Wavelength
    1310nm, 1550nm
  • Material
    Plastic PBT/ABS
  • Additional Loss
    0.2dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single Mode 9/125um
  • Standard
    GR910, IEC
  • Connector
    SC / PC
  • Connector Color
    Blue
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-SCS-01-B03
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    50 pc / plastic blister box or customized
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing

SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB, SC Adapter Attenuator 5dB





Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power

at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,

it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,

fiber optic attenuator name is based on the connector type and the attenuation level.



SC/PC 5dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can

reduce the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB,

and it is also available to provid upto 30dB.



FEATURES

  • Wavelength Independent
  • Low ripple
  • Excellent environmental stability
  • Design certified to more than 200mW continuous
  • Power handling capacity with no degradation in performances
  • Backreflection performance to < -55dB available
  • for UPC and < -60dB available for APC
  • Polarization insensitive



APPLICATIONS

  1. Long Haul Telecommunication
  2. Fiber in the Loop (FITL)
  3. Local Area Networks (LAN)
  4. Cable TV & Video distribution
  5. Passive Optical Networks
  6. Network Testing



Specification



Parameter

Condition

Value [dB]

Min

Typical

Max

Attenuation





1 ~ 10







15, 20



Return Loss

SPC

> 40

> 45



UPC

> 50

> 55



APC

> 60

> 65



Attenuation Accuracy

1 ~ 10



±0.5



15 ~ 20



±1.0



Operating Wavelength [nm]

1310 / 1550

Operating Temperature

-40℃ ~ +85℃

Humidity

75℃, RH 95%

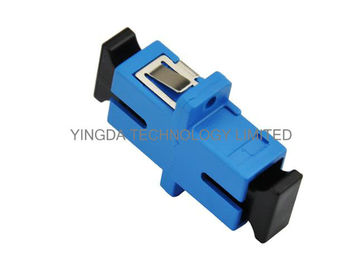

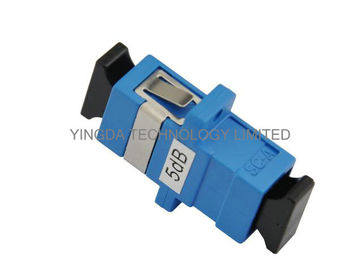

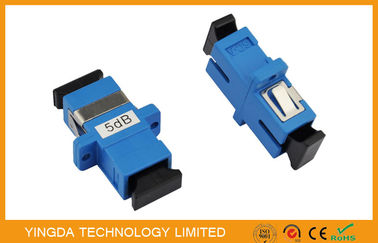

FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing 0FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing 1FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing 2
