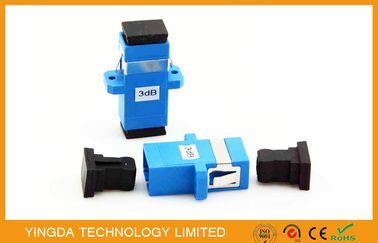

Plastic PBT Fixed  Fiber Optic Attenuator SC / UPC 3dB 5dB 10dB , SC 15dB Attenautor

Plastic PBT Fixed Fiber Optic Attenuator SC / UPC 3dB 5dB 10dB , SC 15dB Attenautor

  • High Light

    build out attenuator

    ,

    optical fiber attenuator

  • Attenuation
    3dB
  • Wavelength Range
    1260-16500nm
  • Test Wavelength
    1310nm, 1550nm
  • Material
    Plastic PBT
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single Mode 9/125um
  • Standard
    GR910, IEC
  • Connector
    SC/UPC
  • Connector Color
    Blue
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-SCS-01-B03
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    50 pc / plastic blister box or customized
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

Plastic PBT Fixed Fiber Optic Attenuator SC / UPC 3dB 5dB 10dB , SC 15dB Attenautor

SC Fiber Optic Attenuator SC/PC SC/UPC 3dB 5dB 10dB, Fixed Attenautor SC 15dB





Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power

at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,

it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,

fiber optic attenuator name is based on the connector type and the attenuation level.



 SC 3dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can reduce

the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB, and it is

also available to provid upto 30dB.





Main features

  • Connector style available in LC, FC, SC, ST and MU
  • High performance unit
  • Stable attenuation values
  • Customized to your volume requirements
  • Environmental stable



Applications



  1. Fiber in The Loop. (FITL)
  2. Passive Optical Networks
  3. Fiber to the Home. (FTTH)
  4. Test equipments
  5. LANs
  6. CATV
  7. Video distribution



Specifications



Operating Wavelength

SM:1200~1600nm, 1310nm, 1550nm, 1310/1550nm;

MM: 850nm, 1300nm



Attenuation Value

1~30dB

Connector Type

 FC, SC, LC, ST, MU, E2000, MTRJ

Return Loss

PC ≥50dB; UPC ≥55dB; APC≥ 65dB

Attenuation Accuracy

1~10dB ≤ ± 0.5dB; 11~20dB ≤ ± 1.0dB; 21~30dB ≤ ± 2.0dB

Maximum Optical Input Power

200mW

Operating Temperature

-40℃ ~ + 75℃

Storage Temperature

-40℃ ~ + 75℃
