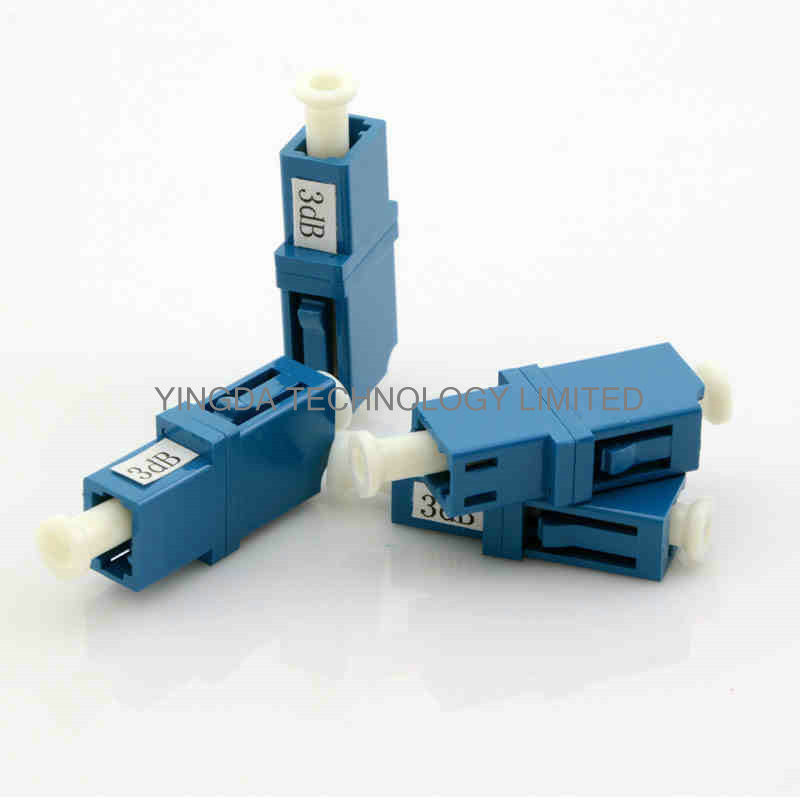

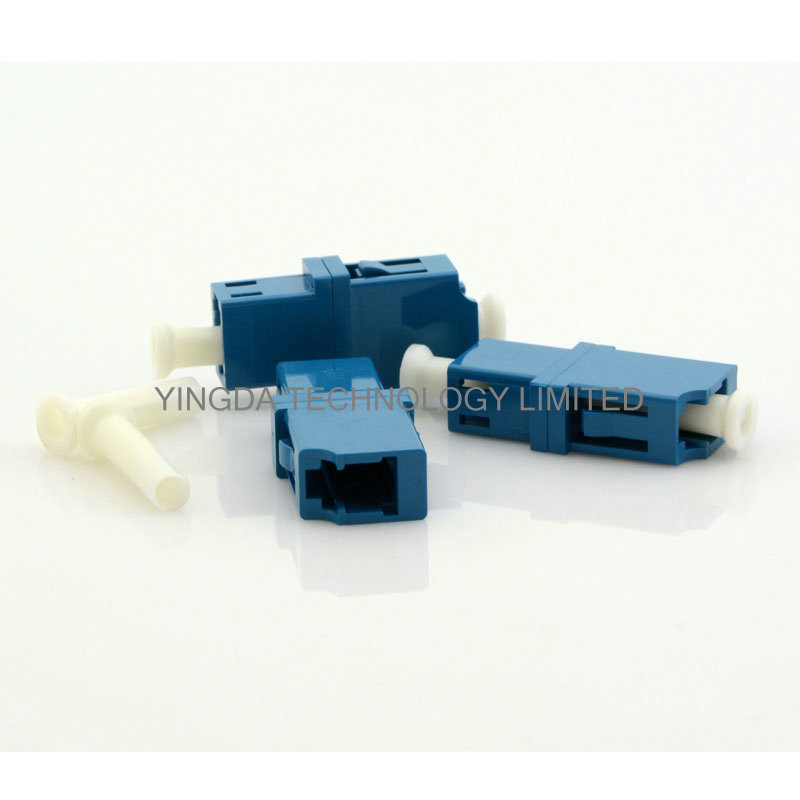

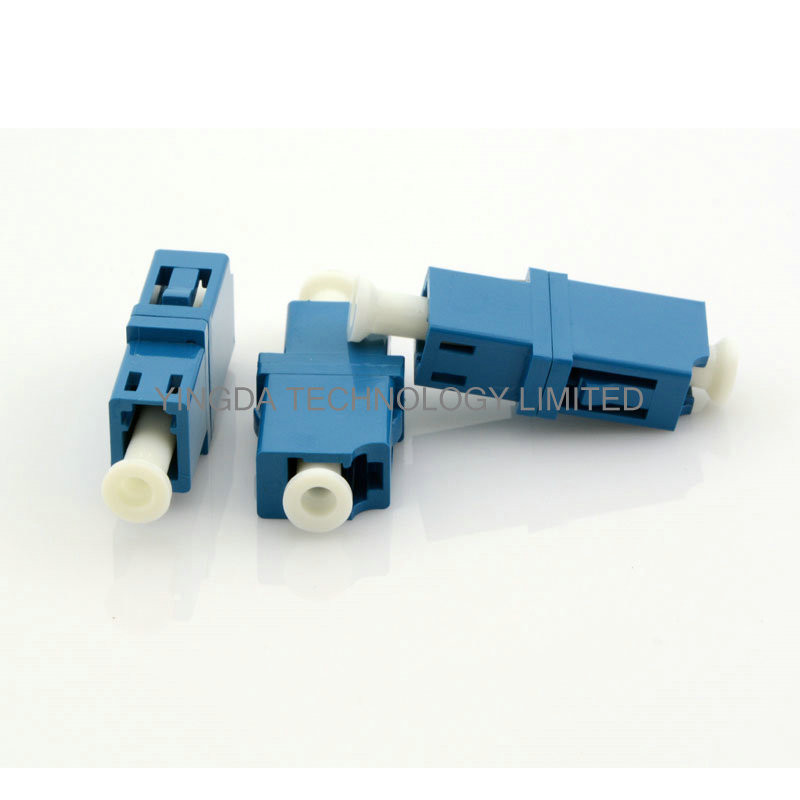

Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight

Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight

  • High Light

    optical fiber attenuator

    ,

    inline optical attenuator

  • Attenuation
    3dB
  • Wavelength Range
    1260-16500nm
  • Test Wavelength
    1310nm, 1550nm
  • Material
    Metal
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single Mode
  • Standard
    GR910, IEC
  • Connector
    LC/UPC
  • Connector Color
    Blue
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-LCS-01-B03
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    50 pc / plastic blister box or customized
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight

LC Fixed Attenuator PC 3dB Singlemode, Fiber Optic Attenuator LC 3dB IEC Standard





Optical attenuator is a kind of precise instrument which provide different attenuation values according

to the need of the project. Attenuation method of the product are: attenuate through the gap between

the optical fiber, attenuate according to The contact part of the leaky, and attenuate according to

attenuation fiber.



Features

  1. Conforms to GR910, accord with IEC standard
  2. Various attenuation way, all kinds of connectors available
  3. Low insertion loss and additional loss
  4. High attenuation accuracy
  5. High return loss, compact size, light weight
  6. High stability, high reliability



Application

  • Optical fiber communication system
  • Fiber optic data communication network
  • Optical fiber CATV network
  •  Other optical testing technology



Specification

Item

Attenuation/dB

Precision

 error (dB)

Working

wavelength

Return

loss(dB)

Connector type

Coupler type

1—2

≤±0.25dB

1310nm/1550nm

≥35dB

FC;SC/PC

3—15

≤±10%dB

1310nm/1550nm

≥35dB

FC;SC/APC

15-30

≤±1.5dB

1310nm/1550nm

≥35dB

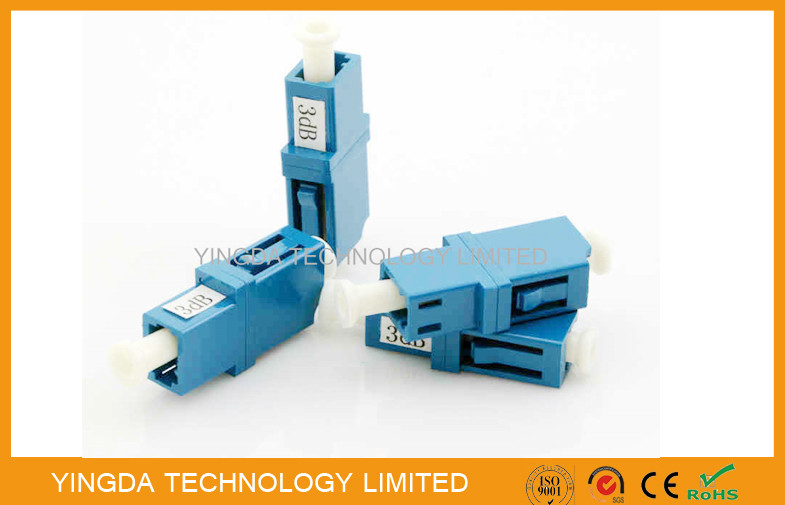

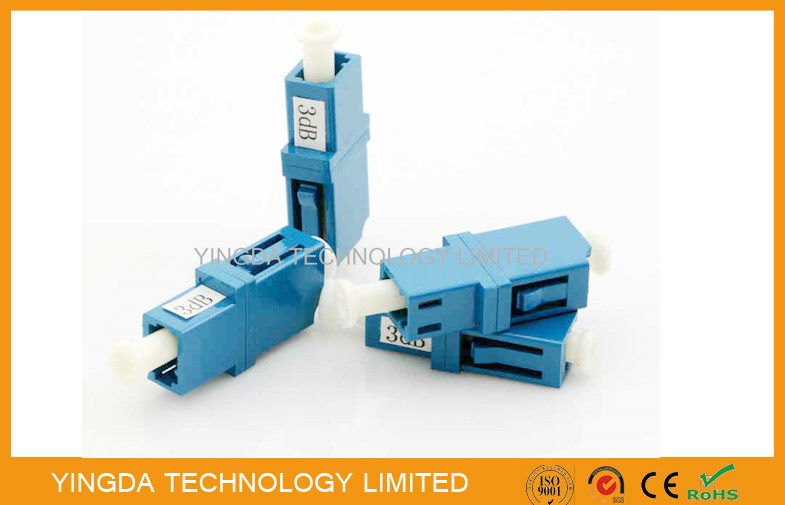

Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight 0Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight 1
