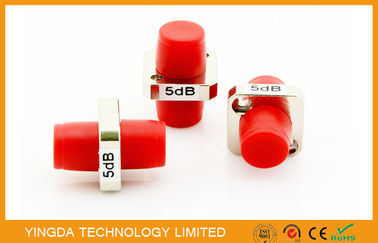

FC / PC Female to Female Fiber Optic Coupler Flange Attenuator 5dB Single Mode

FC / PC Female to Female Fiber Optic Coupler Flange Attenuator 5dB Single Mode

  • High Light

    optical fiber attenuator

    ,

    inline optical attenuator

  • Attenuation
    5 DB
  • Wavelength Range
    1260-16500nm
  • Test Wavelength
    1310nm, 1550nm
  • Material
    Metal Zinc Alloy Or Copper
  • Additional Loss
    0.1dB
  • Working Temperature
    -40~+85 (℃)
  • Fiber Optic Type
    Single Mode
  • Standard
    GR910, IEC
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ATTN-FCS-01-R05
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / plastic bag
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

FC / PC Female to Female Fiber Optic Coupler Flange Attenuator 5dB Single Mode

FC / PC Female to Female Attenuator, Fiber Optic Coupler Attenuator 5dB





Optical adapter flange type attenuator is used for attenuation of optical power device, which is

mainly used for index measurement, short distance communication system fiber signal attenuation

and  test and other occasions.



Optical fiber attenuator as a kind of optical passive device, debug the optical power, debug optical

instrument calibration, and use for optical signal attenuation. It is made of attenuation optical fiber

which mix with metal ions, so it can adjust the light power to the required level.





Specification

  1. Wavelength: 1260~1620nm
  2. Initial Insertion Loss < 1.0dB
  3. Attenuation Range:1dB-60dB
  4. Fiber: SMF-28e
  5. Cable option: bare fiber/0.9mm loose tube/2mm cable
  6. Connector Option: FC/SC/LC.etc.



Order information





Fibery type

Cable diameter

Fiber length

Connector type



A=SM

S=customer specify

3=3mm fiber

2=2mm fiber

09=900 loose tube

S=customer specify

01=1M

02=2M

S=customer specify

0=None

1=FC/PC

2=FC/APC

3=SC/APC

4=SC/PC

5=ST

6=LC

7=customer specify
