Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua

Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua

  • High Light

    fiber optic coupler

    ,

    fiber optic adaptor

  • Fiber Count
    Quad 4 Fibers
  • Connector Material
    Plastic
  • Adapter Color
    Aqua, Blue,green
  • Sleeve Material
    Ceramic
  • Fiber Type
    Single-mode, Multimode
  • Polish Mode
    UPC, SPC, APC
  • Working Temperature
    -40 ~ +85 °C
  • Wavelength
    1310nm/1550NM/850NM
  • House Material
    PBT / ABS
  • Connector
    SC
  • Flange
    No Have
  • Application
    Adapter Panel, ODF Frame, Rack, Cabinet, Closure Etc
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-LCM3-04
  • Minimum Order Quantity
    1000pcs
  • Price
    Negotiable
  • Packaging Details
    50cs / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua

Fiber Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua Fiber Adapter





Description



Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.

 This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.

 Additionally, these couplers can be used with PC or UPC style fiber connectors.



Simplex, duplex and quad adapters are available in plastic, with or without flanges, and in horizontal and

vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options

available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:

blue, beige, aqua, green,etc.





Features

  1. Insertion loss <0.2dB
  2. Durability >1000 times
  3. Used to connect either PC or UPC polished SC Fiber cables
  4. Plastic body provides a light weight yet durable solution
  5. Stainless steel mounting clips allow for easy snap in installation
  6. Ceramic alignment sleeve supports Single mode applications
  7. 100% test in factory



Specification



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





Order information

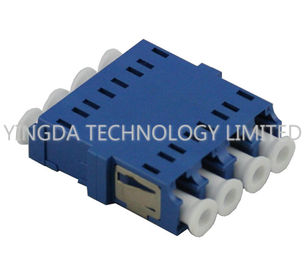

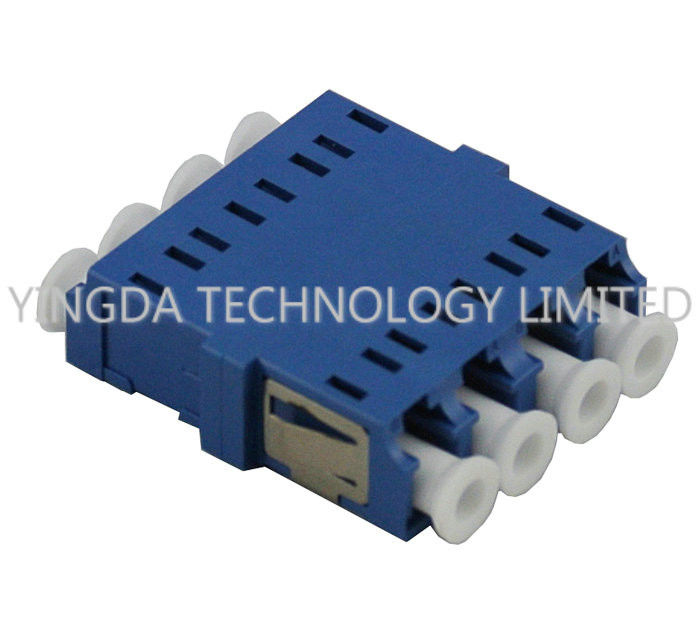

  1. LC Quad Singlemode Adapter w/o flange (blue)

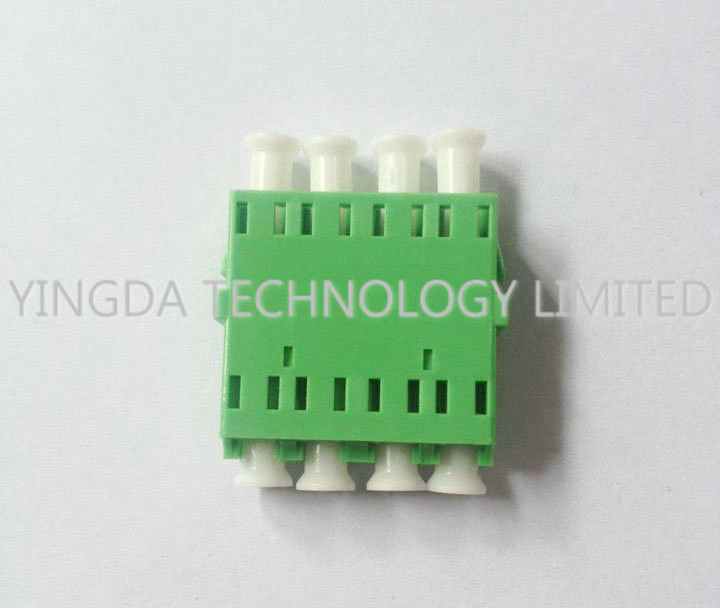

  2. LC/APC Quad Singlemode Adapter w/o flange (green)

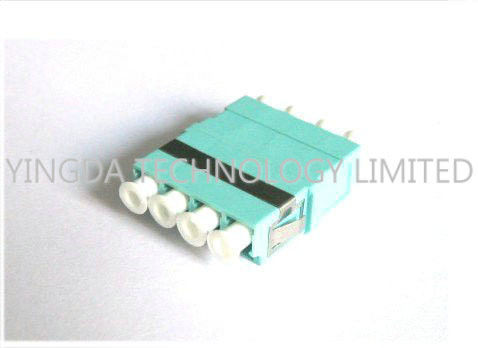

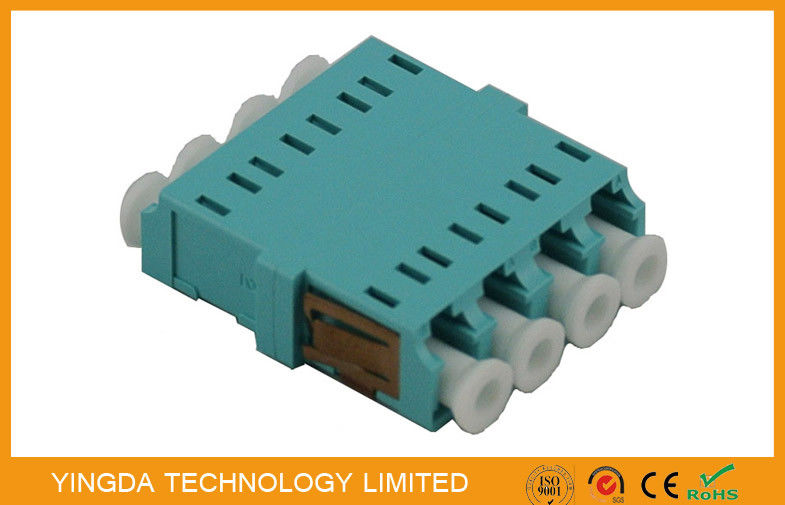

  3. LC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
  4. LC Quad Multimode Adapter w/o flange (beige)



More product show



Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua 0



LC duplex short flange, no ear LC SM MM OM3 fiber optic adapter can be choosed too, check below:



Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua 1Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua 2
