Single - mode Duplex Optic Fiber Adapter SC / UPC With Stainless Steel Clip

Single - mode Duplex Optic Fiber Adapter SC / UPC With Stainless Steel Clip

  • High Light

    fiber optic coupler

    ,

    fiber optic adaptor

  • Fiber Count
    Simplex
  • Connector Material
    Plastic
  • Adapter Color
    Blue
  • Sleeve Material
    Ceramic
  • Fiber Type
    Single-mode
  • Polish Mode
    UPC, SPC
  • Working Temperature
    -40 ~ +85 °C
  • Wavelength
    1310nm
  • House Material
    PBT / ABS
  • Connector
    SC
  • Flange
    Full Flange
  • Application
    Adapter Panel, ODF Frame, Rack, Cabinet, Closure Etc
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-SCS-01
  • Minimum Order Quantity
    1000pcs
  • Price
    Negotiable
  • Packaging Details
    50cs / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

Single - mode Duplex Optic Fiber Adapter SC / UPC With Stainless Steel Clip

SC SM SX Adapter 9/125um Blue, Full Flange SC/UPC Single-mode Simplex Ceramic Ferrule Adapter





This coupler provides a solution for extending a current run of fiber optic cabling. This coupler is

constructed from high-grade plastic and has been designed and engineered for durability and

a long life.





Adatper Advantage:

  • Telcordia GR-326, IEC, TIA/EIA Standard compliant.
  • 100% Optical performance inspection.
  • Low Insertion Loss.
  • RoHS Compliance.
  • Customized design and production.



Material List:

  1. Sleeve: Ceramic or PB
  2. Housing: PC , Flammability UL94 V-0
  3. Dust cap: PVC, Flammability UL94 V-0
  4. Clip:s tainless steel





Optical characteristic



Optical Performance



Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times



Environment and Mechanical Properties



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling

Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB

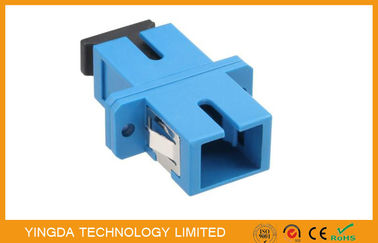

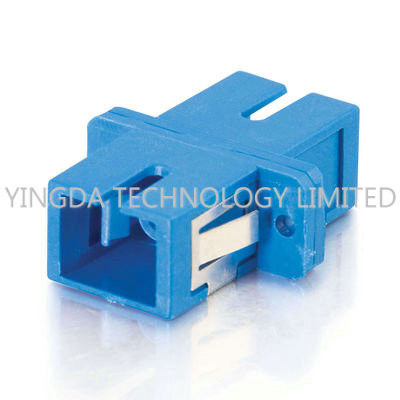

Single - mode Duplex Optic Fiber Adapter SC / UPC With Stainless Steel Clip 0Single - mode Duplex Optic Fiber Adapter SC / UPC With Stainless Steel Clip 1
