ST , SC , MT-RJ- or LC - type Fiber Optic Adapter , Standard Square Connector

ST , SC , MT-RJ- or LC - type Fiber Optic Adapter , Standard Square Connector

  • High Light

    fiber optic adaptor

    ,

    bare fiber adapter

  • Fiber Count
    Duplex
  • Connector Material
    Plastic
  • Adapter Color
    Blue
  • Sleeve Material
    Ceramic
  • Fiber Type
    Single-mode
  • Polish Mode
    UPC, SPC
  • Working Temperature
    -40 ~ +85 °C
  • Wavelength
    1310nm
  • House Material
    PBT / ABS
  • Connector
    SC
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-SCS-02
  • Minimum Order Quantity
    1000pcs
  • Price
    Negotiable
  • Packaging Details
    20 pc / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

ST , SC , MT-RJ- or LC - type Fiber Optic Adapter , Standard Square Connector

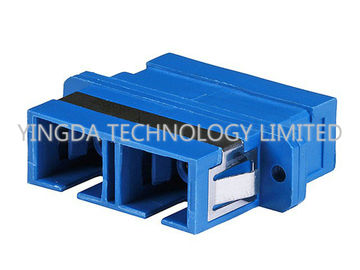

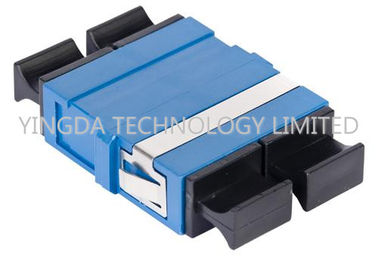

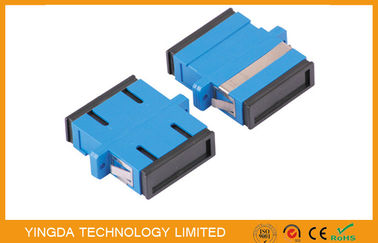

SC/UPC single-mode duplex optic fiber adapter, SC Duplex Coupler Adapter





Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a

cable to cable fiber connection.. Yingda connector adapters are used to connect the same type

fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.

We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ

style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber

adapter plates for ST-, SC-, MT-RJ- or LC-type connections.



SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability,low insertion loss
  4. Easy to use,plug
  5. Application: FTTH,CATV,Telecommunications,etc
  6. 100% test in factory
  7. High quality blister box package
  8. Customer label with logo ok
  9. Insertion loss<0.2dB



Specification



Wavelength

1200-1600nm

Polish method

UPC,PC,APC

Insertion loss

≤0.2dB

Max.Insertion loss

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000



Order information

  1. Connector type: SC/UPC, SC/PC, SC/APC
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
