ABS LC UPC SM SX LC / PC Fiber Optic Adaptor  Simplex Single Mode Coupler

ABS LC UPC SM SX LC / PC Fiber Optic Adaptor Simplex Single Mode Coupler

  • High Light

    fiber optic coupler

    ,

    bare fiber adapter

  • Fiber Count
    Duplex
  • Connector Material
    Plastic
  • Adapter Color
    Green
  • Sleeve Material
    Ceramic
  • Fiber Type
    Singlemode
  • Polish Mode
    APC
  • Working Temperature
    -40 ~ +85 °C
  • Wavelength
    1310nm, 1550nm
  • House Material
    PBT
  • Connector
    SC
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-SCA-02
  • Minimum Order Quantity
    1000pcs
  • Price
    Negotiable
  • Packaging Details
    25 pc / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

ABS LC UPC SM SX LC / PC Fiber Optic Adaptor Simplex Single Mode Coupler

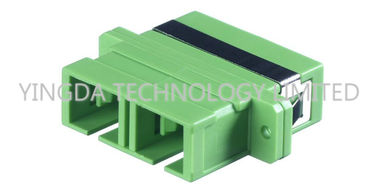

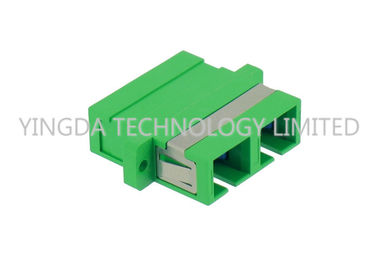

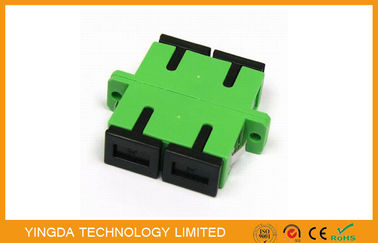

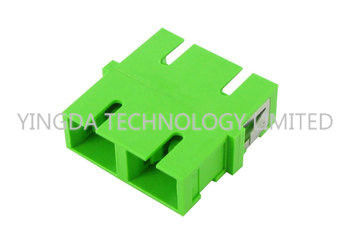

Fiber Optic SC - SC Duplex Singlmode Adapter, SC/APC Fiber Coupler Green PBT





This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted

by the pin and the structure of the coupling sleeve size and FC are exactly the same, The end face

of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,

does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in

loss, high compressive strength, high density installation.



SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant, not easy to oxidation. Transmission equipment generally use SC connectors.





Adapter drawing



ABS LC UPC SM SX LC / PC Fiber Optic Adaptor  Simplex Single Mode Coupler 0





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability,low insertion loss
  4. Easy to use,plug
  5. Application: FTTH,CATV,Telecommunications,etc



Specification



Wavelength

1200-1600nm

Polish method

UPC,PC,APC

Insertion loss

≤0.2dB

Max.Insertion loss

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000



Order information



  1. Connector type: SC/UPC, SC/PC, SC/APC
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
