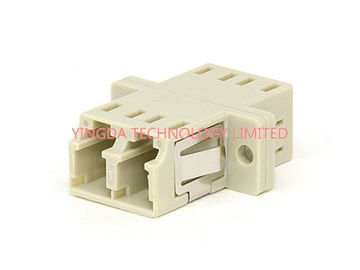

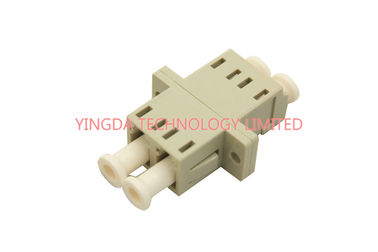

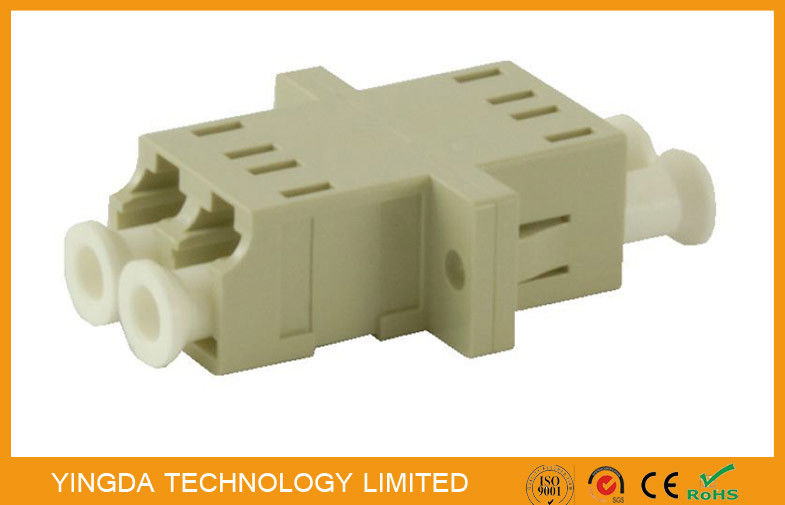

LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor

Basic Information
Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: AD-LC-DX
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 50 pc / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Contact Now
Detail Information
Fiber Count: Duplex Connector Material: Plastic
Adapter Color: Beige Sleeve Material: Ceramic
Fiber Type: Mulitmode 50/125um Polish Mode: PC
Working Temperature: -40 ~ +80 °C Wavelength: 850nm
Appliction: Adapter Panel, LGX Panel, Rack Mount Panel

Product Description

LC Multimode Adapter Coupler Duplex Ceramic Ferrule, LC Fiber Adaptor





Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be

 inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.



Adapter Structure



LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor



Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall





Application

  • CATV network, FTTH, Telecommunication,etc



Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85





Order information



  1. Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
  5. Polish: UPC PC APC SPC



LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber AdaptorLC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber AdaptorLC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber AdaptorLC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber AdaptorLC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor
