Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex

Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex

  • High Light

    fiber optic coupler

    ,

    fiber optic adaptor

  • Fiber Count
    1 Fibers
  • Connector Material
    Metal + Plastic
  • Dustcap Color
    White
  • Sleeve Material
    Ceramic
  • Fiber Type
    Single Mode SM
  • Polish Mode
    UPC / PC
  • Working Temperature
    -40 ~ +80 °C
  • Wavelength
    1310/1550nm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-FC-SM01-W
  • Minimum Order Quantity
    500pcs
  • Price
    Negotiable
  • Packaging Details
    50 pc / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

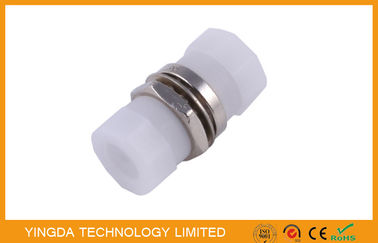

Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex

Fiber Optic Coupler FC SM SX, Fiber Adapter FC /PC D Type Metal Simplex





Fiber Optic Adapter (also called fiber opptic coupler), is a kind of connector in optical fiber transmission,

whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,

MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),

optical Fiber communication equipment, instruments, etc.It is superior performance, stable and

reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.



FC type



The earliest connector was developed by NTT, Japan. The abbreviation of FC is ferrule connector,

which indicates that its external strengthening way is to use metal sleeve, fastening way as the turn

buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has

simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone

to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type

of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the

insertion loss and return loss performance has improved significantly.



Features



  • Low insertion loss< 0.2 dB
  • zinc alloy or copper material
  • Good interchangeability
  • Good repeatability
  • 100% test in factory
  • Blister box or plastic bag pack



Application

  1. optical fiber communication system
  2. cable TV network
  3. local area network (LAN), optical network domain
  4. optical fiber to the home (FTTP)
  5. video transmission
  6. test instruments



Specification



Item

Value

Wavelength

1200-1600nm

Polish method

UPC,PC,APC

IL

≤0.2dB

Max. IL

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000

Standard

Bellcore TA-NWT-001221/001209



Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze

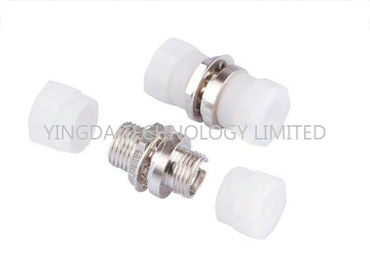

FC Adapter Small D hole More Details:
